Catrike Max eCat with Bosch BES3 Recumbent Trike
Catrike Max eCat with Bosch BES3 Recumbent Trike
SKU:210000018363
In stock
Couldn't load pickup availability
Have a question about this product?
Have a question about this product?
Share

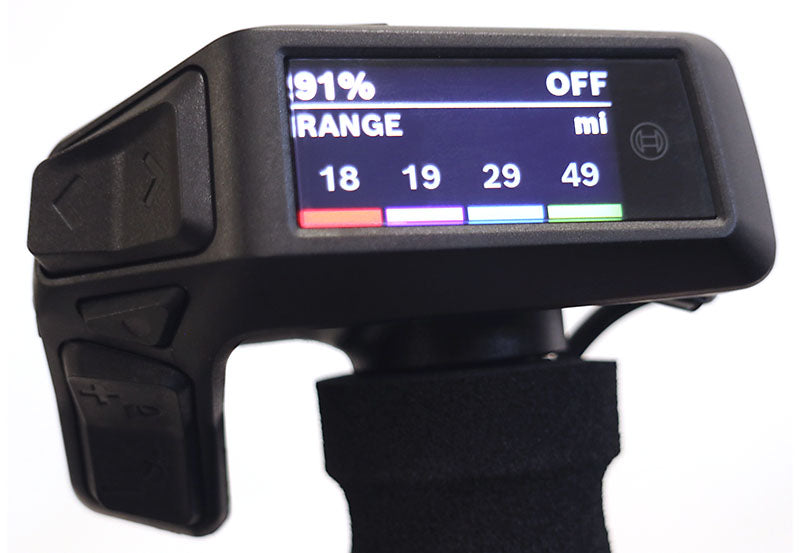

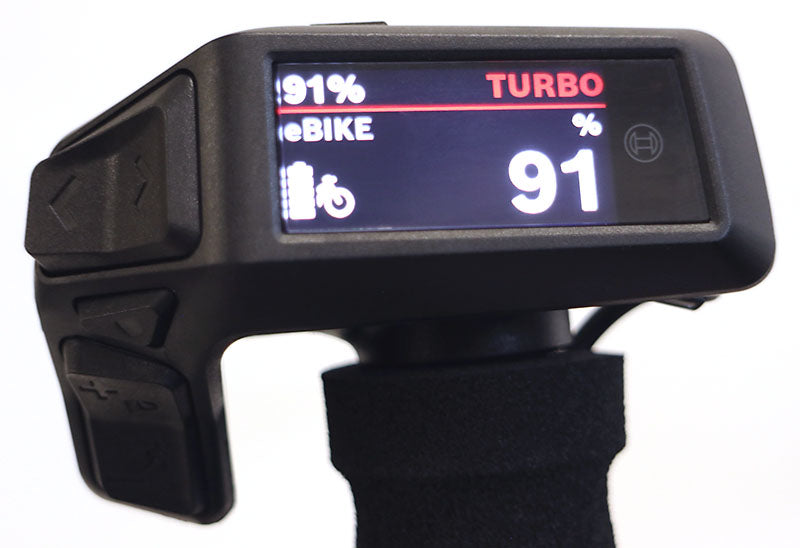

Catrike introduces the 2025 Max eCat with the Bosch ActiveLine Plus electric assist motor, which delivers active and sporty acceleration even at low cadences, and offers powerful assistance as soon as you step on the pedals. In addition, the system’s multi-sensor technology and fast information processing ensure optimum interaction between you and your eCAT. The 2025 Max eCat features the customizable BES3 Smart System, providing you with extra power, extra features, and custom programming via the eBike Flow app, as well as giving you maximum comfort and riding enjoyment. The new handlebar-mounted Bosch Purion 200 Color Display/Controller provides ride data such as speed, cadence, miles and range, and lets you control the assist level, the SUPERNOVA integrated lights, and also access the Hill Hold feature and the smart Walk Assist. Use the eBike Flow phone app to customize your assist settings and also access Navigation, the eBike Lock, and Theft Protection (eBike Alarm requires the optional Connect Module to be installed, and Flow+ subscription). The super-quiet MAX eCAT is made with Bosch components and meets or exceeds all current safety standards and is UL2849 certified.

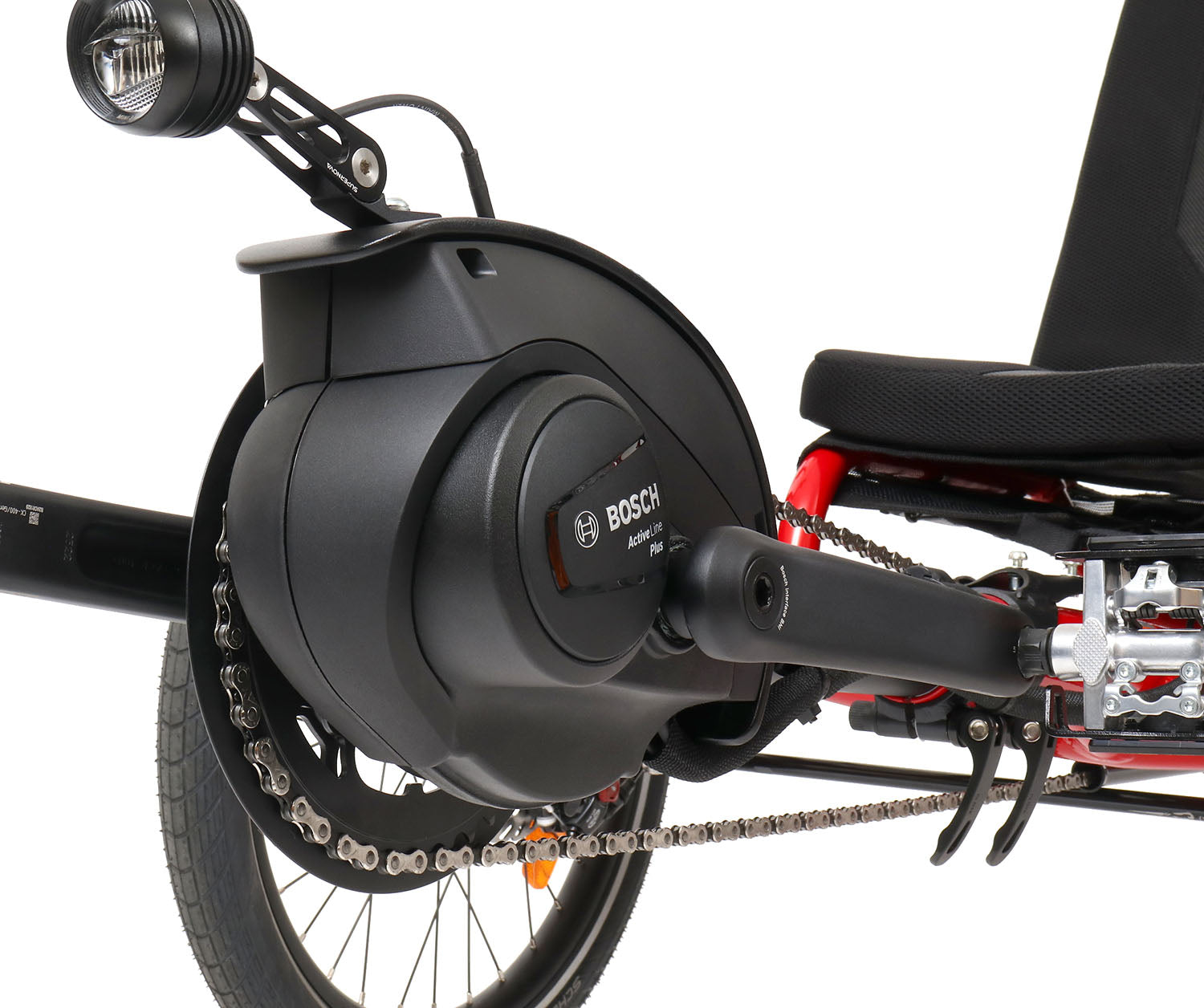

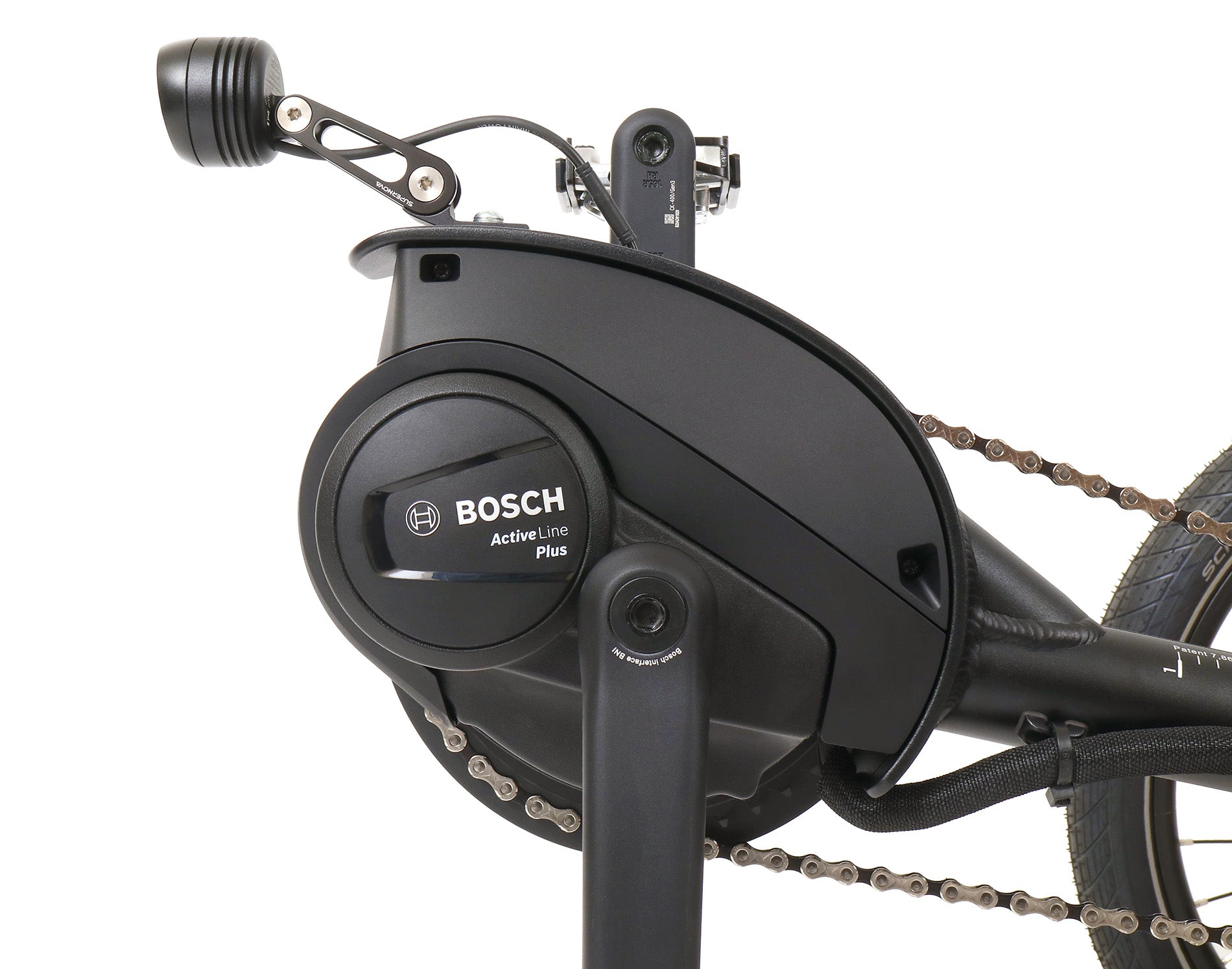

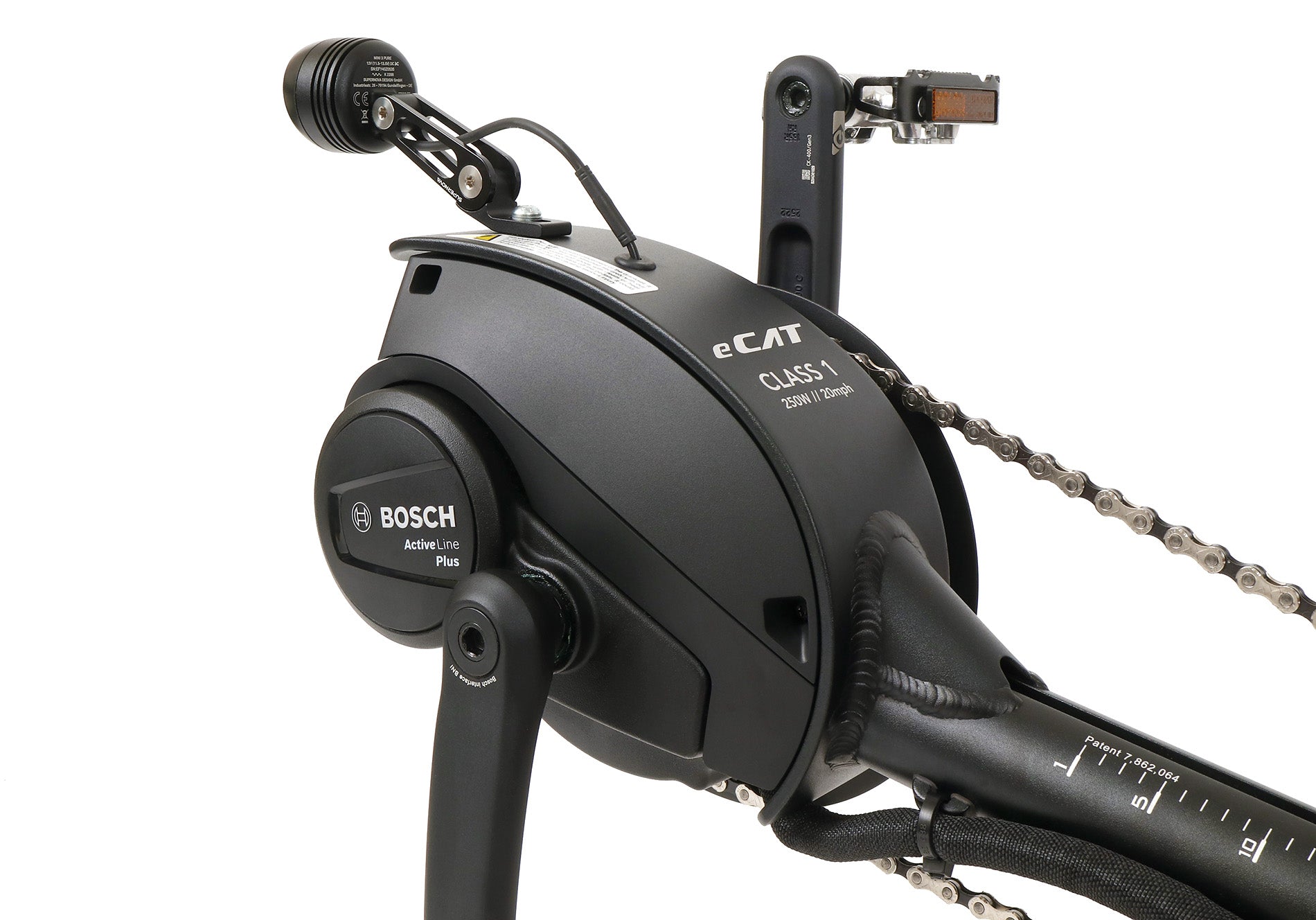

The Bosch ActiveLine Plus motor features four customizable levels of power assistance: Eco, Tour, Sport, and Turbo which now reaches an impressive 340% assist. Each level also features a maximum drive torque to ensure smooth acceleration. The Bosch Active Line Plus delivers 50 Nm of torque at 250 watts continuous output for assistance up to 20 mph at a cadence of 105. Built for both derailleur based drivetrains and hub gear systems, the ActiveLine Plus motor features gear shift detection when coupled to derailleur drivetrains to provide seamless power through the full range of gears.

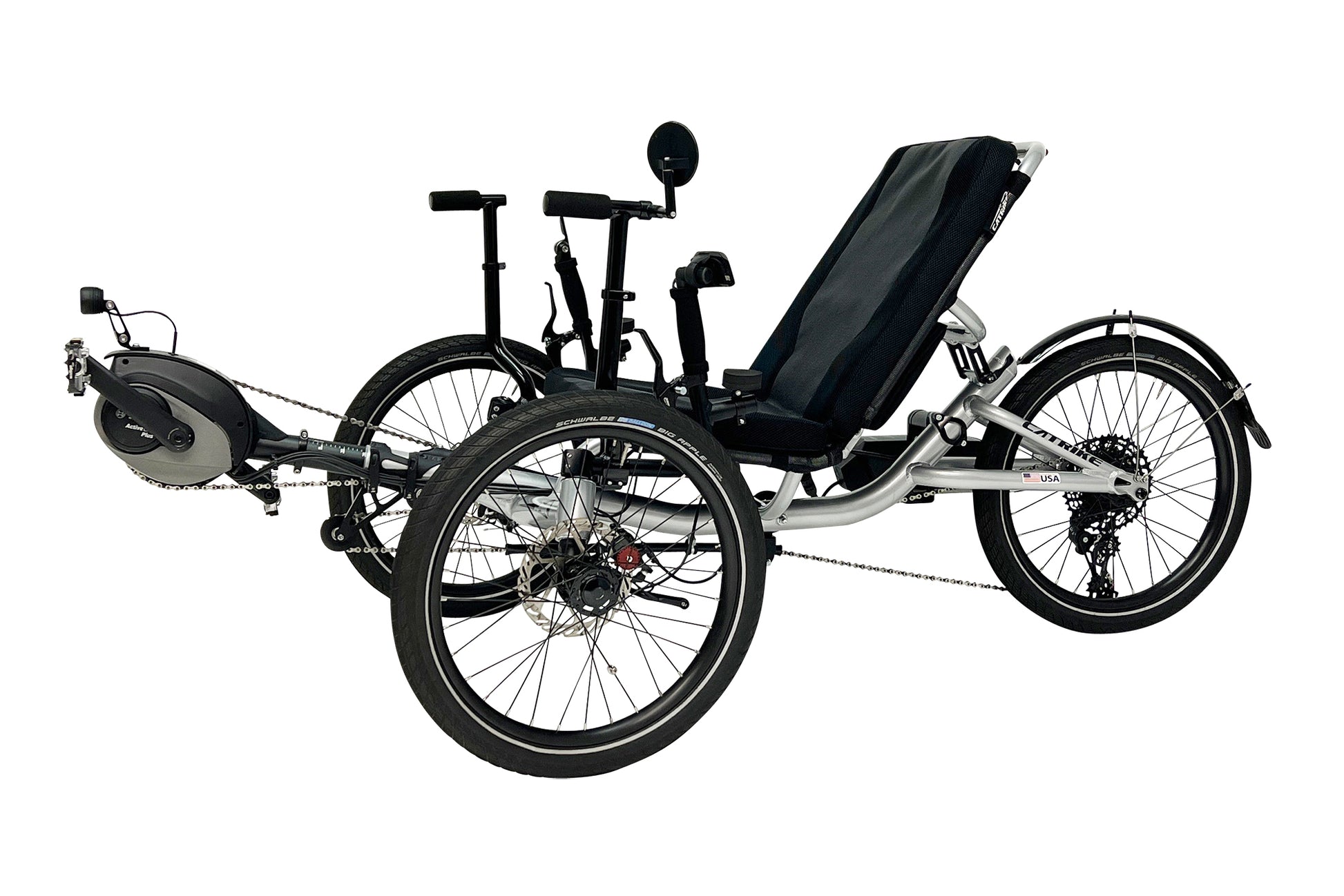

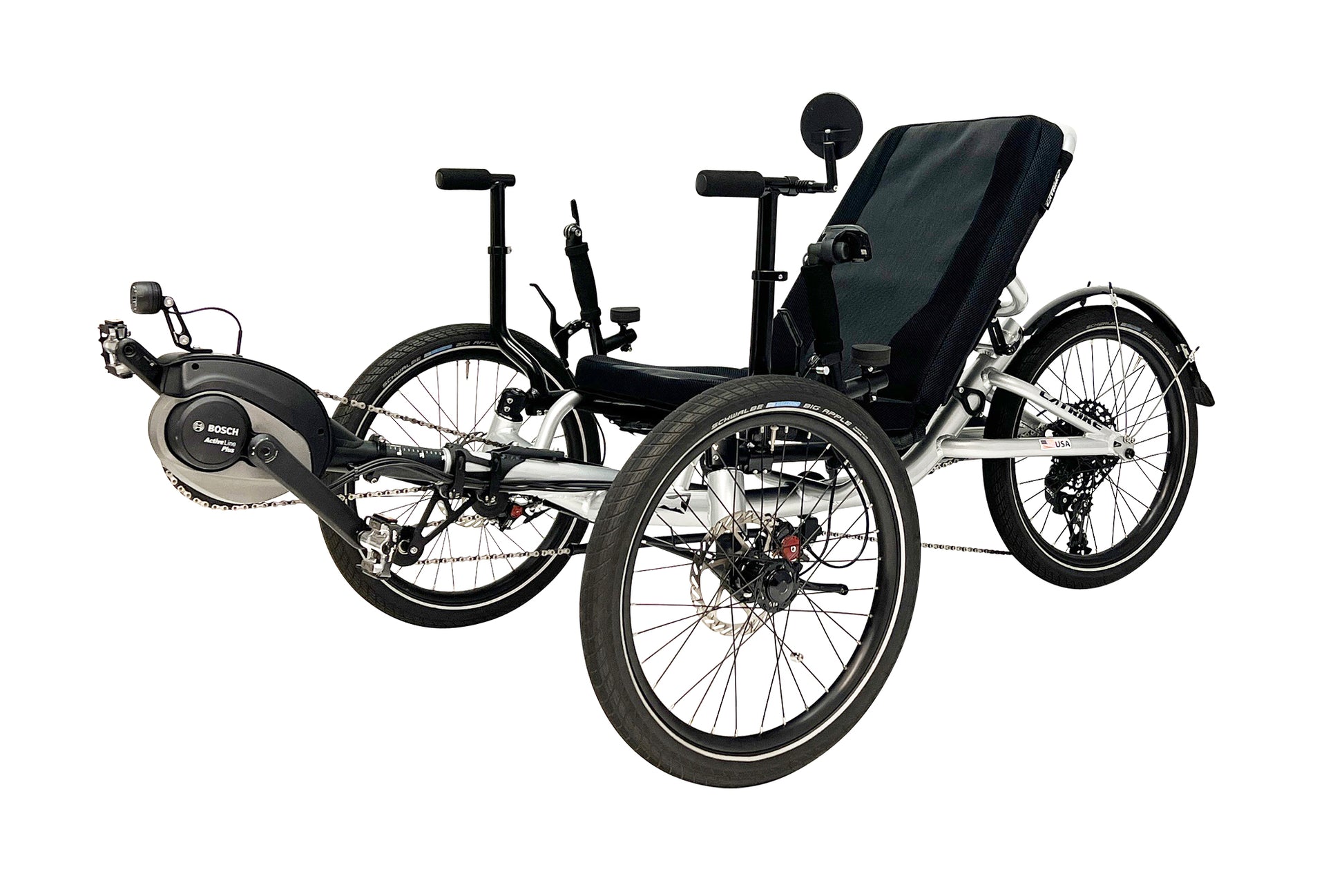

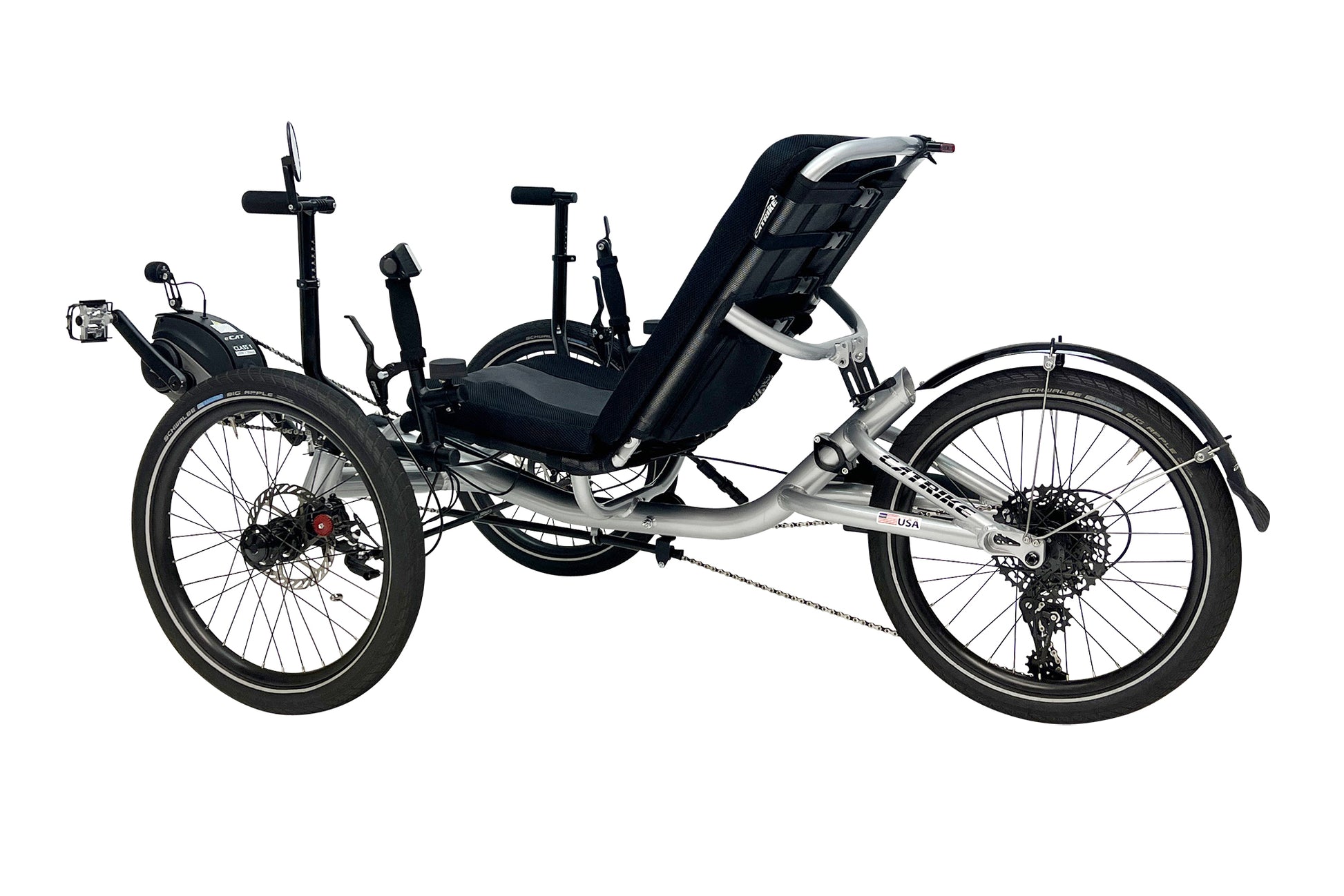

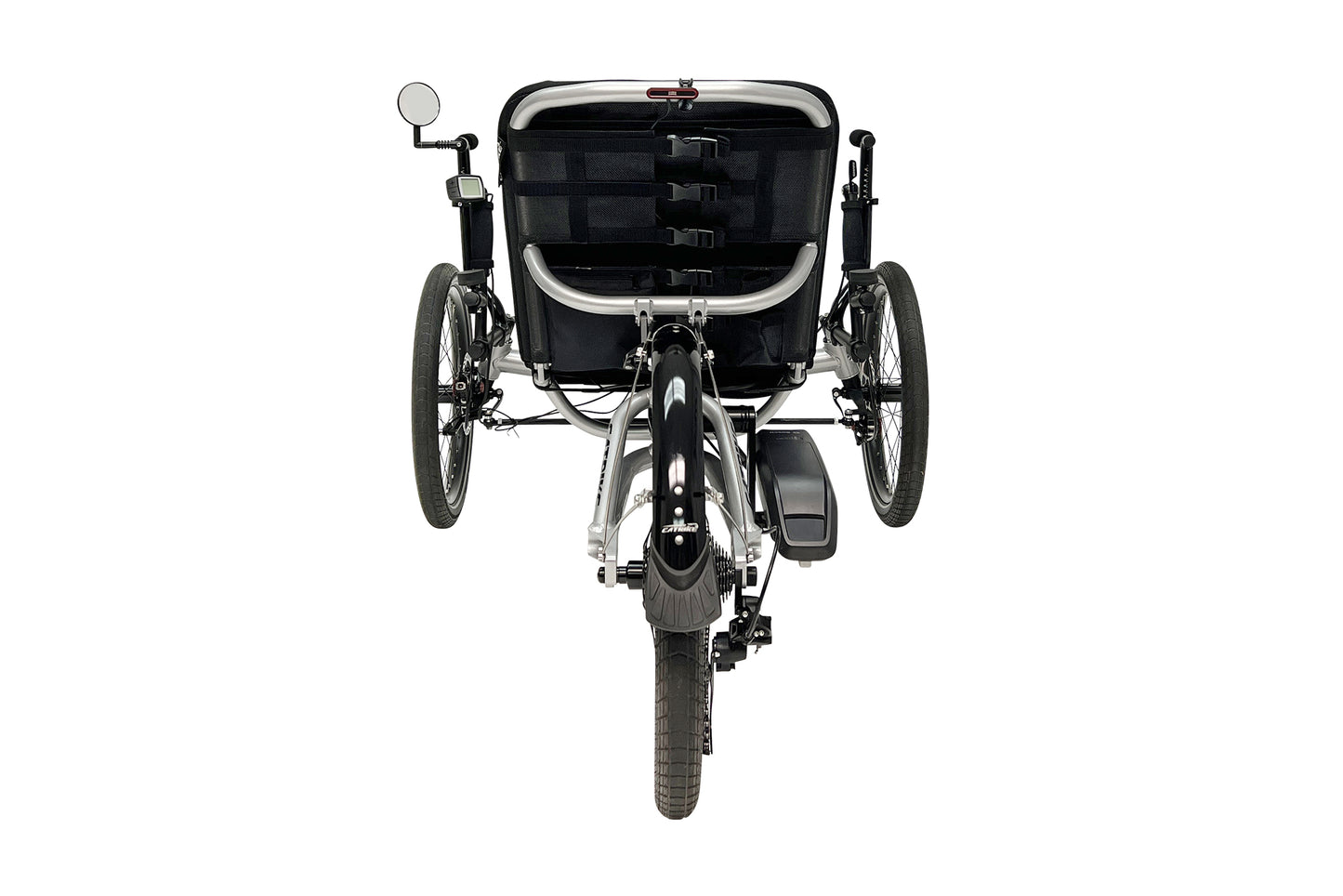

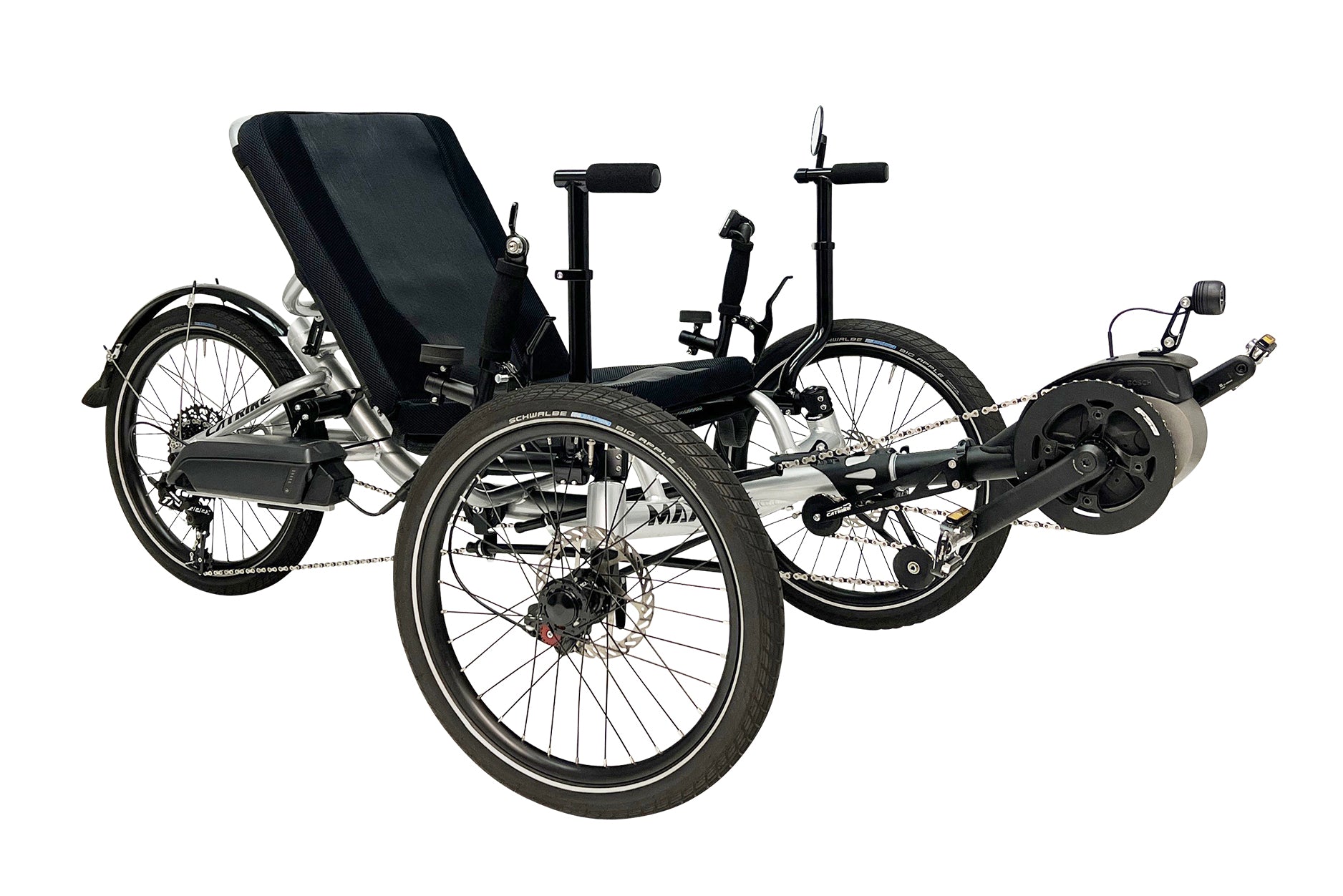

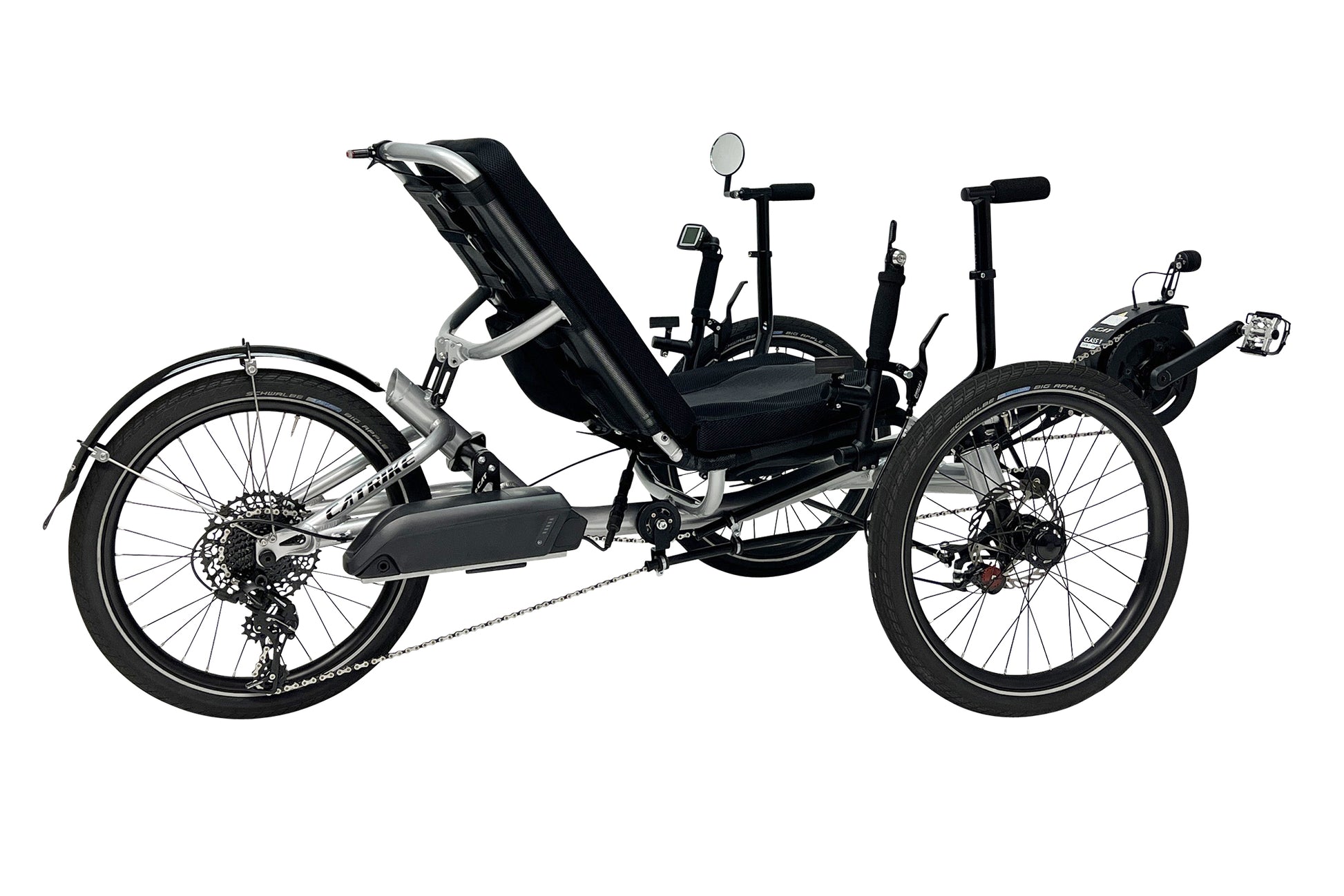

The Catrike MAX is designed with a higher and wider 16 inch seat and incorporates a larger diameter Cross-Member and wide sturdy rims to accommodate 425 lbs of rider weight and gear. The MAX also sports a wider 34” track for a comfortable, roomier cockpit. In addition, it is equipped with Schwalbe Big Apple tires, 1x11 SRAM drivetrain, and the new Catrike Assist Bars that help support the rider when getting in and out of the seat. It is the most robust model in the Catrike line and has all the features you have come to expect on a Catrike: Avid disc brakes, signature hand rests, Catrike Peace Boom, adjustable seat angle, locking brake levers and Ackerman Steering. Enjoy fun, adventures, and freedom aboard the Catrike MAX!
The MAX eCAT comes stock with the amazing SUPERNOVA Light System. Powered directly by your eCAT, SUPERNOVA is at the forefront of award-winning design and technology for bicycle safety lighting systems. The eCAT light system includes the SUPERNOVA MINI 2 headlight and brake-sensing TL3 PRO taillight to help keep you visible day and night without charging separate batteries.
Included Accessories
- SUPERNOVA MINI 2 headlight and TL3 PRO taillight included
- New adjustable Catrike Assist Bars to aid in getting and out
- Platform Pedals (one side) / SPD compatible clipless pedals (other side)
- Left-side Mirror
- Rear Fender
- Flag Mount
- Proprietary Catrike Handrests
- Parking Brake Levers
Standard Features
- Powerful Bosch Active Line Plus BES3 (Class 1) Electic-Assist
- Increased 425 pound weight capacity
- Larger padded Seat with Ergonomic adjustable seat back
- Wider 34" track with Self Centering steering with no Brake Steer
- Ackerman Steering Compensation - Different turn radius for inside and outside wheel
- Larger diameter cross-member and Anodized Front Boom with adjustment scale
- Heavier duty rims and wide Schwalbe Big Apple tires
- Quick-Release Indexing Boom Clamp
Sizing Notes:
- Weight Limit: 425 lbs
- X-Seam Range: 39 - 46"
- Notes: Riders should call us at 800-233-4340 or email us at salestaff@hostelshoppe.com with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.
- Fit Options: Hostel Shoppe offers various fits options for shorter or taller riders, including but not limited to different cranks lengths and crank shorteners.
Specifications | |
---|---|
Recumbent Name |
Catrike MAX eCat Bosch BES3
|
Electric Assist | |
Electric Assist |
Yes |
Class |
Class 1
|
Motor |
Bosch Active Line Plus with 50Nm of Torque
|
Throttle |
No |
Display |
Purion 200 Display
|
Battery |
Bosch 400 Wh Powerpack
|
Charger |
Bosch
|
UL Certified |
Yes |
Frameset | |
Frame |
Aluminum
|
Folding |
No |
Fork |
None
|
Suspension | |
Front Suspension |
None
|
Rear Suspension |
None
|
Drivetrain | |
Shift Levers |
SRAM 500 TT Bar End Shifter
|
Crankset |
FSA 44t Chainring with 165mm Crankarms
|
Bottom Bracket |
Bosch
|
Front Derailleur |
None
|
Rear Derailleur |
SRAM Apex 11 Speed
|
Cassette or Cog |
SRAM 11 speed 11-42t
|
Chain |
KMC 11 Speed
|
Gear Inch Range |
20 - 76 Gear Inches
|
Brakes | |
Front Brake |
Avid BB7 Disc Brakes
|
Rear Brake |
None
|
Brake Levers |
Catrike Locking Brake Levers
|
Parking Brake |
Catrike Locking Parking Levers
|
Wheels and Tires | |
Front Tire |
Schwalbe Big Apple 20 x 2.0" (50-406mm)
|
Front Hub |
Catrike Disc
|
Front Axle |
Catrike
|
Front Rim |
Catrike
|
Rear Tire |
Schwalbe Big Apple 20 x 2.0" (50-406mm)
|
Rear Hub |
Catrike 135mm
|
Rear Axle |
12x142 Thru Axle with 1.75 thread pitch
|
Rear Rim |
Catrike
|
Spokes |
Black
|
Tube Type |
Presta
|
Cockpit | |
Headset |
FSA Zero Stack
|
Steering |
Direct
|
Seat Type and Size |
Padded Mesh (Wide) with Adjustable Seat Angle
|
Pedals |
Dual Sided Platform / SPD Compatible Clipless Pedals
|
Geometry | |
Overall Length |
74 in
|
Overall Width |
37.25 in
|
Overall Height |
32.25 in (25.25 with seat folded)
|
Folded Length |
Not Applicable
|
Folded Width |
Not Applicable
|
Folded Height |
Not Applicable
|
Wheelbase |
40 in
|
Seat Angle |
47 - 57 degrees
|
Seat Height |
16 in
|
Bottom Bracket Height |
16.25 in
|
Total Weight |
57 lbs
|
Sizing | |
Rider Weight Limit |
425 lbs
|
Rider X-Seam Range |
39 - 46 in
|
