Catrike 2024 Pocket Bosch eCat Recumbent Trike
Catrike 2024 Pocket Bosch eCat Recumbent Trike
SKU:210000011522
Low stock: 1 left
Couldn't load pickup availability
Have a question about this product?
Have a question about this product?
Share

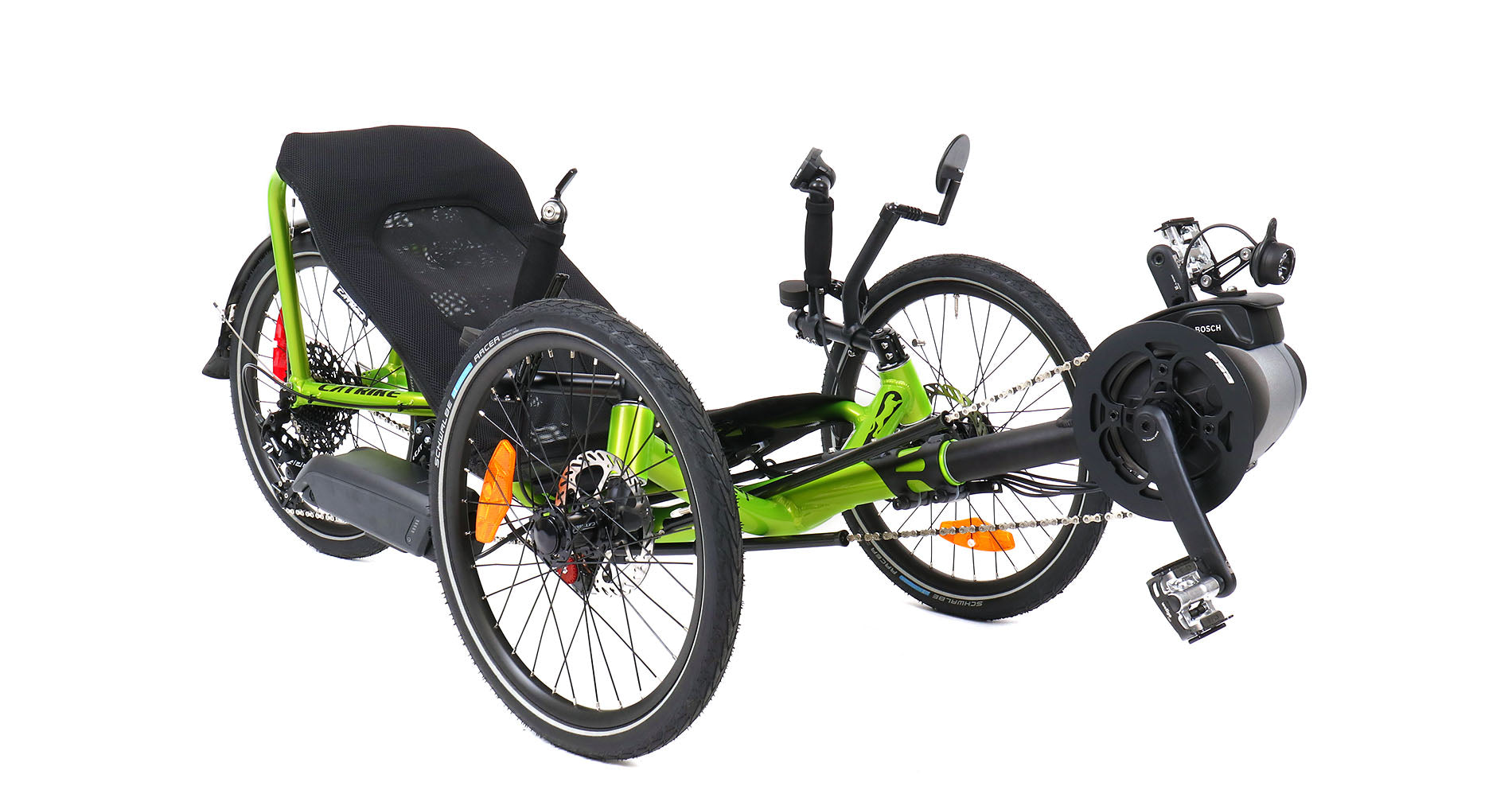

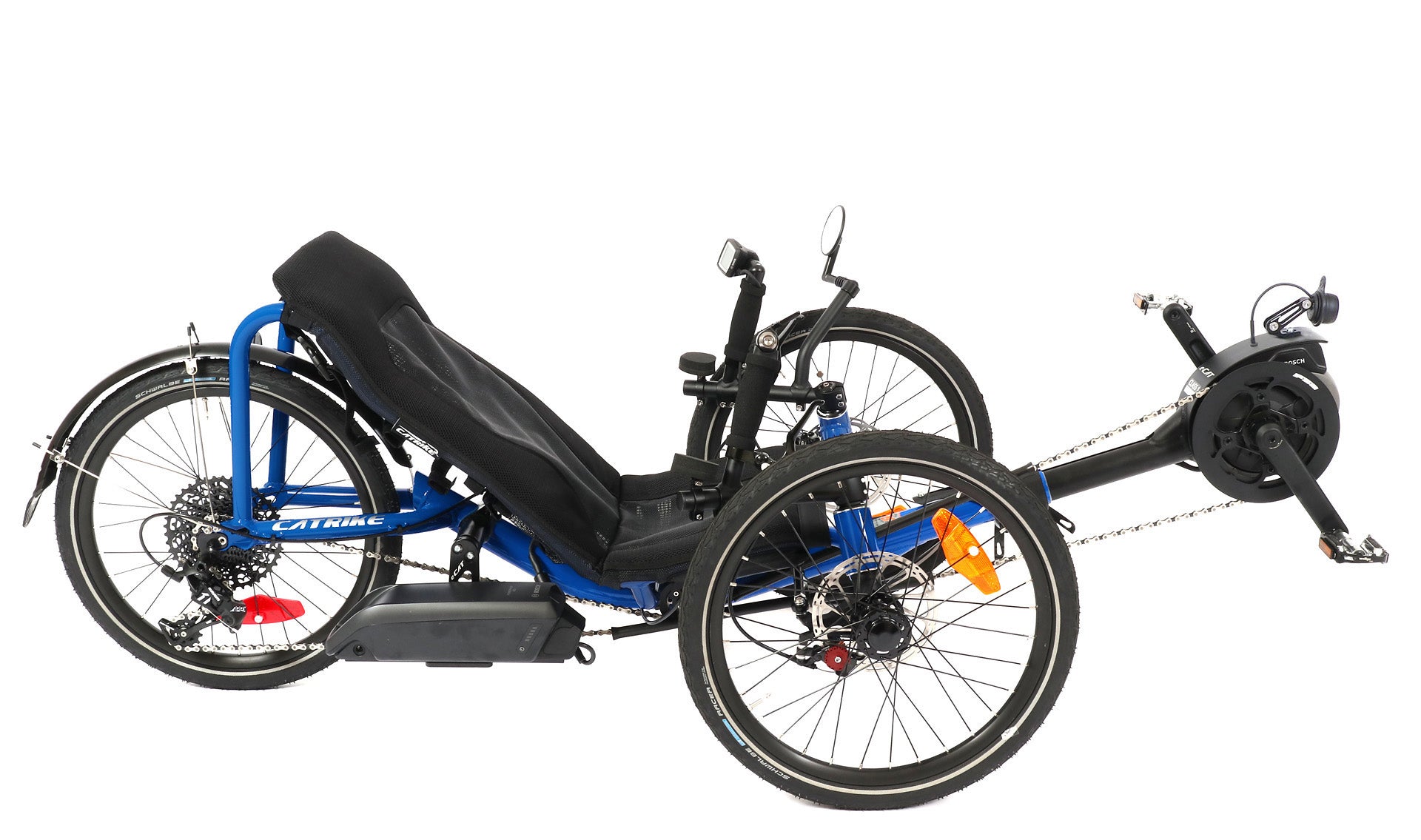

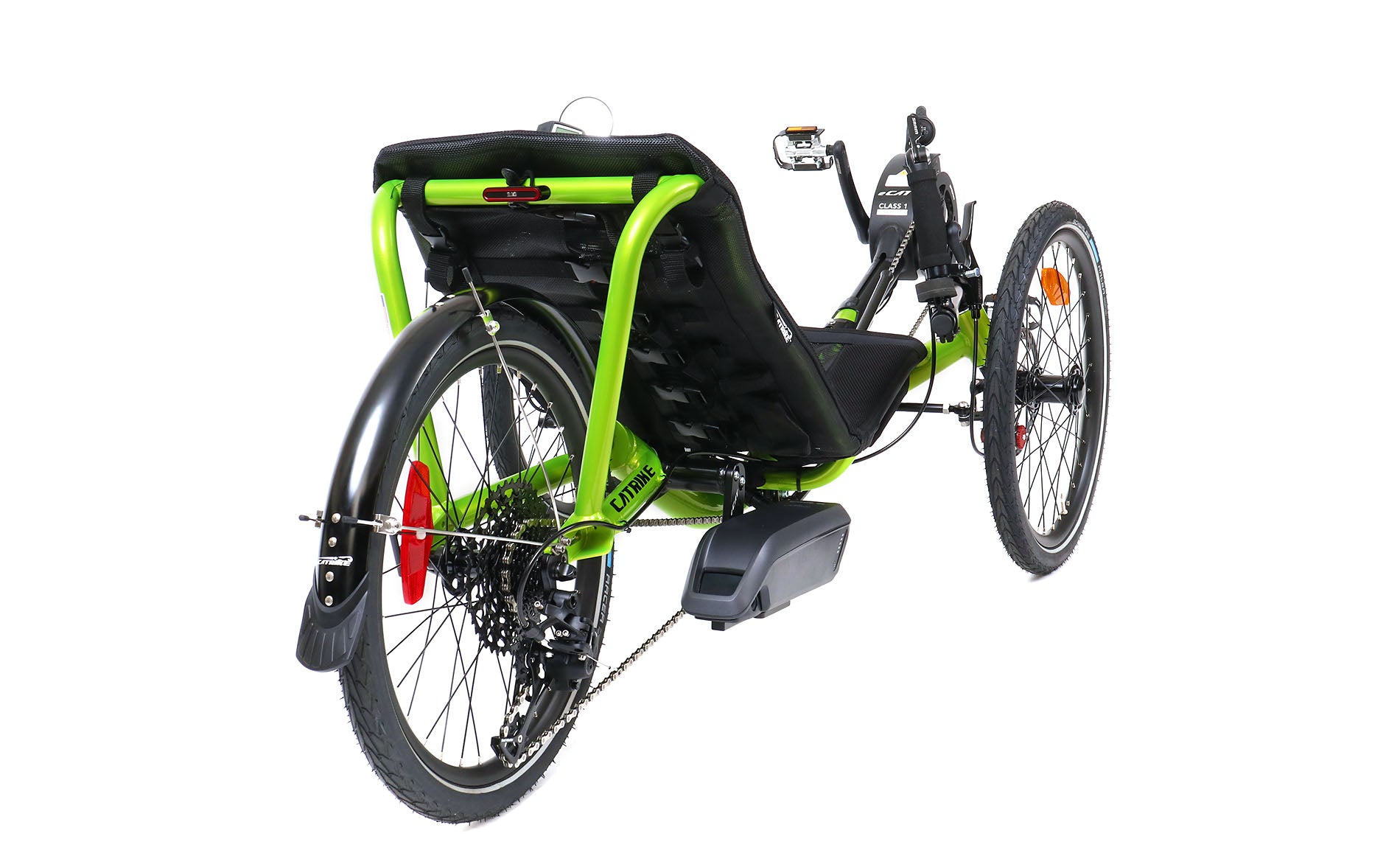

The Catrike Pocket is a small-frame trike with all the features of its full-size brother the Expedition, but with 406mm wheels all 'round! The Pocket has a narrow track and improved weight distribution that is perfect for smaller riders. With a narrow wheel track, the Pocket goes through doors easily, and provides riders with a very efficient and spirited ride. Catrike's ergo seat is extremely comfortable and the double-bend frame increases ground clearance.

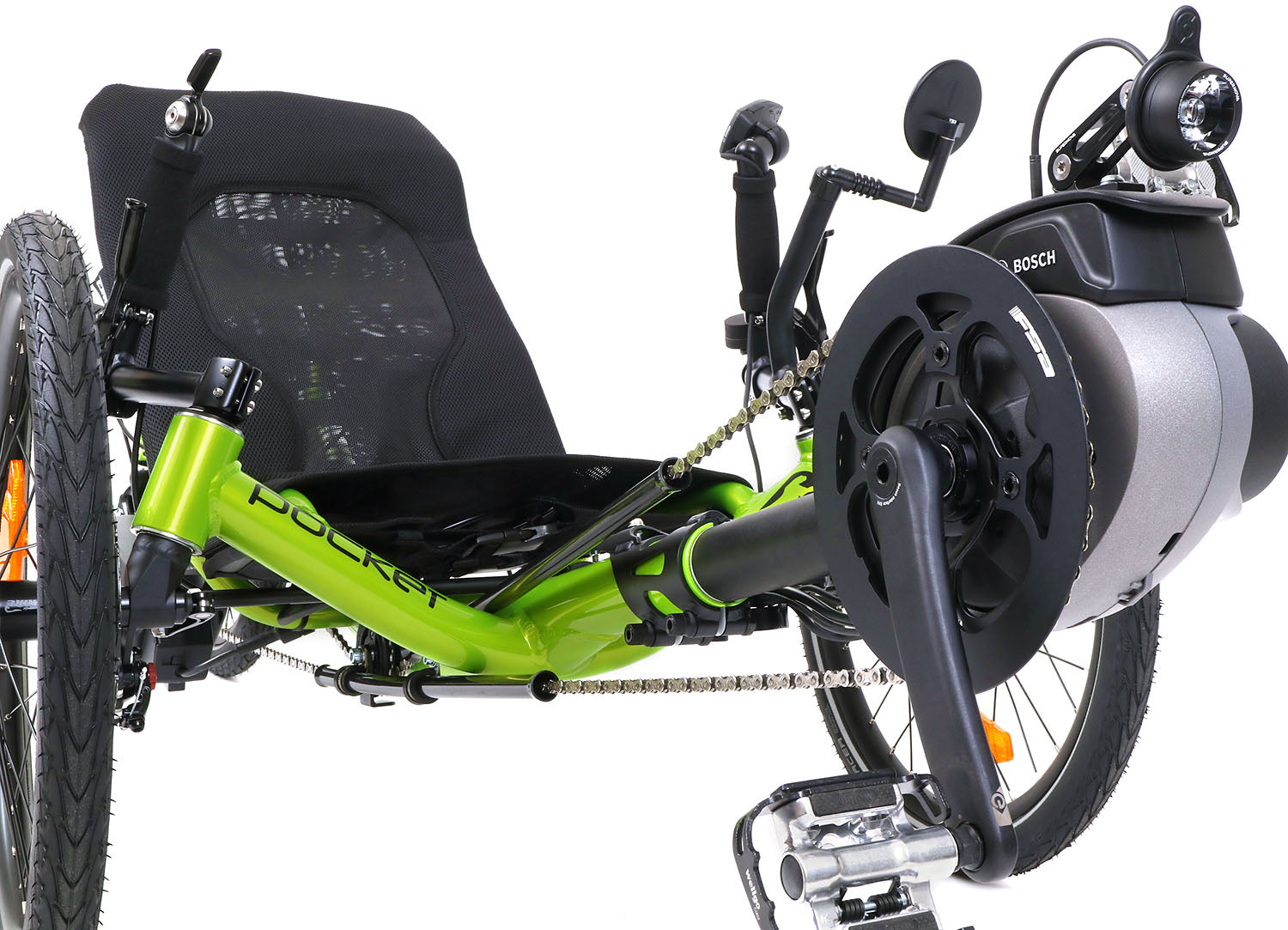

At the heart of the eCAT line is the latest in electric assist systems from industry leader Bosch. The result is a Catrike with the perfect combination of maximum efficiency, comfort and riding enjoyment. The efficient and versatile Active Line Plus electric-assist drive mated to a 1x11 drivetrain (11 - 42 cassette / 44 tooth chainring) provides dynamic performance – guaranteeing an authentic riding sensation with minimal pedaling resistance. It delivers active and sporty acceleration even at low cadences, offering powerful assistance as soon as you step on the pedals. In addition, the system’s multi-sensor technology and fast information processing ensure optimum interaction between you and your eCAT. The Bosch Active Line Plus electric-assist system features four power assist levels: Eco - 40%, Tour - 100%, Sport - 180% and Turbo - 270%. Each level also features a maximum drive torque to ensure smooth, gentle acceleration. The Bosch Active Line Plus delivers assist up to 20 mph and a cadence of 105, 50Nm of torque and a 400Wh Powerpack battery.
Bosch Info:
- Pedal assist up to 20 mph
- Support level (%): Eco - 40%, Tour - 100%, Sport - 180%, Turbo - 270%
- Voltage 36V and Capacity 11.0 Ah
- A maximum torque of up to 50 Nm ensures gentle acceleration
- Purion display offers an intuitive user interface with a plus/minus toggle switch for adjusting assist level.
- The Purion display focuses on the essentials in a display that is easily read in sunlight
- The eCat models are equipped with a BOSCH 400 wh power pack battery
- Bosch eBike Systems have a 2-year warranty period from date of first end consumer purchase. Note: the warranty period for eBikes used in Commercial applications is reduced by 1 year.
The Bosch PowerPack (battery) Guarantee, guarantees batteries will maintain at least 60% of its maximum capacity within the warranty period. Warranty period is two years on the battery or 500 full charge cycles.
Standard Features:
- Ackerman Compensation - Different turn radius for inside and outside wheel
- Self Centering steering
- Double Bend Frame for added ground clearance
- Anodized Front Boom with adjustment scale
- Quick-Release Indexing Boom Clamp
- Ergo Seat
- Aluminium Rod Ends
- Low Friction PTFE Chain Tube
- Sculpted dropouts
- Domed front axle nuts
Included accessories and equipment:
- Integrated SUPERNOVA MINI 2 headlight and TL3 Pro taillight
- Platform Pedals (one side) / SPD compatible clipless pedals (other side)
- Left Mirror & mirror mount
- Computer Sensor Mount
- Rear Fender
- Flag & Flag Mount
- Proprietary Catrike Handrests
- Parking Brake Levers
- This compact trike fits x-seams from 36" to 43"
- Riders should call us with their height, weight and X-seam for sizing assistance.
- To find how to measure x-seam, go to our Help Guides.
- Modifications may be needed for shorter or taller riders.
- If you are near either end of the stated X-seam range, please contact us about fitting.
- Rider weight Limit: 225 lbs
Specifications | |
---|---|
Recumbent Name |
Catrike 2024 Pocket Bosch eCat Recumbent Trike
|
Electric Assist | |
Electric Assist |
Yes |
Class |
Class 1
|
Motor |
Bosch Active Line Plus with 50Nm of Torque
|
Throttle |
No |
Display |
Bosch
|
Battery |
Bosch 400Wh Powerpack
|
Charger |
Bosch
|
UL Certified |
Yes |
Frameset | |
Frame |
Aluminum
|
Folding |
No |
Fork |
Not Applicable
|
Suspension | |
Front Suspension |
Not Applicable
|
Rear Suspension |
Not Applicable
|
Drivetrain | |
Shift Levers |
SRAM 11 speed Bar End
|
Crankset |
FSA 44t with 165mm Crankarms
|
Bottom Bracket |
Bosch
|
Front Derailleur |
None
|
Rear Derailleur |
SRAM Apex 11 Speed
|
Cassette or Cog |
SRAM 11 speed 11-42t
|
Chain |
KMC 11 speed
|
Gear Inch Range |
19.6" to 74.7"
|
Brakes | |
Front Brake |
Avid BB7 Disc with 160mm Rotors
|
Rear Brake |
None
|
Brake Levers |
Catrike Locking Parking Levers
|
Parking Brake |
Catrike Locking Parking Levers
|
Wheels and Tires | |
Front Tire |
Schwalbe Marathon Racer 20 x 1.5" (40-406)
|
Front Hub |
Catrike Disc
|
Front Axle |
Bolt On
|
Front Rim |
Catrike
|
Rear Tire |
Schwalbe Marathon Racer 20 x 1.5" (40-406)
|
Rear Hub |
Catrike
|
Rear Axle |
135mm Quick Release
|
Rear Rim |
Catrike
|
Spokes |
Stainless
|
Tube Type |
Presta
|
Cockpit | |
Headset |
FSA Zero Stack
|
Steering |
Direct with Ackerman Steering Compensation
|
Seat Type and Size |
Catrike Mesh
|
Pedals |
Multi Purpose Clipless Pedals
|
Geometry | |
Overall Length |
68"
|
Overall Width |
31"
|
Overall Height |
25"
|
Folded Length |
Not Applicable
|
Folded Width |
Not Applicable
|
Folded Height |
Not Applicable
|
Wheelbase |
35"
|
Seat Angle |
41 degrees
|
Seat Height |
9"
|
Bottom Bracket Height |
15"
|
Total Weight |
50 lbs
|
Sizing | |
Rider Weight Limit |
225 lbs
|
Rider X-Seam Range |
36" to 43"
|
