Recumbent Bikes & Trikes

Think big:

AZUB MAX is a chariot you will fall in love with. When you sit on it, you cannot but beam with delight. Or even squeal with joy. This bike runs like clockwork, it devours all straight roads like nothing before and going downhill is a never ending joy. With its two large 26” wheels it is a recumbent like none other. The rear suspension is supplied as standard, and together with the optional front suspension, the AZUB MAX is a comfortable and fast bike which turns a road full of potholes into a smooth asphalt thoroughfare.

Fun through and through:

A robust main frame tube extending from the boom to the rack. An asymmetrical organically shaped rear fork. A pulley following the movement of the chain. Robust appearance. All this makes the MAX an icon which hundreds of cyclists have fallen in love with. The AZUB MAX will make you feel that you can do absolutely anything, go round your town ten times or conquer a continent. Everything is possible and anything you decide will be incredible fun.

The MAX is a recumbent bike for active cyclists who enjoy a fast ride and great challenges. Unlike our recumbents with a 20” front wheel and 26” rear wheel, it has a more sporty seating position, characterized by the crankset being placed higher than the bottom of the ergonomic seat. The rider is thus better seated and can put more power in the pedals.

Bigger is better:

AZUB comes from the Czech Republic and for Czechs, cycling is the most common sport. Bicycles are not used here only for transport, but people like spending their free time on them. That is also why mountain bikes are so popular. When Aleš Zemánek was building his first recumbent bike, he even then intended to create a very comfortable bike that could be used in many terrains. And he didn’t want to make any compromises in ergonomics or durability, so mountain bikes were his inspiration. Just the rider’s position was something he wasn’t keen on. However, at the very beginning he embarked on the traditional European concept, a recumbent with a 20” front wheel and 26” rear wheel. Nevertheless, customers soon made it clear that large wheels were what tempted their interest. Therefore, there soon appeared an AZUB MAX with both wheels in size 26”. And since mountain bikes were Aleš’s inspiration, it is not surprising that the MAX has been kitted out with proper suspension, high-quality components, has superior handling and is extremely durable. So it happens that since 2004, AZUB MAX brings joy to people who follow the motto “bigger is better”.

SPECS:

Recumbent Bicycle Name: Azub Max

Electric Assist: none

Parking Brake: No

Rear Suspension: Torch DV-22

Front Suspension: None

Folding: No

Weight Limit:  275 lbs (125kg)

Total Weight:  35lbs (16kg)

Seat Height:  27"

Overall Length:  68" (170mm)

Overall Width:  17" (45cm)

Overall Height:  49 1/2"

Rear Suspension: Torch DV-22 Spring

BB Height:  30"

Wheelbase: 43" (1111mm)

Pedals:  Force Product

Brakes:  Avid BB7_mtn

Brake Levers:  Avid

Rear Derailleur:  Shimano Deore 10 speed

Front Derailleur:  Shimano Deore 3 speed

Shift Levers:  Shimano Deore Trigger

Crankset:  Shimano Deore 170mm crankarms 48t with guard

Bottom Bracket:  External

Rims: Rocky Disc RX 3022

Cassette / Cog:  Shimano 10 speed 11-36t

Front Hub:  Quick Release

Rear Hub:  Quick Release

Front Tire:  Schwalbe Racer 26 x 1.5" (40-559)

Rear Tire:  Schwalbe Racer 26 x 1.5" (40-559)

Tube Type:  Schraeder (standard)

Chain:  10 speed

Steering: Direct Above Seat Stearing (ASS)

Last Update:  4/8/2020

Find additional details on the Azub Max check Azub.eu

Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

For the city as well as faraway places.

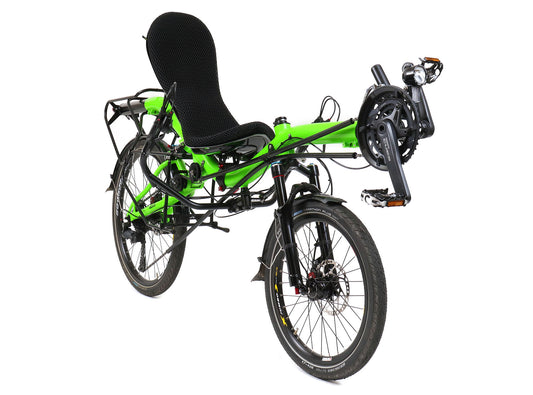

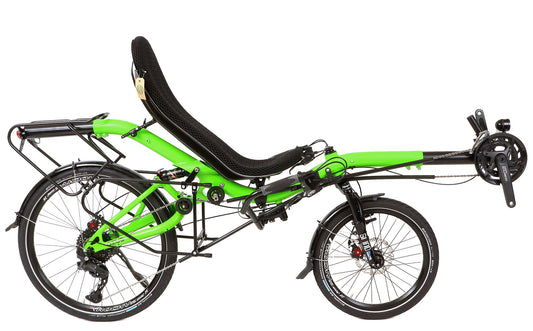

AZUB SIX is the ultimate universal bike we have on offer. It is comfortable, ergonomic, efficient and beautiful, nimble enough for the city and stable enough for long straight roads. Its robust frame, semi-integrated headset, stiff rear fork and a fixed rear rack make it a durable bike suitable for everyday commuting as well as for expeditions tens of thousands of kilometres long. However, each bike we have on offer is built according to the customer’s wishes, so we can also configure the SIX in such a way so that it offers plenty of comfort and speed for some pleasant afternoon or weekend outings. Which means you will be able to experience all the amazing features that AZUB SIX offers to extreme riders too.

From zero to six

For us, the SIX is the epitome of the entire evolution of our recumbent bikes. Our first prototype had a 20” front wheel and 26” rear wheel so we can really call it the AZUB Zero. Since then we have continuously refined it, looked closely at every single detail, and each and every experience we ever got we have transformed into an improvement. At first, we would come up with major innovations every year and the name of this model would change according to the given year – 2002, 2003, then AZUB 4 and AZUB 5. In 2005, we were happy with our Top Line models and for the next six long years we only focused on minor improvements. Then in 2011, we introduced an improved asymmetric fork along with other new technical details, but the new name of AZUB SIX didn’t come out until 2013. Ever since then, the SIX as well as all other AZUB recumbents have a sliding sleeve for the precise adjustment of the seat counting in millimetres, a superb system for the smooth and firm adjustment of the seat angle with locking nuts, improved mounting for the rear rack and revised geometry for even better riding experience.

Well pampered (Don’t bend, ride bent)

The comfort on this bike is provided not only by the rear suspension or the optional front suspension, but also by the position of the rider, whereby the crankset is positioned lower than the bottom of the composite ergonomic seat. Nevertheless, to ensure maximum comfort you need something extra. You need to merge with your bike completely and such connection can be arranged. Just adjust the seat angle, position of steering and the distance of the crankset exactly according to your needs. Our IPS system will allow you to do all this. We have been continuously improving it since 2000 and today we are more than happy with it. You see, we believe that the bike should adapt to the rider, not the other way round.

SPECS:

Recumbent Bicycle Name: Azub Six

Electric Assist: none

Parking Brake: No

Rear Suspension: Torch DV-22

Front Suspension: 20" Spinner Grind - Spring Shock

Folding: No

Weight Limit:  275 lbs (125kg)

Total Weight:  33lbs (15kg)

Seat Height:  22.4"

Overall Length:  66.9" (170mm)

Overall Width:  17" (45cm)

Overall Height:  41.3"

Rear Suspension: Torch DV-22 Spring Shock

BB Height:  24"

Wheelbase: 43.5"

Pedals:  Force Product

Brakes:  Avid BB7 Mtn

Brake Levers:  Avid

Rear Derailleur:  Shimano Deore 10 speed

Front Derailleur:  Shimano Deore 3 speed

Shift Levers:  Shimano Deore Trigger

Crankset:  Shimano Deore 170mm crankarms Triple with guard

Bottom Bracket:  External

Rims: Rocky Disc RX 3022

Cassette / Cog:  Shimano 10 speed 11-36t

Front Hub:  Quick Release

Rear Hub:  Quick Release

Front Tire:  Schwalbe Racer 26 x 1.5" (40-559)

Rear Tire:  Schwalbe Racer 26 x 1.5" (40-559)

Tube Type:  Schraeder (standard)

Chain:  10 speed

Steering: Direct Above Seat Stearing (ASS)

Last Update:  7/1/2020

Find additional details on the Azub Six check Azub.eu

Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

Classic comfort combined with long distance performance, the 5.5.9 is the best of both worlds. Combining the adjustable backrest and padded seat mesh of the Road and Trail models with the long-distance capability of the Expedition, Catrike has created one of the most capable and comfortable trikes available. The ingenious design of the Catrike’s folding frame with roller wheels allows you to load it in just about any vehicle. Find enjoyment in the journey with the 5.5.9.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering with no Brake Steer
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube
• Roller wheels for rolling when folded

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Axiom Journey Adjustable Rear Rack with the Hostel Shoppe Catrike Rack Adapter Kit for mounting
• Catrike Rigid Front Fenders 20" Pair

Sizing Notes:

• This trike fits x-seams from 39" to 46".  A trike with a longer boom can be special ordered for an additional $25.
• The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
• The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
• Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

Recumbent Tricycle Name: Catrike 5.5.9.
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: None
Front Suspension: None
Folding: Yes
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  39" - 46"
Total Weight:  39.5 lbs
Seat Height:  11"
Overall Length:  81"
Overall Width:  32.5"
Overall Height:  29"
Folded Length:  46"
Folded Width:  32.5"
Folded Height:  29.5"
BB Height:  14"
Seat Angle:  44 - 51 degrees
Seat Type & Size:   Padded w/ adjustable seat angle
Wheelbase:  44"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  21 - 118"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid Speed Dial 7
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket:  FSA Road MegaExo
Cassette / Cog:  SRAM 10 speed 11-36t
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm, 12x142 Thru Axle
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/18/2020

We have a big order of eCats and Bosch retrofit kits placed with Catrike, so you can reserve one of the trikes or kits off our upcoming shipment. Call us at 800-233-4340 for details or ordering.

Classic comfort combined with long distance performance, the 5.5.9 is the best of both worlds. Combining the adjustable backrest and padded seat mesh of the Road and Trail models with the long-distance capability of the Expedition, Catrike has created one of the most capable and comfortable trikes available. The ingenious design of the Catrike’s folding frame with roller wheels allows you to load it in just about any vehicle. Find enjoyment in the journey with the 5.5.9.

At the heart of the eCAT line is the latest in electric assist systems from industry leader Bosch. The result is a Catrike with the perfect combination of maximum efficiency, comfort and riding enjoyment. The efficient and versatile Active Line Plus electric-assist drive mated to a 1x11 drivetrain (11 - 42 cassette / 44 tooth chainring) provides dynamic performance – guaranteeing an authentic riding sensation with minimal pedaling resistance. It delivers active and sporty acceleration even at low cadences, offering powerful assistance as soon as you step on the pedals. In addition, the system’s multi-sensor technology and fast information processing ensure optimum interaction between you and your eCAT. The Bosch Active Line Plus electric-assist system features four power assist levels: Eco - 40%, Tour - 100%, Sport - 180% and Turbo - 270%. Each level also features a maximum drive torque to ensure smooth, gentle acceleration. The Bosch Active Line Plus delivers assist up to 20 mph and a cadence of 105, 50Nm of torque and a 400Wh Powerpack battery.

Bosch Info:

• Pedal assist up to 20 mph
• Support level (%): Eco - 40%, Tour - 100%, Sport - 180%, Turbo - 270%
• Voltage 36V and Capacity 11.0 Ah
• A maximum torque of up to 50 Nm ensures gentle acceleration
• Purion display offers an intuitive user interface with a plus/minus toggle switch
• The Purion display focuses on the essentials in a display that is easily read in sunlight
• The E-Cat models will be equipped with a BOSCH 400 wh power pack battery
• Bosch eBike Systems have a 2-year warranty period from date of first end consumer purchase. Note: the warranty period for eBikes used in commercial applications is reduced by 1 year.
• The Bosch PowerPack (battery) Guarantee, guarantees batteries will maintain at least 60% of its maximum capacity within the warranty period. Warranty period is two years on the battery or 500 full charge cycles.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering with no Brake Steer
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube
• Roller wheels for rolling when folded

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Catrike Rigid Front Fenders 20" Pair

Sizing Notes:

• This trike fits x-seams from 39" to 46".
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• eBoom minimum length is 35mm longer than Catrike's standard boom. Riders at the 5 foot and under height might not be able to utilize the eBoom on all models.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

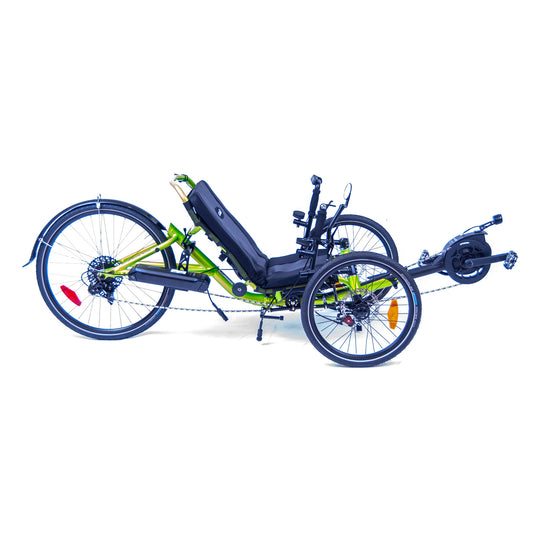

Recumbent Tricycle Name: Catrike 5.5.9. eCat

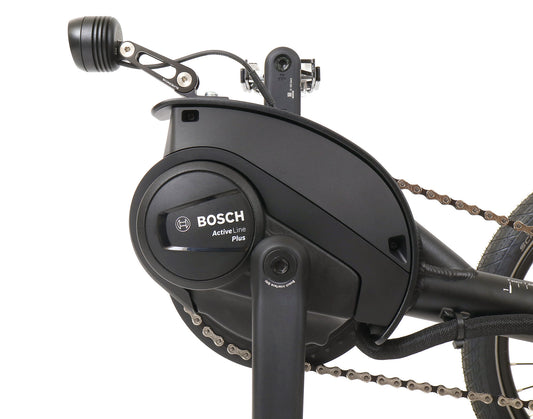

Electric Assist: Bosch Active Line Plus with 50Nm of Torgque and a 400Wh Powerpack battery
Parking Brake: Yes - Locking brake levers
Rear Suspension: None
Front Suspension: None
Folding: Yes
Weight Limit: 275 lbs
Manufacturer’s X-seam Range: 39" - 46"
Total Weight: 59 lbs
Seat Height: 11"
Overall Length: 81"
Overall Width: 32.5"
Overall Height: 29"
Folded Length: 46"
Folded Width: 32.5"
Folded Height: 29.5"
BB Height: 14"
Seat Angle: 44 - 51 degrees
Seat Type & Size: Padded w/ adjustable seat angle
Wheelbase: 44"
Pedals: Combination Platform w/ SPD clipless
Gear Range: 26.1" tp 99.5"
Brakes: Avid BB7 Disc
Brake Levers: Catrike Locking Parking Levers
Rear Derailleur: SRAM Apex 11 Speed
Front Derailleur: None
Shift Levers: SRAM 11 speed Bar End
Crankset: 44t Bosch
Bottom Bracket: Bosch
Cassette / Cog: SRAM 11 speed 11-42t
Front Hub: Catrike Disc
Rear Hub: Catrike 135mm, 12x142 Thru Axle
Front Tire: Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire: Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type: Presta
Chain: KMC 11 speed
Headset: FSA Zero Stack
Steering: Direct
Last Update: 8/11/2020

We have a big order of eCats and Bosch retrofit kits placed with Catrike, so you can reserve one of the trikes or kits off our upcoming shipment. Call us at 800-233-4340 for details or ordering.

Classic comfort combined with long distance performance, the 5.5.9 is the best of both worlds. Combining the adjustable backrest and padded seat mesh of the Road and Trail models with the long-distance capability of the Expedition, Catrike has created one of the most capable and comfortable trikes available. The ingenious design of the Catrike’s folding frame with roller wheels allows you to load it in just about any vehicle. Find enjoyment in the journey with the 5.5.9.

At the heart of the eCAT line is the latest in electric assist systems from industry leader Bosch. The result is a Catrike with the perfect combination of maximum efficiency, comfort and riding enjoyment. The efficient and versatile Active Line Plus electric-assist drive mated to a 1x11 drivetrain (11 - 42 cassette / 44 tooth chainring) provides dynamic performance – guaranteeing an authentic riding sensation with minimal pedaling resistance. It delivers active and sporty acceleration even at low cadences, offering powerful assistance as soon as you step on the pedals. In addition, the system’s multi-sensor technology and fast information processing ensure optimum interaction between you and your eCAT. The Bosch Active Line Plus electric-assist system features four power assist levels: Eco - 40%, Tour - 100%, Sport - 180% and Turbo - 270%. Each level also features a maximum drive torque to ensure smooth, gentle acceleration. The Bosch Active Line Plus delivers assist up to 20 mph and a cadence of 105, 50Nm of torque and a 400Wh Powerpack battery.

Bosch Info:

• Pedal assist up to 20 mph
• Support level (%): Eco - 40%, Tour - 100%, Sport - 180%, Turbo - 270%
• Voltage 36V and Capacity 11.0 Ah
• A maximum torque of up to 50 Nm ensures gentle acceleration
• Purion display offers an intuitive user interface with a plus/minus toggle switch
• The Purion display focuses on the essentials in a display that is easily read in sunlight
• The E-Cat models will be equipped with a BOSCH 400 wh power pack battery
• Bosch eBike Systems have a 2-year warranty period from date of first end consumer purchase. Note: the warranty period for eBikes used in commercial applications is reduced by 1 year.
• The Bosch PowerPack (battery) Guarantee, guarantees batteries will maintain at least 60% of its maximum capacity within the warranty period. Warranty period is two years on the battery or 500 full charge cycles.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering with no Brake Steer
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube
• Roller wheels for rolling when folded

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Catrike Rigid Front Fenders 20" Pair

Sizing Notes:

• This trike fits x-seams from 39" to 46".
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• eBoom minimum length is 35mm longer than Catrike's standard boom. Riders at the 5 foot and under height might not be able to utilize the eBoom on all models.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

Recumbent Tricycle Name: Catrike 5.5.9. eCat
Electric Assist: Bosch Active Line Plus with 50Nm of Torgque and a 400Wh Powerpack battery
Parking Brake: Yes - Locking brake levers
Rear Suspension: None
Front Suspension: None
Folding: Yes
Weight Limit: 275 lbs
Manufacturer’s X-seam Range: 39" - 46"
Total Weight: 59 lbs
Seat Height: 11"
Overall Length: 81"
Overall Width: 32.5"
Overall Height: 29"
Folded Length: 46"
Folded Width: 32.5"
Folded Height: 29.5"
BB Height: 14"
Seat Angle: 44 - 51 degrees
Seat Type & Size: Padded w/ adjustable seat angle
Wheelbase: 44"
Pedals: Combination Platform w/ SPD clipless
Gear Range: 26.1" tp 99.5"
Brakes: Avid BB7 Disc
Brake Levers: Catrike Locking Parking Levers
Rear Derailleur: SRAM Apex 11 Speed
Front Derailleur: None
Shift Levers: SRAM 11 speed Bar End
Crankset: 44t Bosch
Bottom Bracket: Bosch
Cassette / Cog: SRAM 11 speed 11-42t
Front Hub: Catrike Disc
Rear Hub: Catrike 135mm, 12x142 Thru Axle
Front Tire: Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire: Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type: Presta
Chain: KMC 11 speed
Headset: FSA Zero Stack
Steering: Direct
Last Update: 8/11/2020

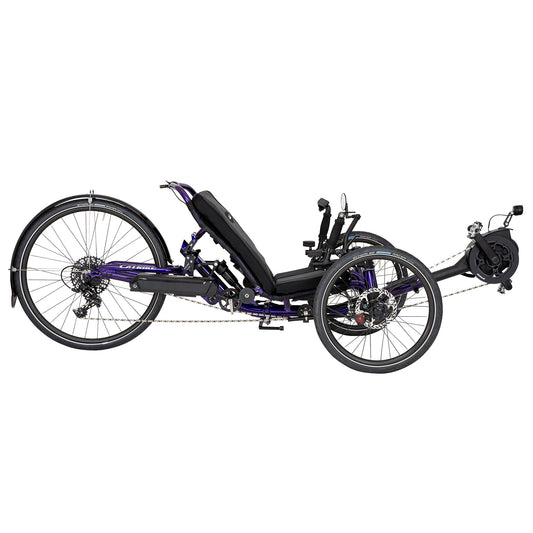

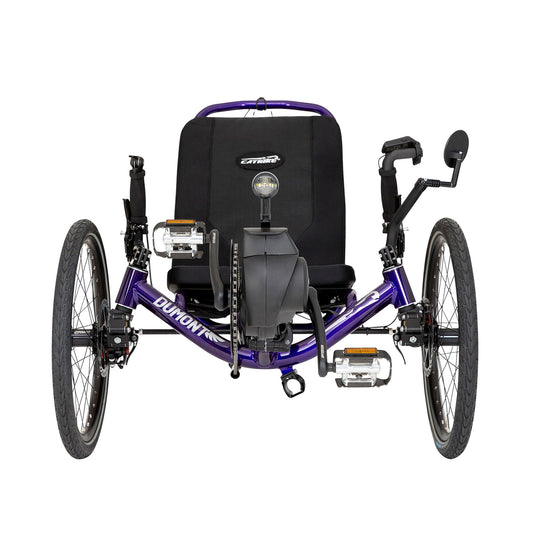

Catrike's many years of engineering and experience have come together to create the Dumont. The rear suspension features a highly progressive travel path combined with a custom spring rate and sophisticated damping for a perfect balance of performance and comfort. The shock is actuated via a CNC machined swingarm pivoting on precision cartridge bearings to allow the suspension system to operate with seamless efficiency. Up front, the Dumont employs Catrike's anti-dive patent-pending front suspension spindle to take the edge off while allowing all wheels to move independently. The result is that the Dumont stays firmly planted on the ground with the active suspension. The long and low rider position and fully adjustable boom provide the stable weight distribution needed for maximum performance while the ergonomic backrest is fully adjustable for the perfect fit. A 26-inch rear wheel and folding frame round out the Dumont to provide the ultimate ride.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube
• Roller wheels for rolling when folded

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Axiom Journey Adjustable Rear Rack with the Hostel Shoppe Catrike Rack Adapter Kit for mounting
• Catrike Suspension Front Fenders 20" Pair

Sizing Notes:

• This trike fits x-seams from 39" to 46".  A trike with a longer boom can be special ordered for an additional $25.
• The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
• The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
• Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

Recumbent Tricycle Name: Catrike Dumont
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: Rock Shox Monarch R (2" of travel)
Front Suspension: Elastomer (0.5" of travel)
Folding: Yes
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  39 - 46"
Total Weight:  43 lbs
Seat Height:  10"
Overall Length:  82"
Overall Width:  32.5"
Overall Height:  28"
Folded Length:  45.25"
Folded Width:  32.5"
Folded Height:  25"
BB Height:  16.5"
Seat Angle:  42 - 49 degrees
Seat Type & Size:  Padded w/ Adjustable seat angle
Wheelbase:  45.5"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  21 - 118"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid Speed Dial 7
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket:  FSA Road MegaExo
Cassette / Cog:  SRAM 10 Speed 11/36t
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm QR
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/18/2020

Catrike's many years of engineering and experience have come together to create the Dumont. The rear suspension features a highly progressive travel path combined with a custom spring rate and sophisticated damping for a perfect balance of performance and comfort. The shock is actuated via a CNC machined swingarm pivoting on precision cartridge bearings to allow the suspension system to operate with seamless efficiency. Up front, the Dumont employs Catrike's anti-dive patent-pending front suspension spindle to take the edge off while allowing all wheels to move independently. The result is that the Dumont stays firmly planted on the ground with the active suspension. The long and low rider position and fully adjustable boom provide the stable weight distribution needed for maximum performance while the ergonomic backrest is fully adjustable for the perfect fit. A 26-inch rear wheel and folding frame round out the Dumont to provide the ultimate ride.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube
• Roller wheels for rolling when folded

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Axiom Journey Adjustable Rear Rack with the Hostel Shoppe Catrike Rack Adapter Kit for mounting
• Catrike Suspension Front Fenders 20" Pair

Sizing Notes:

• This trike fits x-seams from 39" to 46".  A trike with a longer boom can be special ordered for an additional $25.
• The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
• The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
• Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

Recumbent Tricycle Name: Catrike Dumont
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: Rock Shox Monarch R (2" of travel)
Front Suspension: Elastomer (0.5" of travel)
Folding: Yes
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  39 - 46"
Total Weight:  43 lbs
Seat Height:  10"
Overall Length:  82"
Overall Width:  32.5"
Overall Height:  28"
Folded Length:  45.25"
Folded Width:  32.5"
Folded Height:  25"
BB Height:  16.5"
Seat Angle:  42 - 49 degrees
Seat Type & Size:  Padded w/ Adjustable seat angle
Wheelbase: 45.5"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  21 - 118"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid Speed Dial 7
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket:  FSA Road MegaExo
Cassette / Cog:  SRAM 10 Speed 11/36t
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm, 12x142 Thru Axle
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/18/2020

Catrike's many years of engineering and experience have come together to create the Dumont. The rear suspension features a highly progressive travel path combined with a custom spring rate and sophisticated damping for a perfect balance of performance and comfort. The shock is actuated via a CNC machined swingarm pivoting on precision cartridge bearings to allow the suspension system to operate with seamless efficiency. Up front, the Dumont employs Catrike's anti-dive patent-pending front suspension spindle to take the edge off while allowing all wheels to move independently. The result is that the Dumont stays firmly planted on the ground with the active suspension. The long and low rider position and fully adjustable boom provide the stable weight distribution needed for maximum performance while the ergonomic backrest is fully adjustable for the perfect fit. A 26-inch rear wheel and folding frame round out the Dumont to provide the ultimate ride.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube
• Roller wheels for rolling when folded

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Axiom Journey Adjustable Rear Rack with the Hostel Shoppe Catrike Rack Adapter Kit for mounting
• Catrike Suspension Front Fenders 20" Pair

Sizing Notes:

• This trike fits x-seams from 39" to 46".  A trike with a longer boom can be special ordered for an additional $25.
• The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
• The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
• Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

Recumbent Tricycle Name: Catrike Dumont
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: Rock Shox Monarch R (2" of travel)
Front Suspension: Elastomer (0.5" of travel)
Folding: Yes
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  39 - 46"
Total Weight:  43 lbs
Seat Height:  10"
Overall Length:  82"
Overall Width:  32.5"
Overall Height:  28"
Folded Length:  45.25"
Folded Width:  32.5"
Folded Height:  25"
BB Height:  16.5"
Seat Angle:  42 - 49 degrees
Seat Type & Size:  Padded w/ Adjustable seat angle
Wheelbase: 45.5"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  21 - 118"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid Speed Dial 7
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket:  FSA Road MegaExo
Cassette / Cog:  SRAM 10 Speed 11/36t
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm, 12x142 Thru Axle
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/18/2020

We have a big order of eCats and Bosch retrofit kits placed with Catrike, so you can reserve one of the trikes or kits off our upcoming shipment.  Call us at 800-233-4340 for details or ordering.
