Fairings

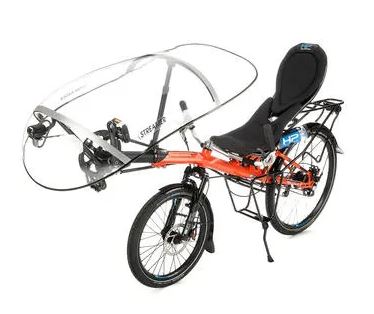

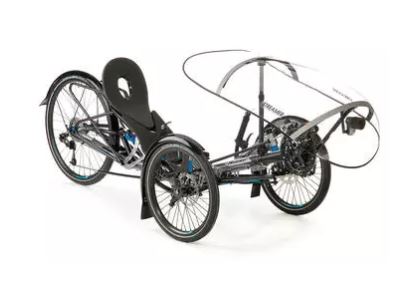

Want to go faster, further and with less effort? Stay warm and dry in cold weather? A recumbent bike or trike gives you a serious aerodynamic advantage, but you can get even more benefit by using a well designed front fairing. The Streamer front fairing from HP Velotechnik will fit almost any recumbent and many tricycles. It is guaranteed to improve your riding comfort and efficiency, protects you from the elements and helps you slip through the air with minimum effort. And it looks great!

Constructed from strong, see-through plastic with unique lightweight aluminum mounting hardware, it gets its strength from good design and the use of high-tech materials. It is easy to fit and removable in seconds for transportation or storage. A single quick release lever releases the windshield and supporting stays, leaving two discreet brackets mounted on the frame. The windshield can then be rolled up for traveling. The Streamer is a highly efficient teardrop shape that offers a minimal frontal area and directs air gently around your body without blasting it into your face. The greatest benefits are felt at higher speeds, so that the faster you go, the more benefit you get, but even at a cruising speed of 15 km/h (10 mph) there is a noticeable decrease in wind drag. The effect of headwinds is greatly reduced and side winds are felt as almost beneficial. The aerodynamic advantage of the fairing depends on the position of fairing, rider an bike as well as on clothing. Carry out a testride before purchase on your bike to find out your specific benefit. Due to its open shape, riding with the Streamer is extremely silent, avoiding any ‘rolling thunder’.

The Streamer fairing makes you stand out from the crowd and makes you become more visible at night. Included with the Streamer, you’ll receive a mount to hang your front light so that it shines from underneath the fairing, alternatively, we offer a Streamer version with a hole for your front light. The windshield gets most of its strength from its shape but complete rigidity is ensured by a pair of channel section aluminium spars which are located on widthways by strips of velcro. This mounting system means there is no drilling needed in the fairing, eliminating a potential breaking point. It also makes the fairing easy to break down for transportation. Because of the rigidity of this system, the plastic screen can be made verry thin but does not vibrate, rattle or transmit any road noise. In normal use the windshield is almost indestructible, it will withstand severe knocks and even modest dropping without breaking. Abrasion can lead to scratching of the surface but this in no way affects its functionality as the rider is always looking over the top edge. The windscreen comes standard with edging tape all the way round. The fairing is mounted onto the frame by two fully adjustable struts, the front one mounts under any bottom bracket or sealed bottom brackets tube, and is held by a quick release lever. Our new quickmount strut can be assembled in minutes without opening the bottom bracket bearing. Please note that for a good view over the fairing your crank axle should not be higher than 18 cm (7″) above your seat base. The rear strut is a telescopic pressure fit and mounts onto the main boom of the bike by means of a rubber coated jubilee clip. Because of the positioning of the mounting brackets they are able to take large front or side loads without moving, making a structure that is extremely rigid.

• Weight windscreen ………….. 1450 g
• Standard mount ………………… 985 g
• Length ………………………….. 1000 mm
• Width ……………………………… 550 mm
• Material ……………………… clear PETG

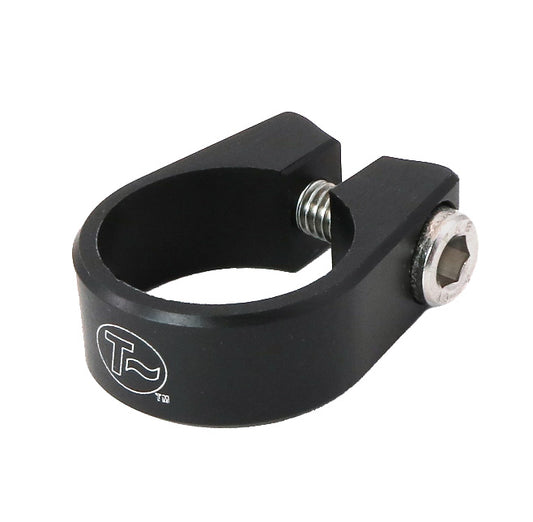

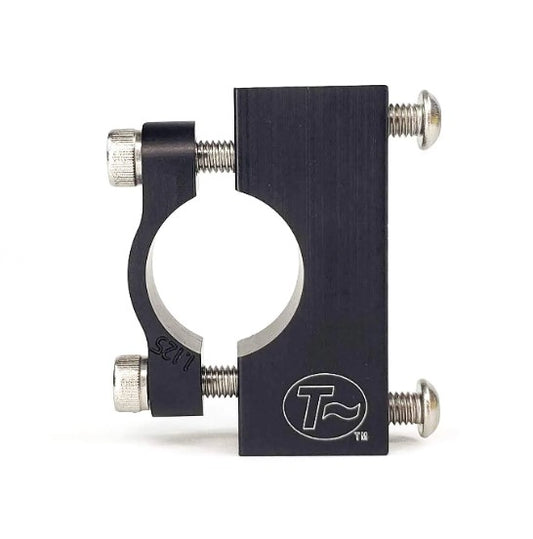

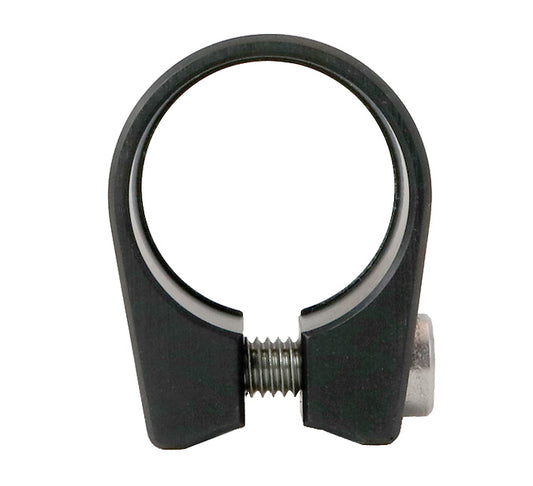

Fairing Boom Mounting Clamps for various trikes. Hostel shoppe stocks three sizes, but other clamps can be special ordered. Measure your boom using a calipers, or click here for the T-Cycle Measuring Tool and Instructions.

We stock the following sizes to fit the following trikes (Choose your size in the drop down menu):

• 1.625in for ICE
• 1.8in for Catrike
• 54mm for Azub and HP Velotechnik

  The Fairing Boom Mounting Clamp includes only the mounting clamp. WINTR Hardware and Bubbles sold separately.

  To determine if this is the right fairing for your trike or bike please see the Fit Chart.


• Click for WINTR Bubble Clear.
• Click for WINTR Bubble Tinted.
• Click for WINTR Hardware
• Click for separate Polishing Kit.

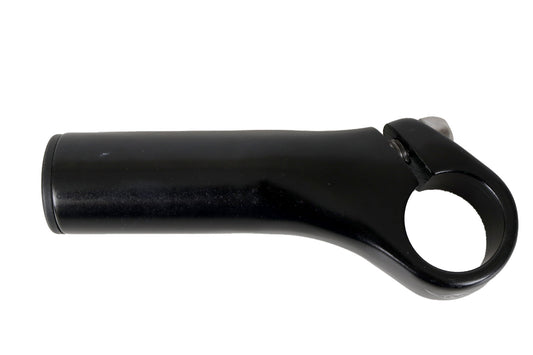

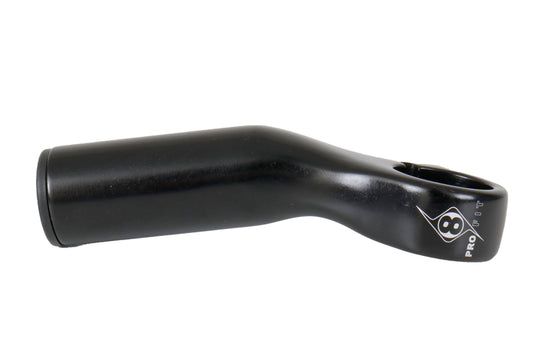

• Headlight mounts can be special ordered.

The XT is partial coverage fairing that works on a lot of different bikes and trikes, and typically mounts on the front derailleur mast. Since it is a small fairing, it doesn't provide as much aerodynamic assistance as the larger, full coverage fairings. On bikes/trikes with low seats and limited forward visibility, it's sometimes the only fairing that will work. In spite of its small size, it's great at keeping your feet warm if you're a cold weather rider. W=18" H=19" Depth=7.5" L=22" To determine if this is the right fairing for your bike please see the Fit Chart.

• Hardware sold separately.


• The rubber nut set is included with the hardware and NOT the bubble.

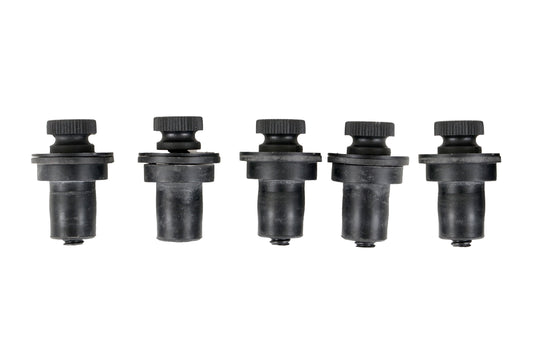

Replacement rubber nut set for Windwrap fairings.

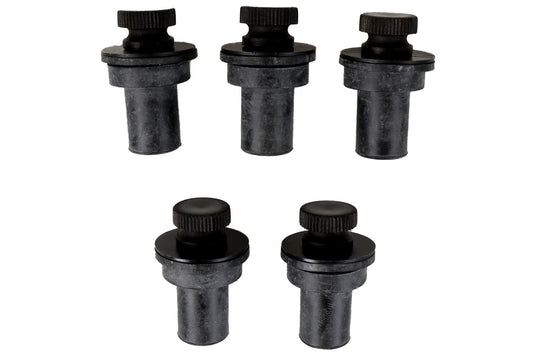

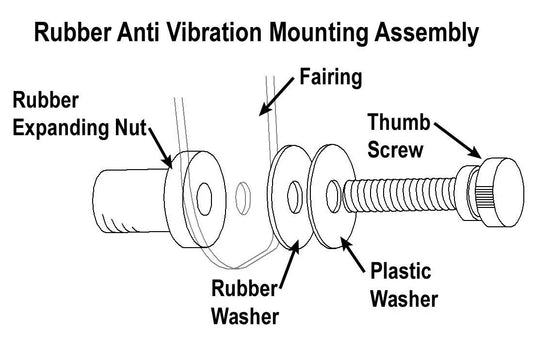

• Kit contains 5 rubber expanding nuts, 5 nylon screws (1/4 x 1"), 5 nylon washers and 5 rubber washers.

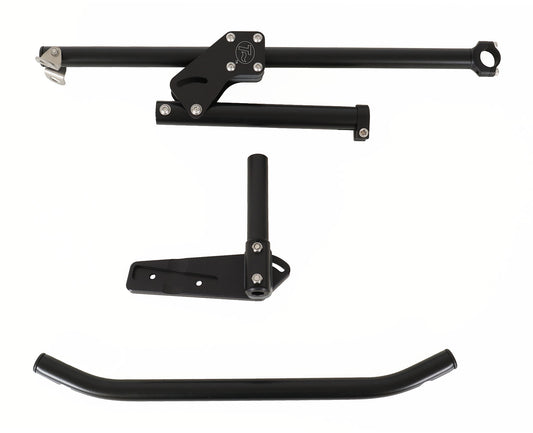

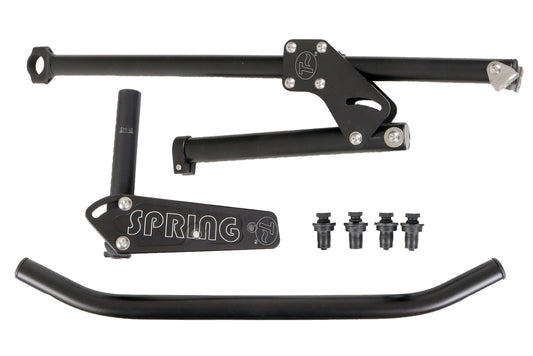

SPRING stands for Super Portable, Rider-Insulating Nose Guard. This is the easy to transfer mounting hardware from T-Cycle that completes a fairing system meticulously designed to keep you on the road no matter what the weather is doing. Utilizing the power of T-Cycle's exquisite CNC machining, the mounting hardware is stronger and simpler to use than ever before.

The SPRING Mounting Hardware includes only the mounting hardware needed to mount a SPRING Fairing to your bike or trike. No clamp in included in this kit.

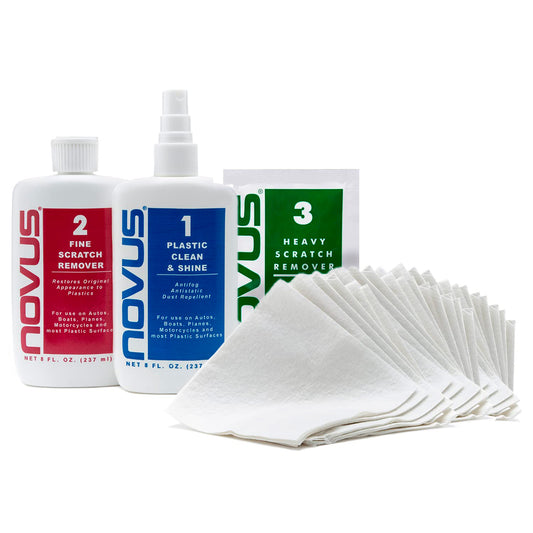

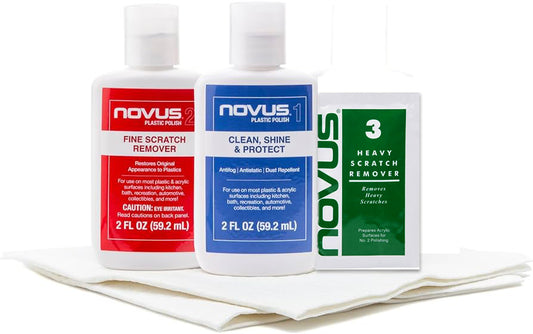

The Novus plastic polish system is the best out there. It does a great job on fairings as well as many other plastic things you might have around, like DVDs, plastic auto light covers, motorcycle helmet face shields, pretty much anything plastic that might get scratched or scuffed. The #2 Scratch Remover works on all but the worst scratches, and the #1 Polish takes care of the rest. We include some #3 Heavy Scratch Remover just in case. Keep your fairing looking like new for years!

This kit contains 2oz of Novus #1 Plastic Polish, 2oz of #2 Scratch Remover, a Mini Pack of #3 Heavy Scratch Remover, two special polishing pads, and complete instructions.

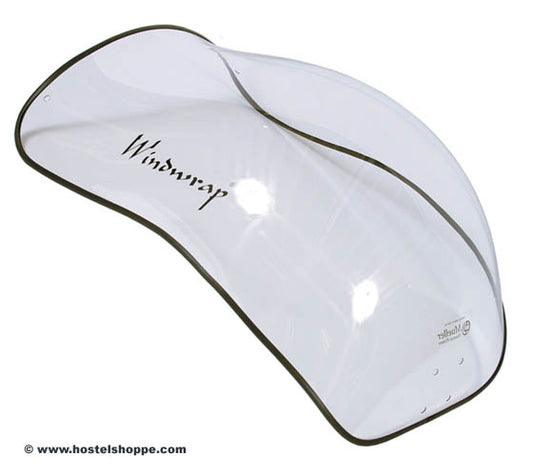

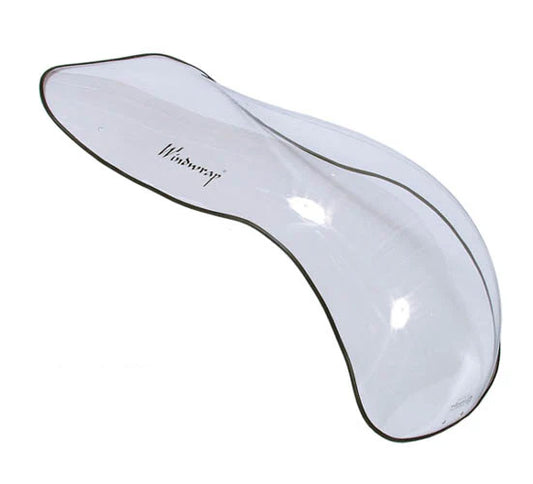

This is only the fairing Lexan bubble, the mounting hardware and clamps are sold separately.

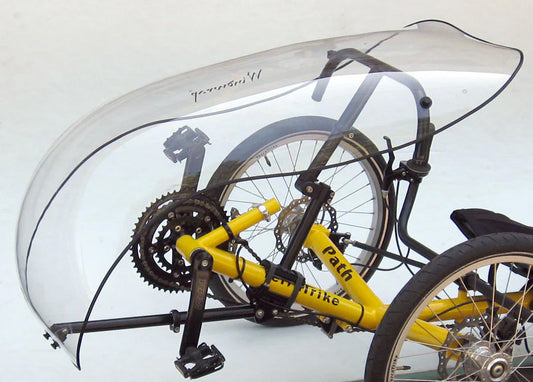

With the speedy aerodynamics and weatherproofing durability that characterize all Windwrap fairings, the popular WINTR Trike/Bike Fairing is the most transformative upgrade available for your trike or short wheelbase bike. This fairing wraps from under the front wheel up to over your knees. Shaped with space around the crank for your feet to move comfortably without being bulky or allowing the weather to creep in, the WINTR Trike/Bike Fairing is also silent enough to sneak up on people! Available tinting adds flair to your ride and keeps out the sun.

Color: Clear

To determine if this is the right fairing for your trike or bike please see the Fit Chart.

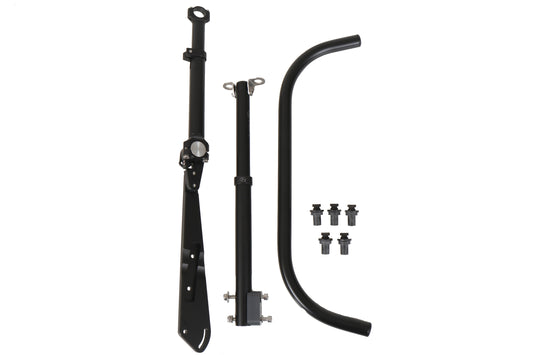

• Click for WINTR Mounting Hardware.
• Click for Fairing Boom Mounting Clamps
• Bubble Dimensions Width 20.75" x Height (Typical Adjust) 22" x Curve Depth 7.5" x Length 42"
• Click for separate Polishing Kit.
• Headlight mounts can be special ordered.
