Auto Racks

Three possible height settings at 6-inch increments. Three different usable pin spacings to help avoid obstacles on trike frames. Uses ball bungee to secure rear tire.

Use this with a 2-inch receiver hitch. A 200 pound tongue load rated hitch is not strong enough for this carrier. Use of any other mounting could result in damage to vehicle and equipment.

Rack weighs 30 pounds.

The ingenious "Alpaca Cinch Straps" provide secure mounting in many non-standard frame tube shapes and styles.

A 1 1/4" hitch version of this rack can be special ordered by calling 800-233-4340. (Because of leverage, the load needs to be limited to 100 pounds with the 1 1/4" receiver hitches.)

Alpaca 1500 Double Tadpole Trike Carrier Assembly Video

Alpaca 1500 Double Tadpole Trike Carrier Loading Instructions

• Warning: Use this carrier with receiver hitches bolted directly to the frame of the vehicle or to a bumper or hitch with a 300 pound or higher tongue load rating.


• Stock version does not work with HP Velotechnik Scorpion full suspension trikes, as the pin spacing interferes with the stabilizer bar on the trike. Alpaca will have a special version of this rack available for HP Velotechnik Scorpion full suspension trikes.

(Note - this is not a complete rack. This is a trike adapter that works with the Hollywood Sport Rider SE Racks - links below)

The Trike Adapter 3 carries one trike* on any Sport Rider SE Rack.  It is an adapter that allows users to carry one trike and one bike. When used with base model HR1450-E or HR1455-E it allows users to carry 1 electric trike (up to 100 lbs) and 1 electric bike (up to 80 lbs).

*The Sport Rider Trike Adapter fits most recumbent trikes (NOT Suitable for adult/industrial style trikes). Track width up to 32” with standard Sport Rider wheel holders, or 36” track width using extra wide Sport Rider wheel holders (not included - please call to special order).

Note: For some trikes, the center Sport Rider mast must be removed. Please check your bike’s wheelbase before ordering or contact us for more information.

Max weight, max wheelbase, and max track width depend on the base rack being used:

HR1450 and HR1400:

The Security Hitch Bolt allows you to lock the DraftMaster Hitch Rack to your vehicle. Ultra strong locking mechanism. Fits 2" receiver hitches.

Nothing beats the Sport Rider Recumbent version for fast, simple loading/unloading of bikes. The Sport Rider recumbent will carry two recumbent bikes (Up to 72" wheelbase) using a padded universal top clamp and adjustable wheel holders. Simply drop the bike into the wheel holders, then slide the padded frame hook down onto the frame to secure the bike. Includes velcro wheel straps, folds easily when not in use. Optional trike adapter and locking hitch pin with cable sold separately. Fits both 1-1/4" & 2" hitch receivers. Includes 2 small wheel adapters.

Can be adapted to carry one trike using the Hollywood Trike Adapter 1.

• Model No. HR1000Z-R
• Capacity: Two Bikes/90 lbs (max. 45 lbs per bike)
• Hitch Size: fits both 1 ¼” and 2”
• Maximum bike wheel base: 72”
• Includes 2 “small wheel” adapters
• Threaded hitch pin (1/2-13) prevents rack sway
• Easy "press lever to release" frame clamps
• Space between bikes: 18”
• Weight: 50 lbs
• Not to be used on any trailer, fifth wheel or towed vehicle

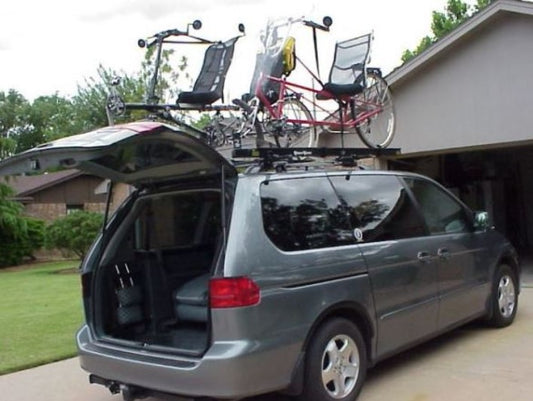

Fits recumbent tandems and long wheelbase recumbents with wheelbases up to 84 inches. Similar to the Bike Topper 84 it includes Atoc's exceptional pivoting head which makes loading tandems a breeze for even one person! Includes quick disconnect tail section.

• Other tandem toppers are available for special order in longer and shorter configurations.
• Pivoting fork mount
• Call for more info.
• See specifitcations for more details.

Locking 9mm skewer locks your fork to any of the Bike Topper racks, Tandem Topper racks, Draftmaster racks, or any rack with a 9mm skewer fork mount. One of the nicest features is that it has a long-throw cam closure, which means that you set it once for your bike and don't have to readjust it to get it around the dropout tabs every time you use it. Specialty Master Lock ML605 included.

The Anti-Sway Device 1.25" will work with all 1 ¼-inch ball mounts or carriers. Like all other products on the market it only reduces sway and rattle. It requires a 9/16-inch wrench to tighten.

(Note - this is not a complete rack. This is a trike adapter that works with the Hollywood Sport Rider Recumbent Rack or the Hollywood Sport Rider SE Rack - links below)

The Trike Adapter 1 carries one trike* on any Sport Rider Rack

*The Sport Rider Trike Adapter fits most recumbent trikes (NOT Suitable for adult/industrial style trikes). Track width up to 32” with standard Sport Rider wheel holders, or 36” track width using extra wide Sport Rider wheel holders (not included - please call to special order).

Note: For some trikes, the center Sport Rider mast must be removed. Please check your bike’s wheelbase before ordering or contact us for more information.

Max wheelbase and Max track width depend on the base rack used.

HR1000Y, HR1450Y, HR1400Y, HR1450Y-E, and HR1455Y-E:

• Max Trike Weight: 60 lbs.
• Max Wheelbase: 60"
• Max Track Width: 32"
• Not To Be Used With Adult Trikes or Electric Recumbent Trikes

  HR1000Y-R and HR1450Z-R:

• Max Trike Weight: 60 lbs.
• Max Wheelbase: 72"
• Max Track Width: 36"
• Not To Be Used With Adult Trikes or Electric Recumbent Trikes

  Trail Rider (HR200):

• Max Trike Weight: 45 lbs.
• Max Wheelbase: 60"
• Max Track Width: 32"
• Not To Be Used With Adult Trikes or Electric Recumbent Trikes

  We stock the Hollywood sport Rider Recumbent Bike Rack #HR1000Y-R and we stock the Hollywood Sport Rider SE Recumbent Rack #HR1450Z-R.

The HR1450Z-R is the recumbent version of the Sport Rider SE2 hitch rack. It will carry 2 recumbent bikes (up to 72” wheel base) and can accommodate an optional trike adapter or 2 bike add-on kit. With the trike adapter (model 3), you can carry one bike (standard or recumbent) plus one trike (any style, including tadpole, delta or adult). The HR1450Z-R features extra wide wheel holders to keep the bikes 18” apart so there is plenty of clearance for recumbent style seats. Small wheel adapters are also included to fit 16” wheel sizes. The rack folds up when not in use, tilts down for easy cargo access and includes a keyed alike locking hitch pin and security cable. bolts. Features patented “no wobble-no tools” hitch tightening system. For 2” hitches only.

Can be adapted to carry one trike using the Hollywood Trike Adapter 1, or can be adapted to carry one bike and one trike using the Hollywood Trike Adapter 3.

• Model No.: HR1450Z-R
• Capacity: Two Bikes/100 lbs (max. 50 lbs per bike)
• Hitch Size: 2” only (Do Not use a 1 1/4"-2" hitch adapter)
• 2 bike add-on kit sold separately, increases carrying capacity
• trike adapter sold separately, increases carrying capacity
• Maximum bike wheel base: 72”
• Maximum tire width: 3”
• Includes keyed alike locking hitch pin and 8’ security cable
• Includes small wheel adapters to fit 16” wheels
• Features Patented “No-Wobble system hitch system
• Self locking, “press lever to release” frame clamps
• Folds flat against car when not in use
• Tilts down for easy cargo door access
• Limited Lifetime Warranty
• Not to be used on any trailer, fifth wheel or towed vehicle

No Q Tower is complete without custom fitted Q Clips. Sleek stainless steel minimizes interference with your door seal, while the custom fit and accompanying base pad connect securely to your vehicle.

What Q Clip you get is based upon your vehicle. Please contact us for fit information for your vehicle, or check out Yakima's fit guide.

Choose from the available options.

The Sport Rider Hitch Bike Rack for Electric Bikes is the E-bike version of the Sport Rider SE2. This rack will carry 2 electric bikes or 2 standard bikes.  It can also accommodate an optional trike adapter add-on kit. With the trike adapter (model 3), you can carry one electric bike plus one trike (any style, including tadpole, delta or adult).

Special features include extra heavy duty wheel holders for heavy load carrying capacity. This hitch rack folds up when not in use, tilts down for easy cargo access and includes a keyed alike locking hitch pin, security cable and locking frame hooks. Features patented No Wobble-No Tools Hitch Tightening System. For 2" hitches only. Model: HR1450Z-E

Can be adapted to carry one bike and one trike using the Hollywood Trike Adapter 3.

Features:

• Capacity: Two Bikes (Max. 80 lbs per bike)
• Hitch Size: 2” only (Do not use a 1 ¼” -2” hitch adapter)
• Maximum bike wheelbase: 60”
• Maximum tire width: 3”
• Features extra heavy duty wheel holders, an internally reinforced frame and external brace for heavy load carrying capacity
• Includes keyed alike locking hitch pin, 8’ security cable and locking frame hooks
• Patented “No-Wobble Hitch System" eliminates slack between the receiver and the rack without the use of tools
• Folds flat against car when not in use
• Tilts down for easy cargo door access
• Limited Lifetime Warranty
• Not to be used on any trailer, fifth wheel or towed vehicle

Crossbars attach to towers, provide stability to your roof rack, and support the sport-specific mounts that carry your gear. The width of your crossbars also determines how much stuff you can carry.

Three size options available: 48in, 58in, 78in.

Perfect for big families, group rides, and tour operators. Constructed of heavy-duty steel, our first-ever vertical bike rack safely hauls up to six mountain bikes to the trailhead. We designed and tested it in the lab and on the road to meet our demanding Yakima standards. The easy-to-operate tilt mechanism with two adjustable mast angles keep your bikes from bumping into your car, truck or SUV and makes accessing the tailgate a breeze. Available in 4-bike or 6-bike options, the HangOver’s vertical orientation carries more bikes in less space. Get ready to session!

Product Details

• Transports up to 4 or 6 bikes using minimal space— 37.5 lbs max per bike
• Foot-operated tilt mechanism changes rack position for easy loading and unloading
• Tilts down and out of the way for easy rear-of-vehicle access
• Securely supports bikes by the fork crown
• Fits suspension-fork bikes only
• Fits fat bike suspension forks
• Soft padding protects the fork’s finish
• Rotating wheel cup accommodates bikes with various wheelbases
• Available in 4-bike (HangOver 4) or 6-bike (HangOver 6) sizes
• 2 mast height positions for improved ground clearance and ease of loading
• 2 mast angles to avoid bike-tire contact with your vehicle
• HitchLock included
• Built-in bottle opener—cheers!
• Fits 2" hitch receivers only
• Compatible with the sold separately BackSwing (HangOver 4 only)
• Add your own bike lock to the integrated lock loop for greater bike security

Product Specs

• Weight: 65.00 lbs
• Dimensions: L 22.00in x W 46.00in x H 60.00in
• Limited Lifetime Warranty

Replacement Velcro wheel strap to secure the wheels to a bike tray. Works with any Atoc, Yakima or Thule tray with a slot in the bottom. Great for deep aero rims.

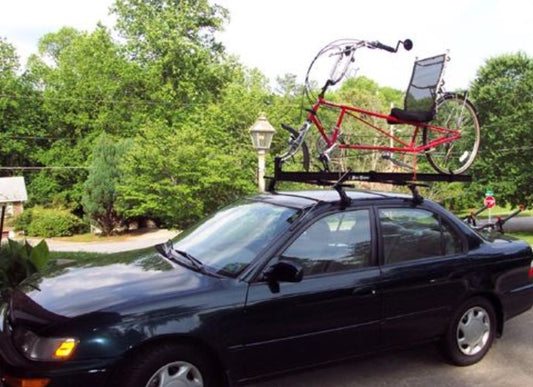

• High quality carriage for most tandems and LWB recumbents, including the Rans Screamer recumbent tandem.
• Carries a single bike too without need for adjustment.
• Features a quick disconnect removable tail section and needs a mere 22" load bar spacing.
• Fixed fork mount
• Handles disc brakes and low rider pannier racks with ease.
• Features a full length wheel tray and infinitely adjustable wheel strap.
• Mounts to Yakima Round Bars and Thule (rectangular) compatioble load bars with included hardware.
• Compatible with Topper Lok.
• Easy to install - no assembly required.
• Made in the U.S.A.

Rail for a Sun EZ-Tadpole Trike for a Draftmaster receiver hitch system.

NOTE: Other parts are required for this compleate install. Please call Hostel Shoppe for details

The Security Hitch Bolt allows you to lock the DraftMaster Hitch Rack to your vehicle. Ultra strong locking mechanism. Fits 1.25" receiver hitches.
