Suspension

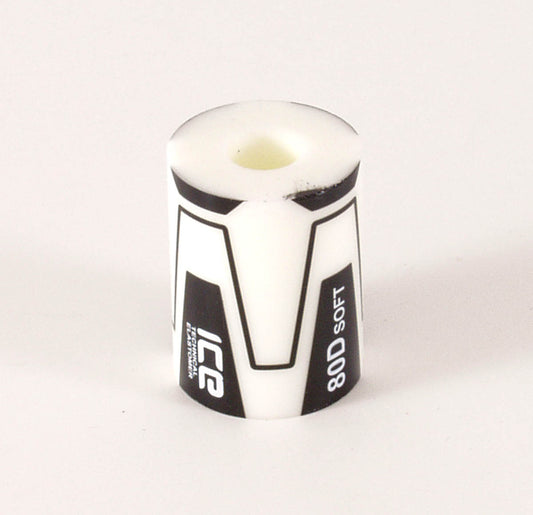

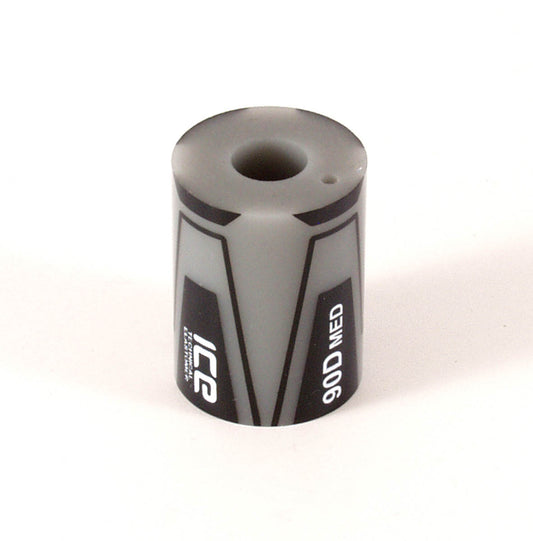

Replacement elastomer for an ICE Trike's rear suspension. View the ICE suspension weight range chart to find your ideal elastomer or elastomer combo (26" wheels) and positioning.

Specifications

• 40mm Elastomers fit 2007 and newer models
• Inner diameter on the 40mm is 11.76mm and outer diameter is 30.17mm
• White is soft
• Grey is medium
• Black is hard

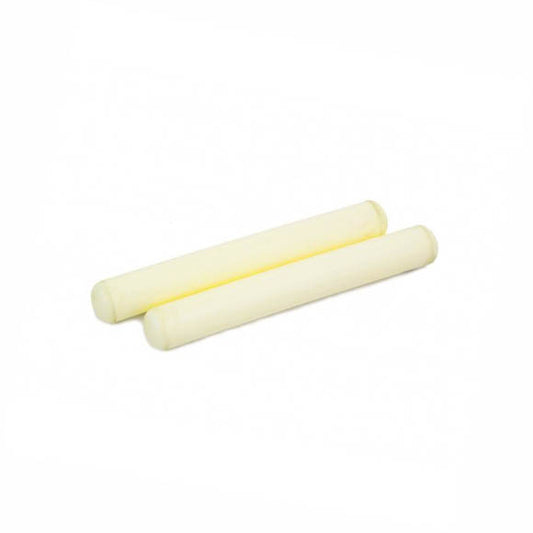

Replacement front suspension elastomers for ICE trikes.  Sold as a pair.

Product Notes:

• Soft for lighter weight riders
• Medium for average weight riders
• Hard for heavier weight riders
• 17mm diameter x 135mm length

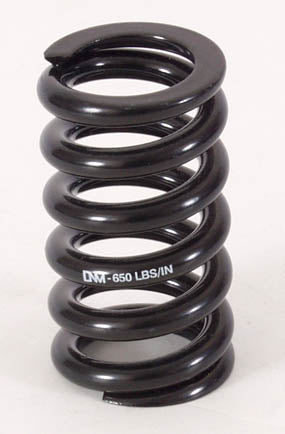

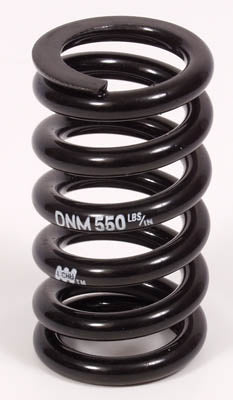

Rear Shock Replacement Springs for your HP Velotechnik. Fits the DNM-DV22 shock.  Click here to view the shock.

Specifications

• 83 mm long
• 450 lbs/in fits rider and load weight range of up to 176 lbs
• 550 lbs/in fits rider and load weight range of 176 to 220 lbs
• 650 lbs/in fits rider and load weight range of 220 to 308 lbs

Replacement shock boot for front suspension struts.

Specifications

• Color: Blue

Make your trike's front suspension softer or harder, depending on your weight and load capacity. Front springs come in red (soft) or yellow (hard), and work in conjunction with the anti-roll bar, which comes in white (soft) and grey (hard).

Product Notes

• Front Suspension Springs sold individually. Buy two for one trike.

Specifications

• Soft coil spring for front suspension struts: Up to 198 lbs
• Hard coil spring for front suspension struts: 198 lbs and over

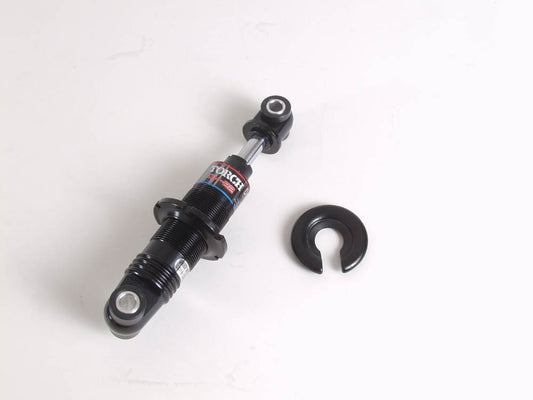

The DNM-DV22 rear spring shock works on HP Velotechnik rear suspension bikes & trikes.

Does not include the spring. Springs are sold separately. Click here to view spring options.

Specifications

• Adjustment: Only preload
• Damper shaft: Hard chromed shock Ø 10 mm ( 0.39 inch ) shaft. Dark hard-anodized AL-6061 “in one piece” shock body. High quality surface finish.
• Riding Style: XC
• Color: Glossy Black
• Size Eyelet to Eyelet: 150mm length
• Eyelet Widths: 24mm and 34mm
• Eyelet ID's: 8mm
• Travel: 27mm
• Fits Grasshopper fx, Street Machine, Speedmachine and all Scorpion models.

Rubber shock boot for ICE trikes with front suspension.

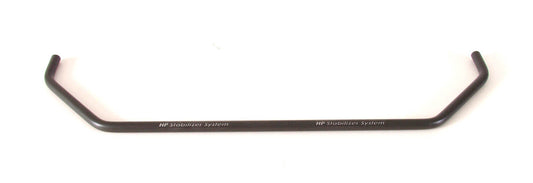

Make your trike's front suspension softer or harder, depending on your weight and load capacity. the anti-roll bar, which comes in white (soft) or grey (hard), works in conjunction with the Front Springs, which come in red (soft) or yellow (hard).

Use with HP Velotechnik trikes equipped with front suspension.

Note: does not fit the Scorpion Plus models.  For the Scorpion fs 20/26 Plus models, use the appropriate strength (Blue, White or Gray) HP Velotechnik Anti Sway Bar for Scorpion fs 20/26 Plus.

Specifications

• Anti-roll bar white (soft) fits riders 198 lbs and under
• Anti-roll bar grey (hard) fits riders 198 lbs and over

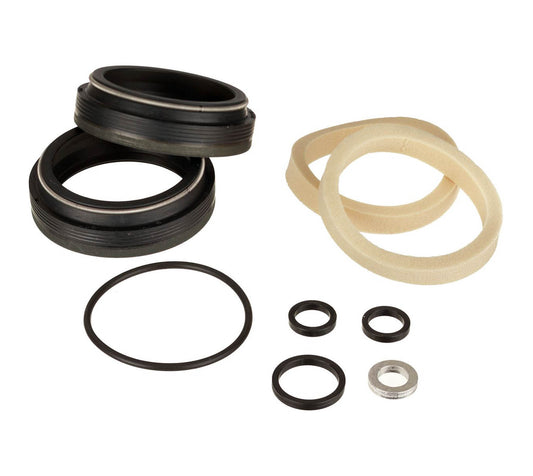

Fox partnered with legendary seal maker SKF to develop their low-friction fork seals. This Fox Dust Wiper Kit is standard equipment on current Fox Forks, and these seals are what give them such a buttery smooth feel (along with the Kashima Coat).

Forks are one of those things that get taken for granted when they're working as they should, and cursed when they're not. Most of the time it's our own fault for not doing the little things like changing the oil. The dust wipers are equally as important as they're the first line of defense from the grit and grime of the trail. Needless to say, it's a good idea to replace them when you do your oil. The Fox Dust Wiper Kit is available to fit all Fox Forks. Choose the set that corresponds with your fork stanchion diameter -- 32, 34, or 36mm.

FEATURES

• Kit contains dust seals, lower seals, and crush washer
• Compatibility: Fox Racing Shox forks
• Recommended Use: 100 hour or annual maintenance
• Designed with SKF

PRODUCT SPECIFICATIONS

• 32mm Flangeless 24g
• 34mm Flangeless 29g
• 36mm Flangeless 29g
• 40mm Flangeless 32g

Replaces the stock rear suspension pivot bolts when you add a HPV Rear Rack to your Street Machine or Speedmachine. Two required for installation - sold each.

Product Notes:

• DIN6912 M8x45mm3

The prices listed on HP Velotechniks price list do not include delivery costs, packaging cost or applicable taxes. Therefore prices listed on hostelshoppe.com will be higher then what is posted on HP Velotechniks website. Hostel Shoppe prices include some of the delivery costs, packaging costs, customs fees and applicable taxes to bring them into this country.

Make your Scorpion's front suspension softer or harder, depending on your weight and load capacity. The stabilizer (anti-roll) bar comes in blue (soft) and grey (hard).  Increases stiffness when cornering.

Fits the Scorpion fs 20 Plus or Scorpion fs 26 Plus.

Product Notes:

• Blue - For riders up to 198 pounds.
• Grey - For riders over 198 pounds.

Make your Scorpion's front suspension softer, depending on your weight and load capacity. The stabilizer (anti-roll) bar comes in white (soft).  Increases stiffness when cornering.

Fits the Scorpion fs 20 Plus or Scorpion fs 26 Plus.

Product Notes:

• White - For riders up to 198 pounds.

Make your trike's front suspension softer or harder, depending on your weight and load capacity. Front springs come in red (soft) or yellow (hard), and work in conjunction with the stabilizer bar, which comes in white (soft) and grey (hard).

Product Notes:
- Front Suspension Springs sold individually.

Necessary to install rear fender or rear rack on Speedmachine with coil spring shock. Reduces travel of rear suspension to prevent interference.

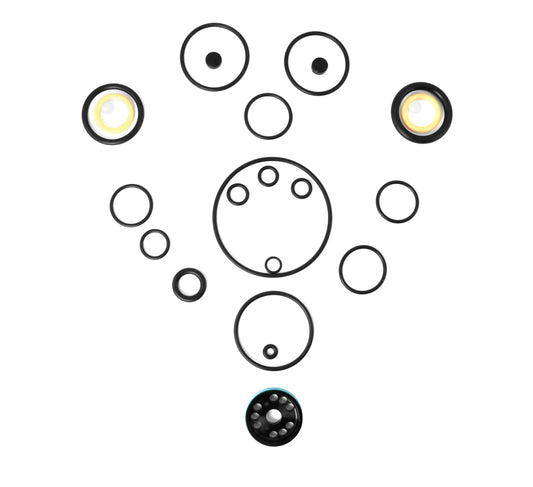

The Fox Rear Shock Rebuild Kit is just what you'll need to keep your FOX Factory Performance or Float X Shock running smoothly on the trail. FOX recommends using this Rear Shock Rebuild Kit for every 125 hours of riding, which means you can usually get away with performing a single rebuild every year, unless you ride a ton throughout the season.

Fox Float rebuild kit for all Fox Float shocks from 2000 until current model shocks.

FEATURES

• Compatibility: FOX Float Factory Shock, FOX Float X Shock
• Recommended Use: bike maintenance
• Includes Fox Float fluid seal lubricant
• Includes 2 quad (Q) rings
• Includes 2 O-rings
• Includes dust wiper
• Includes travel indicator O-ring
• Includes 4 back up rings

  PRODUCT SPECIFICATIONS
• 32mm Flangeless 24g
• 34mm Flangeless 29g
• 36mm Flangeless 29g
• 40mm Flangeless 32g
