Recumbent Trikes

The 700 is designed to be fast and efficient. A low, aerodynamic body position and lightweight vertebrae-spaceframe put the rider it the perfect position to generate power and speed. The 700c Thru-Axle rear wheel offers excellent power transfer, and high gearing gives you the shifting options needed to reach your personal best. Simple and thoughtfully designed, the 700 is engineered to move.

Standard Features:

• Contour-ergonomic mesh seat with side bolsters to hug you while carving S-curves
• Self Centering steering with no Brake Steer
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube

Included accessories and equipment:

• Catrike Neck Rest
• Aero U-profile front wheelset, Zipp Course 30 aero diisc rear wheel
• Rear Disc Parking Brake with separate brake lever
• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Built in Headlight Mount

Sizing Notes:

• This trike fits x-seams from 39" to 46".  A trike with a longer boom can be special ordered for an additional $25.
• The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
• The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
• Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lb

Specifications:

Recumbent Tricycle Name: Catrike 700
Electric Assist: None
Parking Brake: Rear Parking Brake Avid BB7-s Mtn Disc
Rear Suspension: None
Front Suspension: None
Folding: No
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  39 - 46"
Total Weight:  34 lbs
Seat Height:  8.5"
Overall Length:  82"
Overall Width:  31"
Overall Height:  26.75"
Folded Length:  N/A
Folded Width:  N/A
Folded Height:  N/A
BB Height:  17.5"
Seat Angle:  25 degrees
Seat Type & Size:   Padded Mesh seat
Wheelbase: 46"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  23 - 128"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid FR-5
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket:  FSA Road MegaExo
Cassette / Cog:  SRAM 11/36t 10 Speed
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm, 12mm Thru Axle
Front Tire:  Schwalbe Durano 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Durano 700 x 23c (23-622)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/18/2020

Catrike's many years of engineering and experience have come together to create the Dumont. The rear suspension features a highly progressive travel path combined with a custom spring rate and sophisticated damping for a perfect balance of performance and comfort. The shock is actuated via a CNC machined swingarm pivoting on precision cartridge bearings to allow the suspension system to operate with seamless efficiency. Up front, the Dumont employs Catrike's anti-dive patent-pending front suspension spindle to take the edge off while allowing all wheels to move independently. The result is that the Dumont stays firmly planted on the ground with the active suspension. The long and low rider position and fully adjustable boom provide the stable weight distribution needed for maximum performance while the ergonomic backrest is fully adjustable for the perfect fit. A 26-inch rear wheel and folding frame round out the Dumont to provide the ultimate ride.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube
• Roller wheels for rolling when folded

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Axiom Journey Adjustable Rear Rack with the Hostel Shoppe Catrike Rack Adapter Kit for mounting
• Catrike Suspension Front Fenders 20" Pair

Sizing Notes:

• This trike fits x-seams from 39" to 46".  A trike with a longer boom can be special ordered for an additional $25.
• The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
• The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
• Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

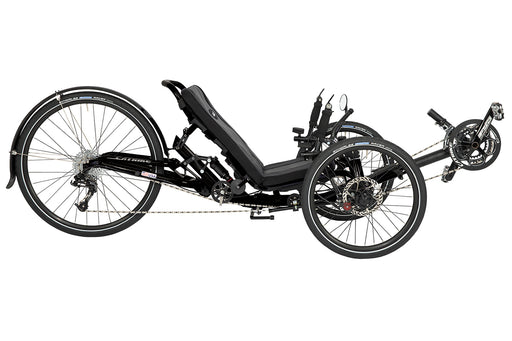

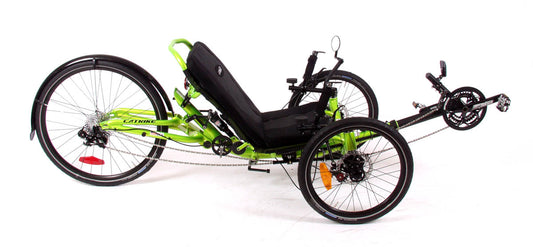

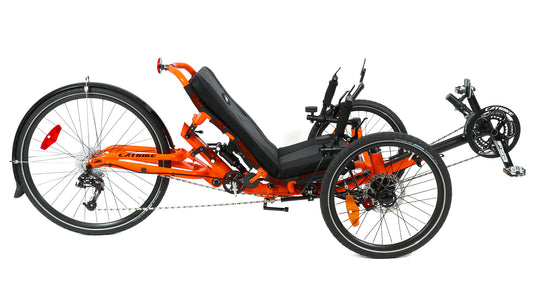

Recumbent Tricycle Name: Catrike Dumont
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: Rock Shox Monarch R (2" of travel)
Front Suspension: Elastomer (0.5" of travel)
Folding: Yes
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  39 - 46"
Total Weight:  43 lbs
Seat Height:  10"
Overall Length:  82"
Overall Width:  32.5"
Overall Height:  28"
Folded Length:  45.25"
Folded Width:  32.5"
Folded Height:  25"
BB Height:  16.5"
Seat Angle:  42 - 49 degrees
Seat Type & Size:  Padded w/ Adjustable seat angle
Wheelbase:  45.5"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  21 - 118"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid Speed Dial 7
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket:  FSA Road MegaExo
Cassette / Cog:  SRAM 10 Speed 11/36t
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm QR
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/18/2020

Catrike's many years of engineering and experience have come together to create the Dumont. The rear suspension features a highly progressive travel path combined with a custom spring rate and sophisticated damping for a perfect balance of performance and comfort. The shock is actuated via a CNC machined swingarm pivoting on precision cartridge bearings to allow the suspension system to operate with seamless efficiency. Up front, the Dumont employs Catrike's anti-dive patent-pending front suspension spindle to take the edge off while allowing all wheels to move independently. The result is that the Dumont stays firmly planted on the ground with the active suspension. The long and low rider position and fully adjustable boom provide the stable weight distribution needed for maximum performance while the ergonomic backrest is fully adjustable for the perfect fit. A 26-inch rear wheel and folding frame round out the Dumont to provide the ultimate ride.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube
• Roller wheels for rolling when folded

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Axiom Journey Adjustable Rear Rack with the Hostel Shoppe Catrike Rack Adapter Kit for mounting
• Catrike Suspension Front Fenders 20" Pair

Sizing Notes:

• This trike fits x-seams from 39" to 46".  A trike with a longer boom can be special ordered for an additional $25.
• The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
• The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
• Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

Recumbent Tricycle Name: Catrike Dumont
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: Rock Shox Monarch R (2" of travel)
Front Suspension: Elastomer (0.5" of travel)
Folding: Yes
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  39 - 46"
Total Weight:  43 lbs
Seat Height:  10"
Overall Length:  82"
Overall Width:  32.5"
Overall Height:  28"
Folded Length:  45.25"
Folded Width:  32.5"
Folded Height:  25"
BB Height:  16.5"
Seat Angle:  42 - 49 degrees
Seat Type & Size:  Padded w/ Adjustable seat angle
Wheelbase: 45.5"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  21 - 118"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid Speed Dial 7
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket:  FSA Road MegaExo
Cassette / Cog:  SRAM 10 Speed 11/36t
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm, 12x142 Thru Axle
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/18/2020

Catrike's many years of engineering and experience have come together to create the Dumont. The rear suspension features a highly progressive travel path combined with a custom spring rate and sophisticated damping for a perfect balance of performance and comfort. The shock is actuated via a CNC machined swingarm pivoting on precision cartridge bearings to allow the suspension system to operate with seamless efficiency. Up front, the Dumont employs Catrike's anti-dive patent-pending front suspension spindle to take the edge off while allowing all wheels to move independently. The result is that the Dumont stays firmly planted on the ground with the active suspension. The long and low rider position and fully adjustable boom provide the stable weight distribution needed for maximum performance while the ergonomic backrest is fully adjustable for the perfect fit. A 26-inch rear wheel and folding frame round out the Dumont to provide the ultimate ride.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube
• Roller wheels for rolling when folded

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Axiom Journey Adjustable Rear Rack with the Hostel Shoppe Catrike Rack Adapter Kit for mounting
• Catrike Suspension Front Fenders 20" Pair

Sizing Notes:

• This trike fits x-seams from 39" to 46".  A trike with a longer boom can be special ordered for an additional $25.
• The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
• The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
• Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

Recumbent Tricycle Name: Catrike Dumont
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: Rock Shox Monarch R (2" of travel)
Front Suspension: Elastomer (0.5" of travel)
Folding: Yes
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  39 - 46"
Total Weight:  43 lbs
Seat Height:  10"
Overall Length:  82"
Overall Width:  32.5"
Overall Height:  28"
Folded Length:  45.25"
Folded Width:  32.5"
Folded Height:  25"
BB Height:  16.5"
Seat Angle:  42 - 49 degrees
Seat Type & Size:  Padded w/ Adjustable seat angle
Wheelbase:  45.5"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  21 - 118"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid Speed Dial 7
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket:  FSA Road MegaExo
Cassette / Cog:  SRAM 10 Speed 11/36t
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm QR
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/18/2020

Eola captures the passion and engineering of Catrike in a sleek, modern design. Built with a purpose, the Eola features a lightweight space frame, 20-inch wheels and the latest drivetrain technology that creates a nimble and spirited ride.

At the heart of the Eola is a SRAM 1 x 11 drivetrain that delivers a full range of gears and flawless performance. Like all Catrikes, it comes with industry-leading features: padded mesh seat, clipless pedals, rear fender, computer sensor mount, locking brake levers, along with a flag and flag holder for increased visibility. With Catrike's knowledge and experience in manufacturing, the Eola not only has exceptional handling and riding characteristics, it has been engineered for manufacturing and assembly efficiency - assuring value and quality.

Enjoy the ride with the Eola.

Standard Features:

• Padded Seat
• Self Centering steering
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Parking Brake Levers
• Built in Headlight Mount

Sizing Notes:

• This trike fits x-seams from 36" to 46".  A trike with a longer boom can be special ordered for an additional $25.
• The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
• The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
• Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Popular Optional Accessories:

• Catrike Neckrest
• Catrike Rigid Front Fenders 20" Pair

Specifications:

Recumbent Tricycle Name: Catrike Eola Go Mango
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: None
Front Suspension: None
Folding: No
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  36 - 46"
Total Weight:  33 lbs
Seat Height:  9.5"
Overall Length:  73"
Overall Width:  32.5"
Overall Height:  23.5"
Folded Length:  N/A
Folded Width:  N/A
Folded Height:  N/A
BB Height:  14.5"
Seat Angle:  41 degrees
Seat Type & Size:  Padded
Wheelbase:  39"
Pedals:  Combination platform w/ SPD clipless
Gear Range:  18 - 70"
Brakes:  Avid BB7 Disc
Brake Levers:  Catrike locking parking brake
Rear Derailleur:  SRAM NX-11 Speed
Front Derailleur:  N/A
Shift Levers:  SRAM NX-11 Speed Grip
Crankset:  FSA 42t Omega 165mm
Bottom Bracket:  FSA Mega Exo
Cassette / Cog:  SRAM 11/42t 11 Speed
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm, 12x142 Thru Axle
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type:  Presta
Chain:  FSA
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/18/2020

The sense of freedom that comes with taking the path less traveled can be yours with just a pedal stroke. Exploring hidden roads and seeing nature sliding past in near silence is an experience only rolling through the country on a Catrike can provide. The Expedition offers a beautiful and sleek machine combined with a long, comfortable body position for all-day riding. To be prepared for any adventure, the Expedition comes equipped with a space frame for heavy packs. The 26-inch rear wheel provides a broad range of gearing for a variety of terrain. There are so many roads to explore that you may never see them all, but it won't be for lack of trying.

Standard Features:

• Self Centering steering with no Brake Steer
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube

Included accessories and equipment:

• Catrike Neck rest
• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Sizing Notes:

• This trike fits x-seams from 39" to 46".  A trike with a longer boom can be special ordered for an additional $25.
• The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
• The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
• Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

Recumbent Tricycle Name: Catrike Expedition
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: None
Front Suspension: None
Folding: No
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  39 - 46"
Total Weight:  35 lbs
Seat Height:  10"
Overall Length:  77"
Overall Width:  32.5"
Overall Height:  26"
Folded Length:  N/A
Folded Width:  N/A
Folded Height:  N/A
BB Height:  16.5"
Seat Angle:  37 degrees
Seat Type & Size:   Mesh seat
Wheelbase: 43"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  21 - 118"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid Speed Dial 7
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket:  FSA Road MegaExo
Cassette / Cog:  SRAM 10 Speed 11/36t
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm, 12x142 Thru Axle
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/18/2020

Equipped by the Hostel Shoppe with a shortened boom and short cranks, this compact model is ideal for shorter riders.

The Villager brings together engineering and innovation into one easy to use machine. A high seat and stable platform mated to an adjustable frame provide a comfortable and confident ride. Avid disc brakes offer best in class stopping power, and the Ackermann steering geometry - a standard design feature on all Catrike models - keeps course corrections smooth and stable. The Villager is ideal for adventures in your neighborhood and beyond.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering with no Brake Steer
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Axiom Journey Adjustable Rear Rack with the Hostel Shoppe Catrike Rack Adapter Kit for mounting
• Catrike Rigid Front Fenders 20" Pair

Sizing Notes:

• This compact trike fits x-seams from 36" to 43"
• Riders should call us with their height, weight and X-seam for sizing assistance.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

Recumbent Tricycle Name: Catrike Villager Compact
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: None
Front Suspension: None
Folding: No
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  36 - 43"
Total Weight:  34 lbs.
Seat Height:  12.5"
Overall Length:  69"
Overall Width:  32.5"
Overall Height:  28.5"
Folded Length:  N/A
Folded Width:  N/A
Folded Height:  N/A
BB Height:  17"
Seat Angle:  47 - 58 degrees
Seat Type & Size:  Padded seat w/ Adjustable seat angle
Wheelbase: 36"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  16 - 90"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid Speed Dial 7
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  Custom 145mm crank length 30/39/52t
Bottom Bracket:  Square Taper
Cassette / Cog:  SRAM 10 Speed 11-36t
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm QR
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/30/2019

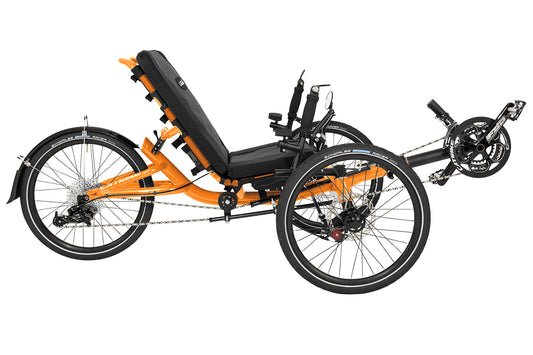

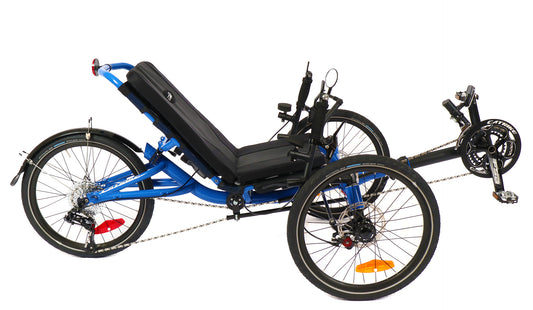

The Villager brings together engineering and innovation into one easy to use machine. A high seat and stable platform mated to an adjustable frame provide a comfortable and confident ride. Avid disc brakes offer best in class stopping power, and the Ackermann steering geometry - a standard design feature on all Catrike models - keeps course corrections smooth and stable. The Villager is ideal for adventures in your neighborhood and beyond.

Standard Features:

• Padded Seat with Ergonomic adjustable seat back
• Self Centering steering with no Brake Steer
• Ackerman Steering Compensation - Different turn radius for inside and outside wheel
• Anodized Front Boom with adjustment scale
• Quick-Release Indexing Boom Clamp
• Aluminium Rod Ends
• Low Friction PTFE Chain Tube

Included accessories and equipment:

• Platform Pedals (one side) / SPD compatible clipless pedals (other side)
• Left Mirror & mirror mount
• Computer Sensor Mount
• Rear Fender
• Flag & Flag Mount
• Proprietary Catrike Handrests
• Parking Brake Levers
• Built in Headlight Mount

Popular Optional Accessories:

• Catrike Neckrest
• Axiom Journey Adjustable Rear Rack with the Hostel Shoppe Catrike Rack Adapter Kit for mounting
• Catrike Rigid Front Fenders 20" Pair

Sizing Notes:

• This compact trike fits x-seams from 36" to 43"
• Riders should call us with their height, weight and X-seam for sizing assistance.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit: 275 lbs

Specifications:

Recumbent Tricycle Name: Catrike Villager
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: None
Front Suspension: None
Folding: No
Weight Limit:  275 lbs
Manufacturer’s X-seam Range:  39 - 46"
Total Weight:  34 lbs.
Seat Height:  12.5"
Overall Length:  69"
Overall Width:  32.5"
Overall Height:  28.5"
Folded Length:  N/A
Folded Width:  N/A
Folded Height:  N/A
BB Height:  17"
Seat Angle:  47 - 58 degrees
Seat Type & Size:  Padded seat w/ Adjustable seat angle
Wheelbase: 36"
Pedals:  Combination Platform w/ SPD clipless
Gear Range:  16 - 90"
Brakes:  Avid BB7 Disc
Brake Levers:  Avid Speed Dial 7
Rear Derailleur:  SRAM GX 10 Speed
Front Derailleur:  Microshift Triple
Shift Levers:  SRAM 500 TT Bar End
Crankset:  FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket:  FSA Road MegaExo
Cassette / Cog:  SRAM 10 Speed 11/36t
Front Hub:  Catrike Disc
Rear Hub:  Catrike 135mm QR
Front Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 20 x 1.5" (40-406)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA Zero Stack
Steering:  Direct
Last Update:  1/21/2020

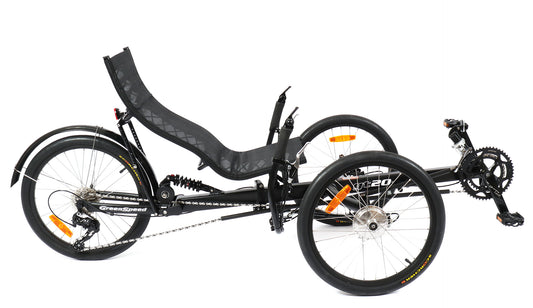

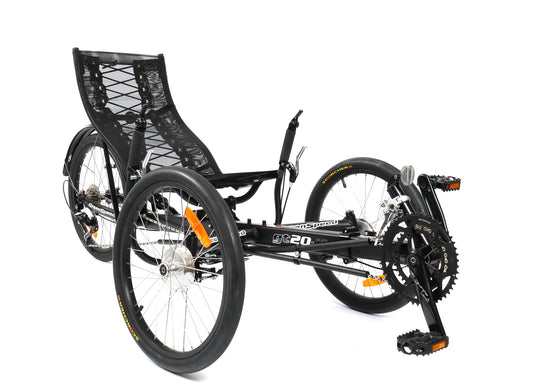

The Greenspeed GT20 is exceptionally easy to ride. Introduced at the 2015 Recumbent Cycle-Con show in Cincinnati, four different riders claimed it was the best trike at the show, and the guy who bought the 1st prototype claimed he could climb hills in two gears higher than he could on his other 4 trikes.

A carefully engineered light-weight frame, low rolling resistance tires, and an efficient drive train provide exceptional performance, which makes this trike a real joy to ride.  Whether one uses it for commuting, touring, or just exercising and having fun!

• Light, accurate steering with a tight turning radius.
• Seat is adjustable for height and angle with quick release levers.
• Stiff, light frame reduces frame flex.
• Shimano Ultegra Bar End shifters make gear changes easy.
• Easy entry/exit due to curved cross member.
• Narrow to fit through doors and gates.
• Folds easily for transport and storage.
• X-seam range: 38" to 48.5"

Specifications:

Recumbent Tricycle Name: GT 20
Electric Assist: No
Parking Brake: Yes
Rear Suspension: None
Front Suspension: None
Folding: Yes
Weight Limit:  250 lbs
Manufacturer’s X-seam Range:  38 - 48.5"
Total Weight:  37 lbs
Seat Height:  12 - 17"
Overall Length:  76"
Overall Width:  31"
Overall Height:  31"
Folded Length:  35"
Folded Width:  31"
Folded Height:  28"
BB Height:  13 - 14"
Seat Angle:  30 - 48 degrees
Seat Type & Size:  Mesh
Wheelbase: 39"
Pedals:  Platform
Gear Range:  16 - 97"
Brakes:  Sturmey Archer Drum
Brake Levers:  Promax
Rear Derailleur:  Shimano Altus 8 speed
Front Derailleur:  Microshift
Shift Levers:  Shimano Bar end shifters
Crankset:  165mm Crankarms 28, 42, 56t Chainrings
Bottom Bracket:  Square Taper
Cassette / Cog:  8 speed 11-34t
Front Hub:  Drum
Rear Hub:  Quick Release
Front Tire:  Greenspeed Scorcher 20 x 1.5 (40-406)
Rear Tire:  Greenspeed Scorcher 20 x 1.5 (40-406)
Tube Type:  Shrader (standard)
Chain:  8 speed
Headset: Integrated
Steering:  Indirect
Last Update:  2/19/2020

 Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

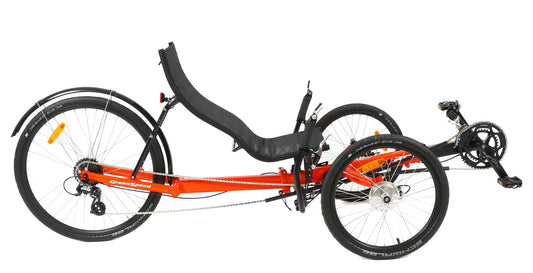

The new Greenspeed GT26 is an exceptionally easy to ride trike. Introduced in 2017, the GT26 builds upon the popular GT20 and introduces it with a 26" rear wheel.
Sporting a carefully engineered lightweight frame, low rolling resistance tires and an efficient drivetrain, it provides exceptional performance which make this trike a real joy to ride for commuting, touring, or just exercising and having fun!

Features:

• Light, accurate steering with tight turning circle.
• Seat is adjustable for height and angle with quick release levers.
• Stiff, light frame reduces frame flex.
• Shimano Ultegra Bar End shifters make gear changes easy.
• Easy entry/exit due to curved cross member.
• Narrow to fit through doors and gates.
• Folds easily for transport and storage.
• Includes Chain Gobbler.

Traditionally the main problem when using a 26" wheel on a trike is wheel flex, which can make it less stable at speed. Greenspeed has taken four steps to eliminate wheel flex:

1. The hub is much wider across the flanges than a standard hub, to increase the angle of the spokes and to make the wheel stiffer.
2. There is NO dish in the wheel, again making it stiffer and stronger.
3. They have used 13g spokes instead of 14g spokes.
4. They have used 36 spokes instead of the more common 32 spokes.

Note: You may notice that the mudguard boss does NOT align with the non-dished rear wheel. This was deliberate, as the spray from a wheel in wet conditions only comes off the centre of the tire and thus the mudguard does not need to be exactly centered over the tire.  Furthermore, *IF* you the consumer decides to have say a Rohloff hub fitted, Greenspeed has provided the OEM dropouts and extra cable guides so that the mudguard will not be as off-center, since wheels are central when they built dishless. Plus, if you do prefer to have the rear wheel dished, then the mudguard will not be as far off-center in that case either.

Specifications:

Recumbent Tricycle Name: Greenspeed GT26

X-seam range: 38" to 48.5"
Frame Construction: Aluminun alloy 7005 folding
Fork: n/a
Rear Derailleur: Shimano Altus
Front Derailleur: Microshift
Shift Levers: Shimano Ultegra Bar End
Crankset: Shun 165mm 56/42/28t
Bottom Bracket: Square Taper
Headset: n/a
Cassette: 8spd 11-34t
Brake Calipers: Twin Sturmey Archer Drum
Brake Levers: Pro Max Locking
Drum Brake: Twin Sturmey Archer 90mm Drums
Front Hub: Sturmey Archer Drum
Rear Hub: Shimano SH-T3000
Front Rim: 20" alloy
Rear Rim: 26" alloy
Spokes: Stainless Steel
Chain: YBN S8
Pedals: platform
Front Tire: Greenspeed Scorcher Slicks 20x1.5
Rear Tire: Greenspeed Scorcher Slicks 26x1.5
Tube Type: SV
Frame Style: QR seat and center fold
Steering: Centre Point Ackerman
BB Height: 13" - 14"
Gear Range: 16" - 108"
Seat Height: 12" - 17"
Total Weight: 37 lbs
Wheelbase: 39"
Overall Length: 76" Adjustable
Overall Width: 31"
Seat Angle: 30-48 degrees
Weight Limit: 250lb

Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

This trike is a Recumbent Cycle Con Demo and has been test ridden.

The GreenSpeed Magnum, which was introduced in 2012, has been one of Greenspeed's best selling trikes. It builds on over twenty years of designing and building the world’s best touring trikes, with the prototype being tested climbing the Himalayas.

New for the Magnum a 26" rear wheel! Cruise along in comfort with the Big Wheel Magnum.
The Magnum has a large number of features which make it particularly easy and enjoyable to ride. The cross member is angled back in a "V" to allow the rider to get their legs closer to the seat, which is adjustable for height to make entry and exit easy. The seat is also adjustable for angle, so you can choose the amount of recline which is the most comfortable for you. The frame folds and all wheels have quick releases, so it is easy to transport!

The Magnum is designed to take riders up to 400 lbs, so it is very strong.  Carfted from 7005 aluminium alloy, it is not a heavy machine either.  Plus with its large Big Apple tires, high ground clearance, and wide range of gears, it is equally at home offroad as it is on the road.

The seat was designed by a chiropractor and has built-in suspension and ventilation, which with the balloon tires will give you a comfortable ride. Plus, the famous GreenSpeed steering geometry and the oversize brakes make steering and braking effortless.

• Suitable for on and off road.
• Seat is adjustable for height and angle using quick release levers.
• Suitable for riders from 100 lbs to 400 lbs.
• Great for touring and commuting.
• Easily folds for transport and storage.

Specifications:

Recumbent Tricycle Name: Greenspeed Magnum
Frame Construction: Aluminun alloy 7005 folding
Fork: n/a
Rear Derailleur: Shimano Deore Long Cage
Front Derailleur: Microshift
Shift Levers: Shimano Dura Ace Bar End
Crankset: Shun SS-ZO-300 165mm 52/42/30t
Bottom Bracket: External Bearing
Headset: n/a
Cassette: 9spd 11-34t
Brake Calipers: Twin Sturmey Archer Drum
Brake Levers: Sturmey Archer Locking
Drum Brake: Twin Sturmey Archer 90mm Drums
Front Hub: Sturmey Archer Drum Push Button QR
Rear Hub: Chosen
Front Rim: 20" alloy
Rear Rim: 26" alloy
Spokes: Stainless Steel
Chain: YBN S9
Pedals: platform
Front Tire: Schwalbe Big Apple 20x2.0
Rear Tire: Schwalbe Big Apple 26x2.0
Tube Type: SV
Frame Style: QR seat and center fold
Steering: Centre Point Ackerman
BB Height: 14" - 16"
Gear Range: 18" - 95"
Seat Height: 14" - 18"
Total Weight: 44 lbs
Wheelbase: 45"
Overall Length: 75" - 84"
Overall Width: 36"
Seat Angle: 30-48 degrees
Weight Limit: 400 lbs

Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

The GreenSpeed Magnum, which was introduced in 2012, has been one of Greenspeed's best selling trikes. It builds on over twenty years of designing and building the world’s best touring trikes, with the prototype being tested climbing the Himalayas.

The Magnum has a large number of features which make it particularly easy and enjoyable to ride. The cross member is angled back in a "V" to allow the rider to get their legs closer to the seat, which is adjustable for height to make entry and exit easy. The seat is also adjustable for angle, so you can choose the amount of recline which is the most comfortable for you. The frame folds and all wheels have quick releases, so it is easy to transport!

The Magnum is designed to take riders up to 400 lbs, so it is very strong.  Carfted from 7005 aluminium alloy, it is not a heavy machine either.  Plus with its large Big Apple tires, high ground clearance, and wide range of gears, it is equally at home offroad as it is on the road.

The seat was designed by a chiropractor and has built-in suspension and ventilation, which with the balloon tires will give you a comfortable ride. Plus, the famous GreenSpeed steering geometry and the oversize brakes make steering and braking effortless.

• Suitable for on and off road.
• Seat is adjustable for height and angle using quick release levers.
• Suitable for riders from 100 lbs to 400 lbs.
• Great for touring and commuting.
• Easily folds for transport and storage.

Specifications:

Recumbent Tricycle Name: Magnum
Electric Assist: no
Parking Brake: yes
Rear Suspension: none
Front Suspension: none
Folding: yes
Weight Limit:  400 lbs
Manufacturer’s X-seam Range:  35 - 50" *
Total Weight:  44 lbs
Seat Height:  14 - 18"
Overall Length:  75 - 84"
Overall Width:  32"
Overall Height:  32"
Folded Length:  38"
Folded Width:  32"
Folded Height:  26"
BB Height:  14 - 16"
Seat Angle:  30 - 48 degrees
Seat Type & Size:  Magnum Mesh
Wheelbase: 45"
Pedals:  Platform
Gear Range:  17 - 90"
Brakes:  Sturmey Archer XL-SD 90mm Drum
Brake Levers:  Sturmey Archer
Rear Derailleur:  Shimano Deore Long Cage 9 speed
Front Derailleur:  Microshift
Shift Levers:  Shimano Bar end shifters
Crankset:  165mm Crankarms 30, 42, 52t Chainrings
Bottom Bracket:  External
Cassette / Cog:  9 speed 11-34t
Front Hub:  Drum
Rear Hub:  Quick Release
Front Tire:  Schwalbe Big Apple 20 x 2.0 (50-406)
Rear Tire:  Schwalbe Big Apple 20 x 2.0 (50-406)
Tube Type:  Shrader (standard)
Chain:  9 speed
Headset:  Integrated
Steering:  Indirect
Last Update:  2/19/2019

 Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

The GreenSpeed Magnum, which was introduced in 2012, has been one of Greenspeed's best selling trikes. It builds on over twenty years of designing and building the world’s best touring trikes, with the prototype being tested climbing the Himalayas.

The Magnum has a large number of features which make it particularly easy and enjoyable to ride. The cross member is angled back in a "V" to allow the rider to get their legs closer to the seat, which is adjustable for height to make entry and exit easy. The seat is also adjustable for angle, so you can choose the amount of recline which is the most comfortable for you. The frame folds and all wheels have quick releases, so it is easy to transport!

The Magnum is designed to take riders up to 400 lbs, so it is very strong.  Carfted from 7005 aluminium alloy, it is not a heavy machine either.  Plus with its large Big Apple tires, high ground clearance, and wide range of gears, it is equally at home offroad as it is on the road.

The seat was designed by a chiropractor and has built-in suspension and ventilation, which with the balloon tires will give you a comfortable ride. Plus, the famous GreenSpeed steering geometry and the oversize brakes make steering and braking effortless.

• Suitable for on and off road.
• Seat is adjustable for height and angle using quick release levers.
• Suitable for riders from 100 lbs to 400 lbs.
• Great for touring and commuting.
• Easily folds for transport and storage.

Specifications:

Recumbent Tricycle Name: Magnum
Electric Assist: no
Parking Brake: yes
Rear Suspension: none
Front Suspension: none
Folding: yes
Weight Limit:  400 lbs
Manufacturer’s X-seam Range:  35 - 50" *
Total Weight:  44 lbs
Seat Height:  14 - 18"
Overall Length:  75 - 84"
Overall Width:  32"
Overall Height:  32"
Folded Length:  38"
Folded Width:  32"
Folded Height:  26"
BB Height:  14 - 16"
Seat Angle:  30 - 48 degrees
Seat Type & Size:  Magnum Mesh
Wheelbase: 45"
Pedals:  Platform
Gear Range:  17 - 90"
Brakes:  Sturmey Archer XL-SD 90mm Drum
Brake Levers:  Sturmey Archer
Rear Derailleur:  Shimano Deore Long Cage 9 speed
Front Derailleur:  Microshift
Shift Levers:  Shimano Bar end shifters
Crankset:  165mm Crankarms 30, 42, 52t Chainrings
Bottom Bracket:  External
Cassette / Cog:  9 speed 11-34t
Front Hub:  Drum
Rear Hub:  Quick Release
Front Tire:  Schwalbe Big Apple 20 x 2.0 (50-406)
Rear Tire:  Schwalbe Big Apple 20 x 2.0 (50-406)
Tube Type:  Shrader (standard)
Chain:  9 speed
Headset:  Integrated
Steering:  Indirect
Last Update:  2/19/2019

 Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

The GreenSpeed Magnum, which was introduced in 2012, has been one of Greenspeed's best selling trikes. It builds on over twenty years of designing and building the world’s best touring trikes, with the prototype being tested climbing the Himalayas.

The Magnum has a large number of features which make it particularly easy and enjoyable to ride. The cross member is angled back in a "V" to allow the rider to get their legs closer to the seat, which is adjustable for height to make entry and exit easy. The seat is also adjustable for angle, so you can choose the amount of recline which is the most comfortable for you. The frame folds and all wheels have quick releases, so it is easy to transport!

The Magnum is designed to take riders up to 400 lbs, so it is very strong.  Carfted from 7005 aluminium alloy, it is not a heavy machine either.  Plus with its large Big Apple tires, high ground clearance, and wide range of gears, it is equally at home offroad as it is on the road.

The seat was designed by a chiropractor and has built-in suspension and ventilation, which with the balloon tires will give you a comfortable ride. Plus, the famous GreenSpeed steering geometry and the oversize brakes make steering and braking effortless.

• Suitable for on and off road.
• Seat is adjustable for height and angle using quick release levers.
• Suitable for riders from 100 lbs to 450 lbs.
• Great for touring and commuting.
• Easily folds for transport and storage.
• Trike includes quick adjust kit.

Specifications:

Recumbent Tricycle Name: Greenspeed Magnum XL

X-seam range: 42" to 52"
Frame Construction: Aluminun alloy 7005 folding
Fork: n/a
Rear Derailleur: Shimano Deore Long Cage
Front Derailleur: Microshift
Shift Levers: Shimano Dura Ace Bar End
Crankset: Shun SS-ZO-300 165mm 52/42/30t
Bottom Bracket: External Bearing
Headset: n/a
Cassette: 9spd 11-34t
Brake Calipers: Twin Sturmey Archer Drum
Brake Levers: Sturmey Archer Locking
Drum Brake: Twin Sturmey Archer 90mm Drums
Front Hub: Sturmey Archer Drum Push Button QR
Rear Hub: Chosen
Front Rim: 20" alloy
Rear Rim: 20" alloy
Spokes: Stainless Steel
Chain: YBN S9
Pedals: platform
Front Tire: Schwalbe Big Apple 20x2.0
Rear Tire: Schwalbe Big Apple 20x2.0
Tube Type: SV
Frame Style: QR seat and center fold
Steering: Centre Point Ackerman
BB Height: 14" - 16"
Gear Range: 18" - 95"
Seat Height: 14" - 18"
Total Weight: 44 lbs
Wheelbase: 45"
Overall Length: 75" - 84"
Overall Width: 36"
Seat Angle: 30-48 degrees
Weight Limit: 450 lbs

Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

The GreenSpeed Magnum, which was introduced in 2012, has been one of Greenspeed's best selling trikes. It builds on over twenty years of designing and building the world’s best touring trikes, with the prototype being tested climbing the Himalayas.

The Magnum has a large number of features which make it particularly easy and enjoyable to ride. The cross member is angled back in a "V" to allow the rider to get their legs closer to the seat, which is adjustable for height to make entry and exit easy. The seat is also adjustable for angle, so you can choose the amount of recline which is the most comfortable for you. The frame folds and all wheels have quick releases, so it is easy to transport!

The Magnum is designed to take riders up to 400 lbs, so it is very strong.  Carfted from 7005 aluminium alloy, it is not a heavy machine either.  Plus with its large Big Apple tires, high ground clearance, and wide range of gears, it is equally at home offroad as it is on the road.

The seat was designed by a chiropractor and has built-in suspension and ventilation, which with the balloon tires will give you a comfortable ride. Plus, the famous GreenSpeed steering geometry and the oversize brakes make steering and braking effortless.

• Suitable for on and off road.
• Seat is adjustable for height and angle using quick release levers.
• Suitable for riders from 100 lbs to 450 lbs.
• Great for touring and commuting.
• Easily folds for transport and storage.
• Trike includes quick adjust kit.

Specifications:

Recumbent Tricycle Name: Greenspeed Magnum XL

X-seam range: 42" to 52"
Frame Construction: Aluminun alloy 7005 folding
Fork: n/a
Rear Derailleur: Shimano Deore Long Cage
Front Derailleur: Microshift
Shift Levers: Shimano Dura Ace Bar End
Crankset: Shun SS-ZO-300 165mm 52/42/30t
Bottom Bracket: External Bearing
Headset: n/a
Cassette: 9spd 11-34t
Brake Calipers: Twin Sturmey Archer Drum
Brake Levers: Sturmey Archer Locking
Drum Brake: Twin Sturmey Archer 90mm Drums
Front Hub: Sturmey Archer Drum Push Button QR
Rear Hub: Chosen
Front Rim: 20" alloy
Rear Rim: 20" alloy
Spokes: Stainless Steel
Chain: YBN S9
Pedals: platform
Front Tire: Schwalbe Big Apple 20x2.0
Rear Tire: Schwalbe Big Apple 20x2.0
Tube Type: SV
Frame Style: QR seat and center fold
Steering: Centre Point Ackerman
BB Height: 14" - 16"
Gear Range: 18" - 95"
Seat Height: 14" - 18"
Total Weight: 44 lbs
Wheelbase: 45"
Overall Length: 75" - 84"
Overall Width: 36"
Seat Angle: 30-48 degrees
Weight Limit: 450 lbs

Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

The GreenSpeed Magnum, which was introduced in 2012, has been one of Greenspeed's best selling trikes. It builds on over twenty years of designing and building the world’s best touring trikes, with the prototype being tested climbing the Himalayas.

The Magnum has a large number of features which make it particularly easy and enjoyable to ride. The cross member is angled back in a "V" to allow the rider to get their legs closer to the seat, which is adjustable for height to make entry and exit easy. The seat is also adjustable for angle, so you can choose the amount of recline which is the most comfortable for you. The frame folds and all wheels have quick releases, so it is easy to transport!

The Magnum is designed to take riders up to 400 lbs, so it is very strong.  Carfted from 7005 aluminium alloy, it is not a heavy machine either.  Plus with its large Big Apple tires, high ground clearance, and wide range of gears, it is equally at home offroad as it is on the road.

The seat was designed by a chiropractor and has built-in suspension and ventilation, which with the balloon tires will give you a comfortable ride. Plus, the famous GreenSpeed steering geometry and the oversize brakes make steering and braking effortless.

• Suitable for on and off road.
• Seat is adjustable for height and angle using quick release levers.
• Suitable for riders from 100 lbs to 450 lbs.
• Great for touring and commuting.
• Easily folds for transport and storage.
• Trike includes quick adjust kit.

Specifications:

Recumbent Tricycle Name: Greenspeed Magnum XL

X-seam range: 42" to 52"
Frame Construction: Aluminun alloy 7005 folding
Fork: n/a
Rear Derailleur: Shimano Deore Long Cage
Front Derailleur: Microshift
Shift Levers: Shimano Dura Ace Bar End
Crankset: Shun SS-ZO-300 165mm 52/42/30t
Bottom Bracket: External Bearing
Headset: n/a
Cassette: 9spd 11-34t
Brake Calipers: Twin Sturmey Archer Drum
Brake Levers: Sturmey Archer Locking
Drum Brake: Twin Sturmey Archer 90mm Drums
Front Hub: Sturmey Archer Drum Push Button QR
Rear Hub: Chosen
Front Rim: 20" alloy
Rear Rim: 20" alloy
Spokes: Stainless Steel
Chain: YBN S9
Pedals: platform
Front Tire: Schwalbe Big Apple 20x2.0
Rear Tire: Schwalbe Big Apple 20x2.0
Tube Type: SV
Frame Style: QR seat and center fold
Steering: Centre Point Ackerman
BB Height: 14" - 16"
Gear Range: 18" - 95"
Seat Height: 14" - 18"
Total Weight: 44 lbs
Wheelbase: 45"
Overall Length: 75" - 84"
Overall Width: 36"
Seat Angle: 30-48 degrees
Weight Limit: 450 lbs

Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

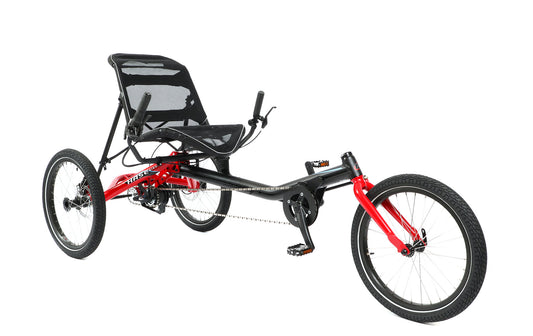

Recumbent plus delta trike = safety, stability, and agility all rolled into FUN.
Like its KETTWIESEL cousin, the TRIGO has a low seat between its rear wheels for extreme stability, and a single wheel in front for outstanding agility. In short: the perfect recumbent trike for confident cornering. If you’re so inclined. With 24 gears, you can also enjoy speeding down the straightaway. Or downhill. Or uphill. Or anywhere the road takes you.

Guide rails along the boom mean lightning-fast adjustments.
“Can I try?” On the TRIGO, you’ll hear this question a lot, and it’s a great chance to show off the trike’s flexibility. The seat modules of the delta trike move along guide rails and are infinitely adjustable without tools. As a result, the recumbent TRIGO can be quickly adjusted to a new rider. Provided that the rider is between 4’7” (1.40 m) and 6’7” (2 m) in height. And provided that you’re willing to share.  For the length adjustment, all you have to do is open a lever and slide the seat into the appropriate position. No need for tools and no need to shorten or lengthen the chain!

The TRIGO even has adjustable handlebars: both the angle and width are adjustable, ensuring that every rider can enjoy the perfect hand position for steering, grip-shifting, and braking. And last but not least, the seat tilt can be set to your preferred position using a quick-release mechanism.

The extras: accessories for everyday use!
Once you’ve experienced how sporty you can be in a comfy, recumbent seat, you’ll be hooked. And if you plan on using the TRIGO for more than simply sports and fun, then be sure to check out the wide range of recumbent-trike accessories. For example, the ROLLER RACK, ROLLER BAG, and FOLDABLE FAIRING are all extremely practical for everyday use. The same applies to the SHIMANO STEPS mid-motor, which can be retrofitted to the TRIGO in a few simple steps!

Specifications:

Recumbent Tricycle Name: Trigo

X-Seam Range: 34" to 49"
Electric Assist: no
Parking Brake: yes
Rear Suspension: none
Front Suspension: none
Folding: no
Weight Limit:  309 lbs
Manufacturer’s X-seam Range:  34 - 49" *
Total Weight:  47.4 lbs
Seat Height:  23"
Overall Length:  70.5 - 82"
Overall Width:  32"
Overall Height:  38"
Folded Length:  N/A
Folded Width:  N/A
Folded Height:  N/A
BB Height:  12.5"
Seat Angle:  38 - 46 degrees
Seat Type & Size:  Mesh (Hase standard)
Wheelbase: 50 - 63"
Pedals:  Platforms
Gear Range:  17 - 86"
Brakes:  Mechanical Disc
Brake Levers:  Promax
Rear Derailleur:  Shimano Altus 8 speed
Front Derailleur:  Shimano Tourney
Shift Levers:  Gripshift
Crankset:  155mm Crankarms 30, 39, 50t Chainrings
Bottom Bracket:  Square Taper
Cassette / Cog:  8 speed 11-34t
Front Hub:  Quick Release
Rear Hub:  Disc
Front Tire:  Kenda 20 x 2.25" (58 - 406)
Rear Tire:  Kenda 20 x 2.25" (58 - 406)
Tube Type:  Presta (standard)
Chain:  8 speed
Headset:  Integrated
Steering:  Indirect
Last Update:  2/15/2019

 Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

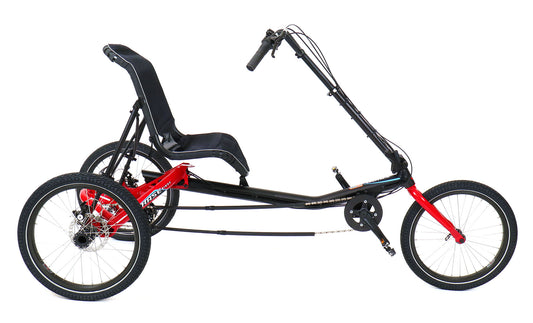

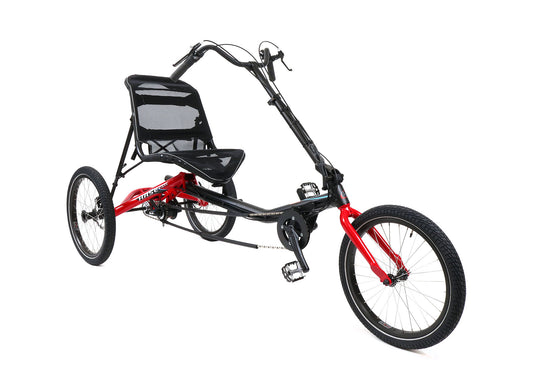

As a recumbent trike with above-seat steering, the TRIGO UP offers great stability and exceptional comfort. And is a bright-red declaration of resistance against those spoilsport attitudes towards aging.

Easy-going recumbent trike: comfy seat and high handlebar
Who says that getting older means slowing down and always wearing beige? The world is colorful, and so are we! And we’ll “keep on rolling” as long as we can.

The TRIGO UP was designed for young-at-hearts like us. It combines the comfort and safe stability of a recumbent trike with the familiar handling of above-seat steering. By the way: with the TRIGO UP you’ll always have a comfortable place to sit and relax in the most beautiful places, for example on snack breaks during bike tours. Blissful!

Flexible: infinite adjustability
Guide rails along the boom mean lightning-fast adjustments.
“Can I try?” On the TRIGO, you’ll hear this question a lot, and it’s a great chance to show off the trike’s flexibility. The seat modules of the delta trike move along guide rails and are infinitely adjustable without tools.  Therefore, the TRIGO UP can be quickly adjusted to any rider between 4’7” (1.40 m) and 6’7” (2 m) in height.  For the length adjustment, all you have to do is open a lever and slide the seat into the appropriate position. No need for bicycle tools and no need to shorten or lengthen the chain! Also effortlessly adjustable are the height and tilt of the seat, and the height, angle, and lateral position of the handlebar.

Practical: cargo-carrying options with ample capacity
The ROLLER BAG is so roomy that, on the way home from your ride, you can even load up on supplies at the farm shop. And for those who prefer to travel light: the Racktime “Baskit” fits perfectly to the recumbent trike.

Ingenious: retrofittable e-motor
The pedal pushers and penny pinchers who purchase the non-motorized version of the TRIGO UP can have a Shimano Steps mid-motor retrofitted any time they want! That’s what makes this model so special: the extremely quiet and efficient motor can be mounted – and also removed – in a few easy steps.

Specifications:

• Recumbent Tricycle Name:  Trigo Up
• Electric Assist: No
• Parking Brake:  Brake Lever Lock
• Rear Suspension:  No
• Front Suspension: No
• Folding: No
• Weight Limit: 309 lbs.
• Manufacturer's X-Seam Range:  34-49"
• Total Weight:  51 lbs.
• Seat Height:  23-26"
• Overall Length: 70 1/2-82"
• Overall Width:  32"
• Overall Height: 42"
• BB Height: 12 1/2
• Seat Angle:  130°-110°  (38-46")
• Seat Type & Size: Mesh
• Wheelbase: 50-63"
• Pedals: Plastic Nylon Platform
• Gear Range: 21.2-65
• Brakes: Promax 160mm Disc
• Brake Levers: Promax
• Rear Derailleur:  n/a
• Shift Levers: Twist Microshift
• Crankset: 155/36t
• Bottom Bracket: Square Taper
• Cassette / Cog: Shimano Nexus Internal 8spd
• Front Hub: Hase
• Rear Hub: Hase
• Front Tire: Kenda Kontact 20x2.25 w/reflective side tape
• Rear Tire: Kenda Kontact 20x2.25 w/reflective side tape
• Tube Type: Presta Valve
• Chain: YBN
• Headset: Hase
• Steering: Direct
• Last Update: Novemeber 29, 2019

Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

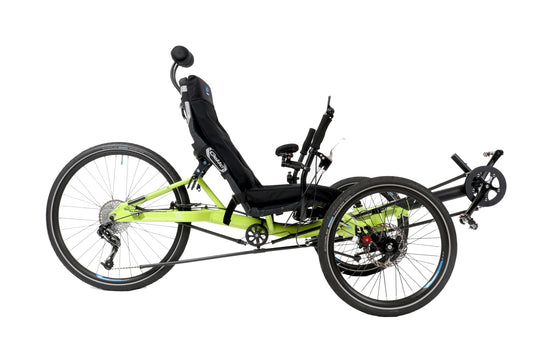

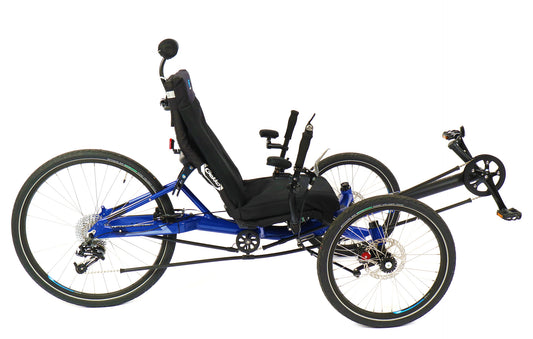

Let comfort be your guide with this new edition of the HP Velotechnik Gekko!

Outfitted with the latest in German-engineered comfort technology, the new HP Velotechnik Gekko fx26 Comfort Trike will not only get you from Point A to Point B in first-class comfort and style, but will also encourage you to visit Points C, D, and E along the way!  The new Cloud Nine Seat Pad is your first line of defense against all those little dips and bumps in the road.  It features a soft cushy padding extending all the way up the back of the seat, breathable fabric to keep you cool and dry, and blends seamlessly with the integrated seat pouch and flag holder.

Couple this with the new Gekko Seat Angle Adjuster and you have a match made in heaven.  The adjuster lets you increase the seat angle by up to 11 degrees for a more upright seating position, giving you more comfort choices, and a clear view of the road ahead.

Borrowed from its Scorpion big brother, the new Gekko fx26 Comfort Trike features the same ergonomic handlebars, individually adjustable for both angle and width.  So go ahead and set up this trike to fit you like a glove!

Rounding out all of this goodness we're including HPV's oh-so-comfortable adjustable Neck Rest, and a pair of HPV's Hand Rests, allowing you to easily guide the handlebars without the need for strenuous holding effort on the handlebar grip itself.  These comfortably-padded hand rests can be individually adjusted for both angle and inclination to accommodate your individual riding position.

For added convenience, a dual-actuation brake lever has been installed on the right side so that both front disc brakes can be actuated from the lone brake lever, and all shifting is done from the right-hand bar end shifter as well.

So get riding in a maximum of style and comfort, whether it's commuting, skipping around town, or heading down your favorite bike path.  Let the Gekko fx26 Comfort Trike accommodate You.

Specifications:

Recumbent Tricycle Name: Gekko fx26 Comfort Deep Blue Trike
Electric Assist:  No
Parking Brake:  Rear Linear Pull, Front Dual Disc (Locking Brake Lever).
Rear Suspension:  No
Front Suspension:  No
Folding:  Yes
Weight Limit:  286 lbs
Manufacturer’s X-seam Range:  35 - 48"
Total Weight:  45.8 lbs
Seat Height:  16"
Overall Length:  72 - 84"  (Depends on boom length)
Overall Width:  33"
Overall Height:  33 - 35"  (Depends on seat angle, measurement does not include neck rest)
Folded Length:  44 - 48.5"  (Depends on boom length)
Folded Width:  33"
Folded Height:  24 - 29"  (Depends if handlebars are folded)
BB Height:  16 - 19"  (Depends on boom length)
Seat Angle:  25 - 37 degrees  (With Seat Angle Adjuster installed)
Seat Type & Size:  Gekko fx Seat Frame Mesh, with Cloud Nine plush seat pad
Wheelbase:  45"
Pedals:  Platform
Gear Range:  28 - 91"
Brakes:  Avid Mechanical Disc 160mm rotor
Brake Levers:  Dual Actuation  (Right-side Lever)
Rear Derailleur:  SRAM GX
Front Derailleur:  No
Shift Levers:  SRAM TT500 Bar End
Crankset:  Alloy 155mm crankarms, 39t Chainring
Bottom Bracket:  BSA Internal Square Taper
Cassette / Cog:  SRAM 10 speed 11-36t
Front Hub:  HPV Disc
Rear Hub:  HPV Quick Release
Front Tire:  Schwalbe Road Cruiser 20 x 1.75" (47-406)
Rear Tire:  Schwalbe Road Cruiser 26 x 1.75" (47-559)
Tube Type:  Presta
Chain:  KMC 10 speed
Headset:  FSA
Steering:  Indirect
Last Update:  2/28/2020

 Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

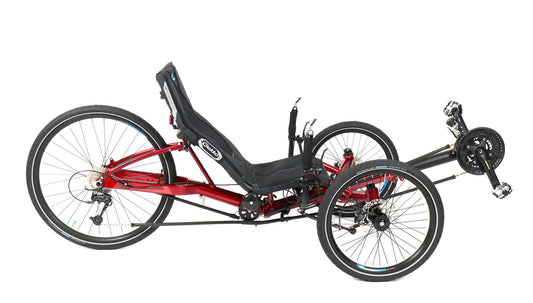

HP Velotechnik has responded to years of requests: Their popular Gekko model is now available with a 26 inch rear wheel! The driving dynamic of a 26 inch wheel in the trikes tail is unique.

Specially equipped by the Hostel Shoppe with a shortened boom and shorter cranks. This is ideal for shorter riders.

Just like the original, the Gekko fx26 is a nimble, foldable touring trike that goes from compact size to maximum riding pleasure in ten seconds. Treat yourself to luxurious comfort in the recumbent mesh seat and enjoy all the fun that comes from riding on three wheels. With impressively stable road holding, it elicits maximum riding pleasure from every bend in the road.

Sizing Notes:

• To find how to measure x-seam, go to our Help Guides
• Weight limit 286 lbs

Standard Equipment and Features:

• HP Velotechnik's innovative Dual Flat Fold (D.F.F.) system allows you to fold the Gekko fx with just two quick release levers. With a little practice, you can fold your Gekko fx into a compact size of 42 1/8” x 32 3/4” x 22 7/8” in ten seconds.
• Wide wheel track of 30.75" for great cornering.
• 45" wheelbase for stable road holding at speed.
• 15’ 3" turning radius
• Stiff, lightweight aluminum frame

Specifications:

Recumbent Tricycle Name: Gekko fx Sport 26 Compact
Electric Assist: none
Parking Brake: yes
Rear Suspension: none
Front Suspension: none
Folding: yes
Weight Limit:  286 lbs
Manufacturer’s X-seam Range:  35 - 48" *
Total Weight:  38 lbs
Seat Height:  13.5"
Overall Length:  73.5 - 86"
Overall Width:  33"
Overall Height:  33"
Folded Length:  42"
Folded Width:  33"
Folded Height:  23"
BB Height:  15 - 19"
Seat Angle:  39 - 47 degrees
Seat Type & Size:  Gekko fx Seat Frame Mesh
Wheelbase: 45"
Pedals:  platform
Gear Range:  21 - 118"
Brakes:  Shimano Hydraulic Disc 160mm rotor
Brake Levers:  Shimano
Rear Derailleur:  SRAM GX 10 speed
Front Derailleur:  Microshift
Shift Levers:  SRAM bar end shifters
Crankset:  Origin 145mm crankarms 30, 42, 52t chainrings
Bottom Bracket:  Square Taper
Cassette / Cog:  SRAM 10 speed 11-36t
Front Hub:  Disc
Rear Hub:  Quick Release
Front Tire:  Schwalbe Tryker 20 x 1.5" (40-406)
Rear Tire:  Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type:  Presta (standard)
Chain:  10 speed
Headset:  FSA
Steering:  Indirect
Last Update:  2/7/2019

 Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.

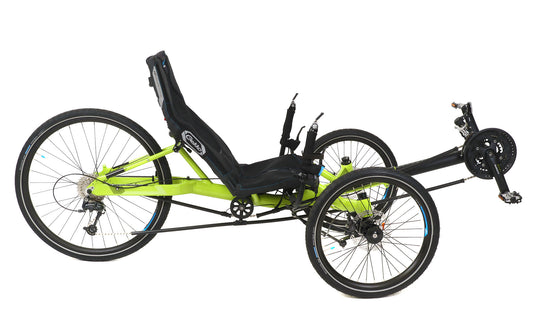

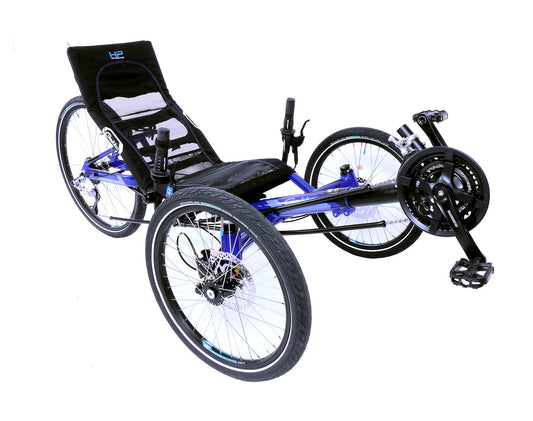

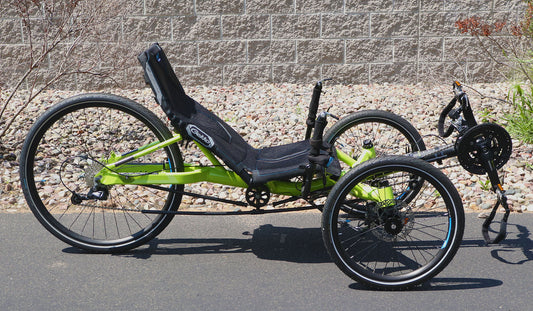

HP Velotechnik has responded to years of requests: Their popular Gekko model is now available with a 26 inch rear wheel! The driving dynamic of a 26 inch wheel in the trikes tail is unique.

Just like the original, the Gekko fx26 is a nimble, foldable touring trike that goes from compact size to maximum riding pleasure in ten seconds. Treat yourself to luxurious comfort in the recumbent mesh seat and enjoy all the fun that comes from riding on three wheels. With impressively stable road holding, it elicits maximum riding pleasure from every bend in the road.

Sizing Notes:

• To find how to measure x-seam, go to our Help Guides
• One size fits riders from 5' 3" to 6' 6"
• X-seam range fits 37.2" to 50.4"
• Weight limit 286 lbs

Standard Equipment and Features:

• HP Velotechnik's innovative Dual Flat Fold (D.F.F.) system allows you to fold the Gekko fx with just two quick release levers. With a little practice, you can fold your Gekko fx into a compact size of 42 1/8” x 32 3/4” x 22 7/8” in ten seconds.
• Wide wheel track of 30.75" for great cornering.
• 45" wheelbase for stable road holding at speed.
• 15’ 3" turning radius
• Stiff, lightweight aluminum frame

Specifications:

Recumbent Tricycle Name: Gekko fx Sport 26
Electric Assist: none
Parking Brake: no
Rear Suspension: none
Front Suspension: none
Folding: yes
Weight Limit:  286 lbs
Manufacturer’s X-seam Range:  35 - 48" *
Total Weight:  40 lbs
Seat Height:  13.5"
Overall Length:  73.5 - 86"
Overall Width:  33"
Overall Height:  33"
Folded Length:  42"
Folded Width:  33"
Folded Height:  23"
BB Height:  15 - 19"
Seat Angle:  39 - 47 degrees
Seat Type & Size:  Gekko fx Seat Frame Mesh
Wheelbase: 45"
Pedals:  platform
Gear Range:  30 - 109"
Brakes:  Shimano Hydraulic Disc 160mm rotor
Brake Levers:  Shimano BL-MT200
Rear Derailleur:  SRAM X4 8 speed
Front Derailleur:  Microshift
Shift Levers:  SRAM Gripshift
Crankset:  Shimano 170mm crankarms 28, 38, 48t chainrings
Bottom Bracket:  Square Taper
Cassette / Cog:  SRAM 8 speed 11-32t
Front Hub:  Disc
Rear Hub:  Quick Release
Front Tire:  Schwalbe Road Cruiser 20 x 1.75" (47-406)
Rear Tire:  Schwalbe Road Cruiser 26 x 1.75" (47-559)
Tube Type:  Presta (smooth)
Chain:  8 speed
Headset:  FSA
Steering:  Indirect
Last Update:  2/7/2019

 Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.
