The NEW Sprint X Tour now features a newly designed easy-access swept cruciform and a new handlebar clamping system with super secure indexed clamps, ensuring easy alignment and solid handlebar positioning when unfolding.
With its sporty ride, comfort, and medium-height seating position, the versatile Sprint X Tour will guarantee you are ready for the challenge ahead. Whether you are carving bends, pushing your speed, or on a long distance tour, the Sprint X Tour is a trike for all seasons.
The specialized cruciform geometry of a Sprint X Tour is enhanced with a wealth of technical features designed to deliver sporting performance, agile handling, and everyday practicality. All trikes in the ICE Sprint X Tour range are built on an optimised ICE frame featuring the Compact Flat Twist Fold, No Brake Steer, Rider Positioning System, and are available with wide range gearing.

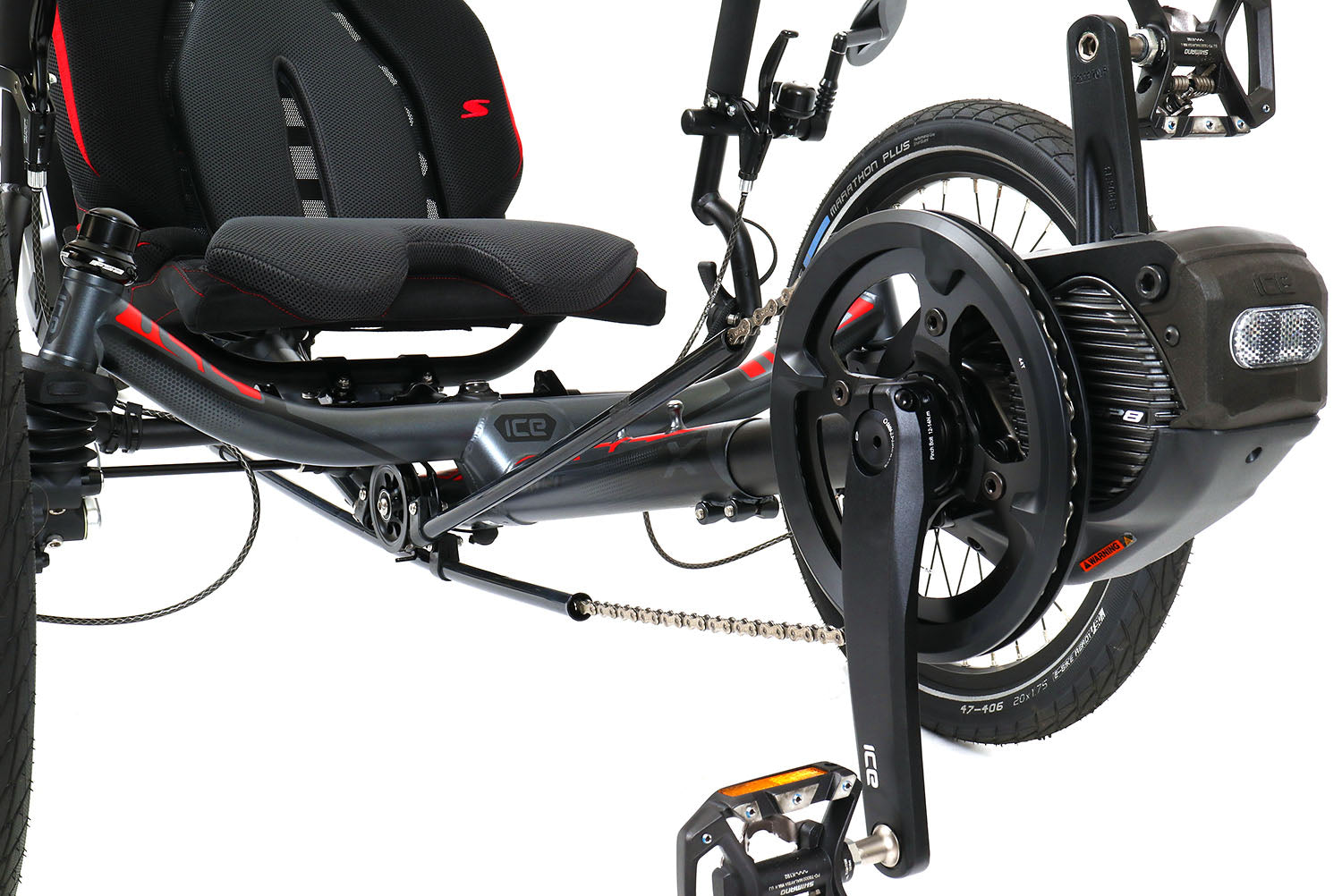

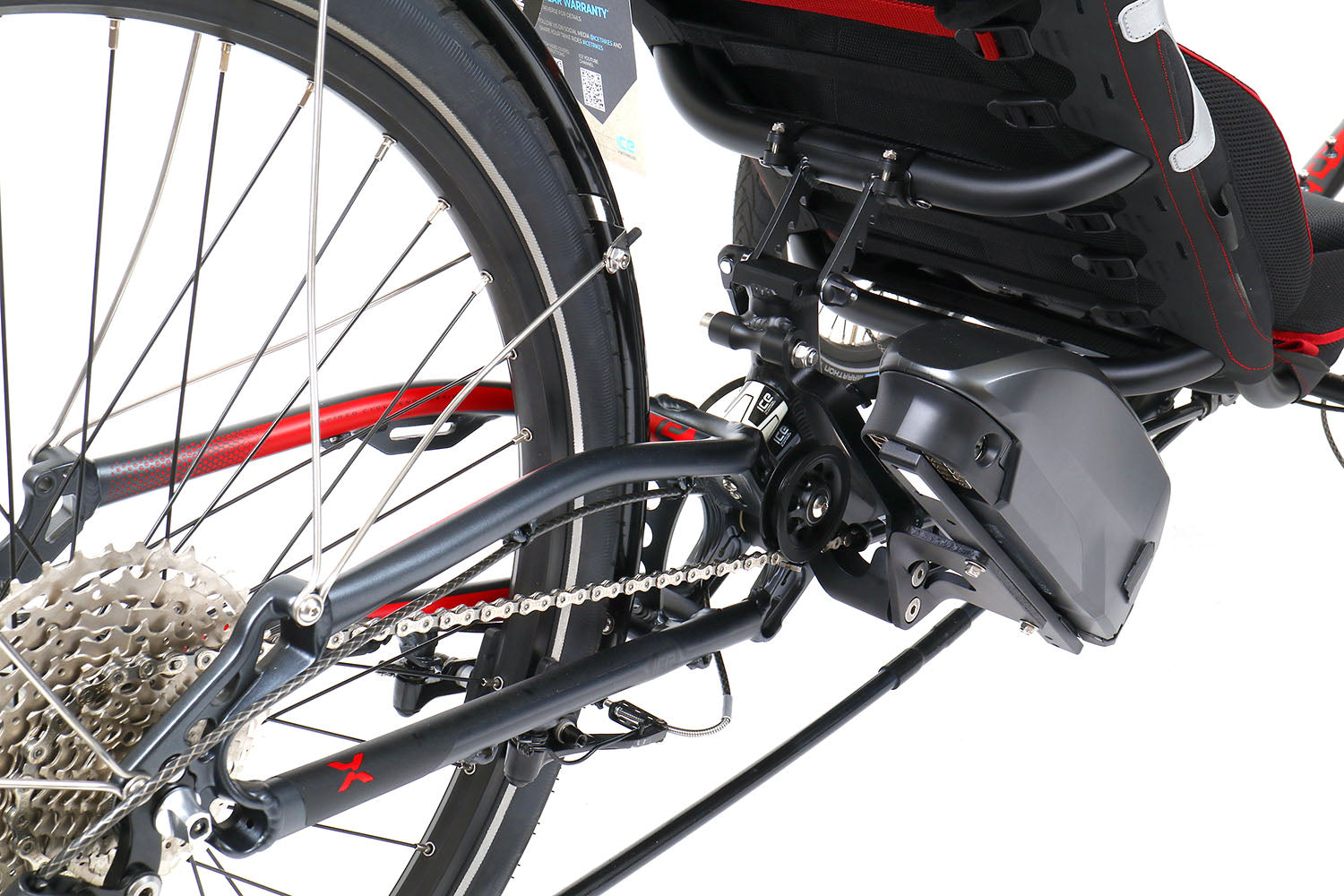

Shimano STEPS is a perfect choice for electric assist. It feels like you are riding with a tailwind at all times. And the best part is you control the "Tail Wind." With the integrated motor mounted at the front of the trike, the battery mounted under the trike's seat, a handlebar-mounted computer and controller for easy access, and a neat well-protected wiring loom, the whole system blends in and keeps your trike looking great.
The Sprint X Tour with full suspension is a great option for sport riders seeking a plush ride.
Shimano STEPS EP8 System:
- 11 speed derailleur drive train
- Eco, Trail and Boost assist modes
- Assists at speeds up to 20mph
- 250W motor
- 85Nm torque
- 630 Wh battery
Standard Features:
- Lower seating position for improved aerodynamics and cornering
- Compact Flat Twist Folding for ease of transport
- Ackerman steering with No Brake Steer
- Rider Positioning System for fine tuning the fit
Included:
- Fitted with the New Ergo-Luxe fully-cushioned seat
- Rear Fender
- Mirror
- Safety Flag
- Shimano Deore XT Touring Pedals: Platform (one side) / SPD compatible clipless pedals (other side)
- Bell
Specifications:
Recumbent Tricycle Name: Sprint X Tour 26 FS STEPS EP8
Electric Assist: Shimano STEPS EP8 / 630 Watt Hour Battery
Parking Brake: Yes
Rear Suspension: Yes, Elastomer 4" travel
Front Suspension: Yes
Folding: Yes
Weight Limit: 275 lbs
Measured X-seam Range: 37 - 45" (see Sizing Notes above)
Total Weight: 60 lbs
Seat Height: 13"
Overall Length: 80 - 90"
Overall Width: 32.5"
Overall Height: 23 - 28"
Folded Length: 39 - 47"
Folded Width: 32.5"
Folded Height: 19 - 26"
BB Height: 14 - 17"
Seat Angle: 36 - 42 degrees
Seat Type & Size: Ergo-Luxe, Standard
Wheelbase: 41.5 - 46"
Pedals: Shimano XT Single Sided SPD (Platform & Clipless)
Gear Range: 26 - 86 Gear Inches
Brakes: Callisto Mechanical Disc, Avid 160mm Rotors
Brake Levers: Dia-Compe DP7
Rear Derailleur: Shimano Deore 11 speed
Front Derailleur: N/A
Shift Levers: Microshift bar end shifter, 11 speed
Crankset: Shimano 44t chainring, 170mm Crankarms
Bottom Bracket: Shimano Steps
Cassette / Cog: Shimano 11 speed 11-42t
Front Hub: ICE Alloy Disc
Rear Hub: Formula Quick Release
Front Tire: Schwalbe Marathon Plus 20 x 1.75" (47-406)
Rear Tire: Schwalbe Marathon Plus 26 x 1.75" (47-559)
Tube Type: Schrader Valve
Chain: YBN 11 speed
Headset: FSA A-head type
Steering: Indirect
Last Update: Aug 2024
