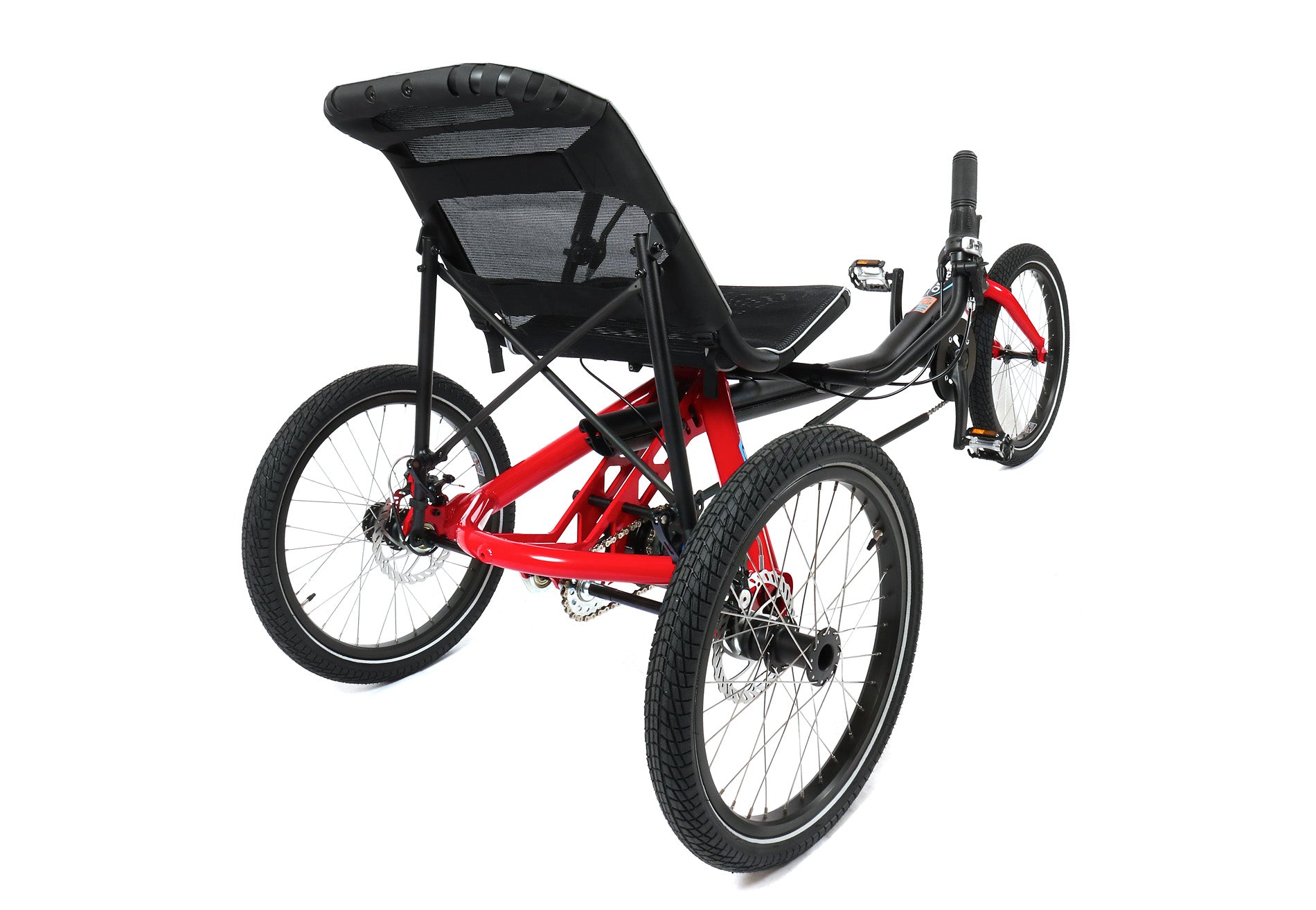

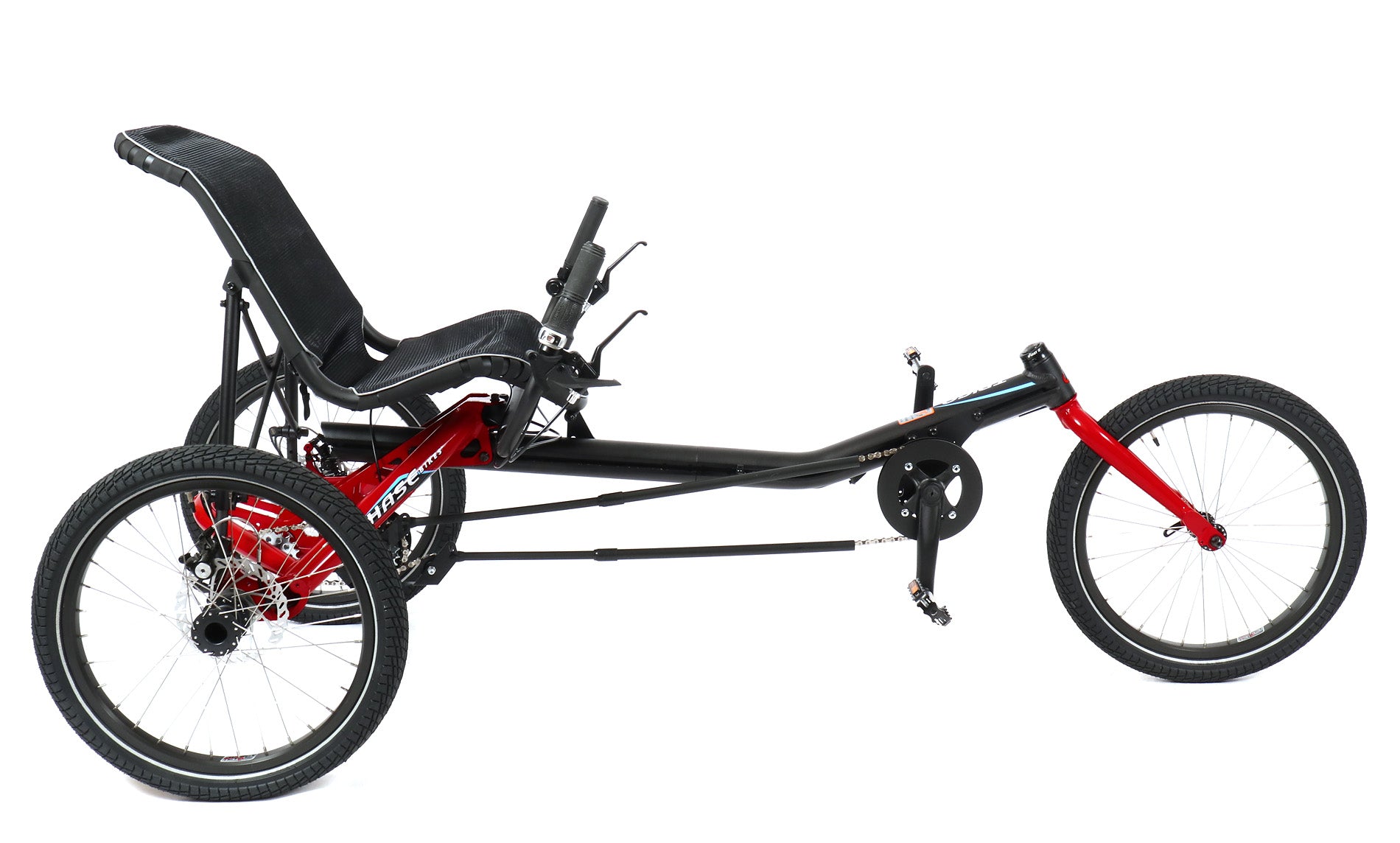

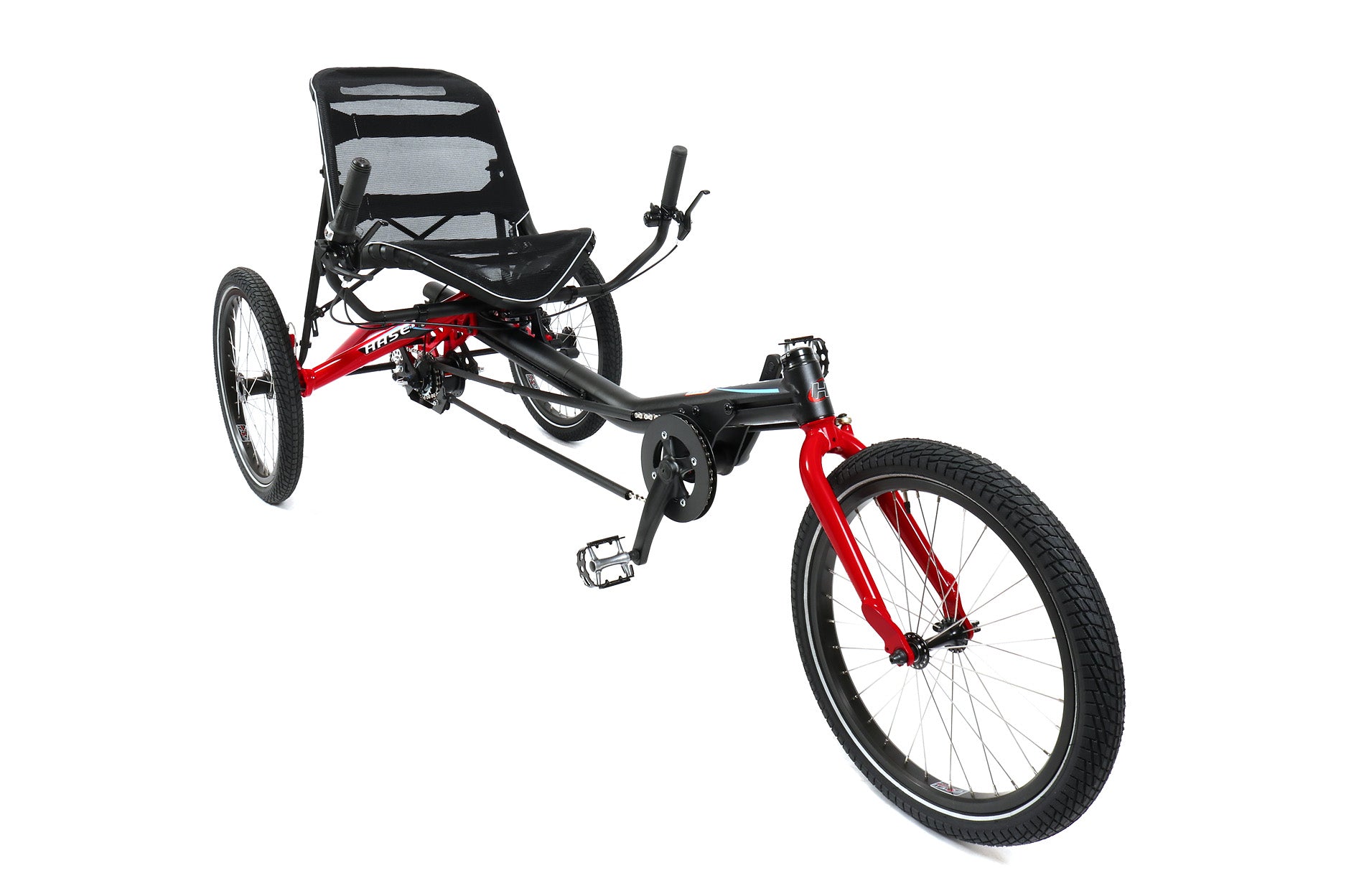

Hase Trigo Nexus USS Red Recumbent Trike

Delta trikes give you safety, stability, and agility all rolled into FUN.  The TRIGO has a low seat between its rear wheels for extreme stability, and a single wheel in front for outstanding agility. In short: the perfect recumbent trike for confident cornering. With 8 gears, you can also enjoy speeding down the straightaway, or downhill, or uphill, or anywhere the road takes you.

“Can I try?” On the TRIGO, you’ll hear this question a lot, and it’s a great chance to show off the trike’s flexibility. The seat modules of the delta trike move along guide rails and are infinitely adjustable without tools. As a result, the recumbent TRIGO can be quickly adjusted to a new rider, provided that the rider is between 4’7” (1.40 m) and 6’7” (2 m) in height. For the length adjustment, all you have to do is open a lever and slide the seat into the appropriate position. No need for tools and no need to shorten or lengthen the chain! The TRIGO even has adjustable handlebars: both the angle and width are adjustable, ensuring that every rider can enjoy the perfect hand position for steering, shifting, and braking. And last but not least, the seat tilt can be set to your preferred position using a quick-release mechanism. Once you’ve experienced how sporty you can be in a comfy, recumbent seat, you’ll be hooked. And if you plan on using the TRIGO for more than simply sports and fun, then be sure to check out the wide range of recumbent-trike accessories.

Features:

• Modular design
• Flexible and easily adjustable
• Superb agility
• Low center of gravity for safety and stability
• E-motor option
• Can be hooked up in tandem with other delta trikes using the Hase Universal Coupler.

Sizing Notes:

• X-Seam Range: 34" to 49"
• Weight Limit:  309 lbs
• Riders should call us with their height, weight and X-seam for sizing assistance.
• Modifications may be needed for shorter or taller riders.
• For detailed X-seam measuring instructions go to Recumbent Sizing.

Specifications:

• Recumbent Tricycle Name: Trigo Nexus USS

• Electric Assist: None

• Parking Brake: yes

• Rear Suspension: none

• Front Suspension: none

• Folding: no

• Weight Limit:  309 lbs

• Manufacturer’s X-seam Range:  34 - 49" *

• Total Weight:  47.4 lbs

• Seat Height:  23"

• Overall Length:  70.5 - 82"

• Overall Width:  32"

• Overall Height:  38"

• Folded Length:  N/A

• Folded Width:  N/A

• Folded Height:  N/A

• BB Height:  12.5"

• Seat Angle:  38 - 46 degrees

• Seat Type & Size:  Hase Trigo Mesh

• Wheelbase: 50 - 63"

• Pedals:  Platforms

• Gear Range:  16.9" - 51.7"

• Brakes:  Promax Mechanical Disc

• Brake Levers:  Aluminum

• Rear Derailleur:  Chain Tensioner

• Front Derailleur:  N/A

• Shift Levers:  Gripshift 8-Speed

• Crankset:  Samox 155mm Crankarms 36t chainring

• Bottom Bracket:  Square Taper

• Cassette / Cog:  Shimano Nexus Inter-8 Premium Hub / 21t

• Front Hub:  Quick Release Alloy

• Rear Hub:  Hase Quickstick Disc

• Front Tire:  Kenda Kontact 20 x 2.25" (58 - 406)

• Rear Tire:  Kenda Kontact 20 x 2.25" (58 - 406)

• Tube Type:  Presta (standard)

• Chain:  8 speed

• Headset:  Integrated

• Steering:  Indirect

• Last Update:  1/6/2021
