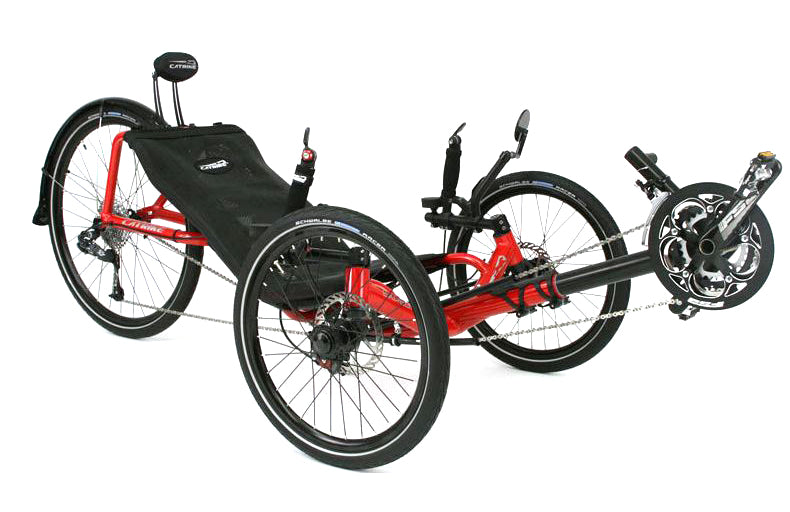

Catrike Expedition Lava Red Trike
The sense of freedom that comes with taking the path less traveled can be yours with just a pedal stroke. Exploring hidden roads and seeing nature sliding past in near silence is an experience only rolling through the country on a Catrike can provide. The Expedition offers a beautiful and sleek machine combined with a long, comfortable body position for all-day riding. To be prepared for any adventure, the Expedition comes equipped with a space frame for heavy packs. The 26-inch rear wheel provides a broad range of gearing for a variety of terrain. There are so many roads to explore that you may never see them all, but it won't be for lack of trying.
- Self Centering steering with no Brake Steer
- Ackerman Steering Compensation - Different turn radius for inside and outside wheel
- Anodized Front Boom with adjustment scale
- Quick-Release Indexing Boom Clamp
- Aluminium Rod Ends
- Low Friction PTFE Chain Tube
Included accessories and equipment:
- Catrike Neck rest
- Platform Pedals (one side) / SPD compatible clipless pedals (other side)
- Left Mirror & mirror mount
- Computer Sensor Mount
- Rear Fender
- Flag & Flag Mount
- Proprietary Catrike Handrests
- Parking Brake Levers
- Built in Headlight Mount
- This trike fits x-seams from 39" to 46". A trike with a longer boom can be special ordered for an additional $25.
- The X-long boom (24") extends the X-seam range to 51". Click here to order the x-long boom on our website.
- The XX-Long boom (30") can be special ordered and extends the X-seam range to 57".
- Booms can be cut to fit shorter riders and the Hostel Shoppe also offers short cranksets to better fit shorter riders.
- To find how to measure x-seam, go to our Help Guides.
- Modifications may be needed for shorter or taller riders.
- If you are near either end of the stated X-seam range, please contact us about fitting.
- Rider weight Limit: 275 lbs
Recumbent Tricycle Name: Catrike Expedition
Electric Assist: None
Parking Brake: Yes - Locking brake levers
Rear Suspension: None
Front Suspension: None
Weight Limit: 275 lbs
Manufacturer’s X-seam Range: 39 - 46"
Total Weight: 35 lbs
Seat Height: 10"
Overall Length: 77"
Overall Width: 32.5"
Overall Height: 26"
Folded Length: N/A
Folded Width: N/A
Folded Height: N/A
BB Height: 16.5"
Seat Angle: 37 degrees
Seat Type & Size: Mesh seat
Pedals: Combination Platform w/ SPD clipless
Gear Range: 21 - 118"
Brakes: Avid BB7 Disc
Brake Levers: Avid Speed Dial 7
Rear Derailleur: SRAM GX 10 Speed
Front Derailleur: Microshift Triple
Shift Levers: SRAM 500 TT Bar End
Crankset: FSA Gossamer Pro Triple 30/39/52t
Bottom Bracket: FSA Road MegaExo
Cassette / Cog: SRAM 10 Speed 11/36t
Front Hub: Catrike Disc
Rear Hub: Catrike 135mm, 12x142 Thru Axle
Front Tire: Schwalbe Marathon Racer 20 x 1.5" (40-406)
Rear Tire: Schwalbe Marathon Racer 26 x 1.5" (40-559)
Tube Type: Presta
Chain: KMC 10 speed
Headset: FSA Zero Stack
Last Update: 1/18/2020
