| Frameset |
|
SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel
|
|
RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 110mm travel
|
|

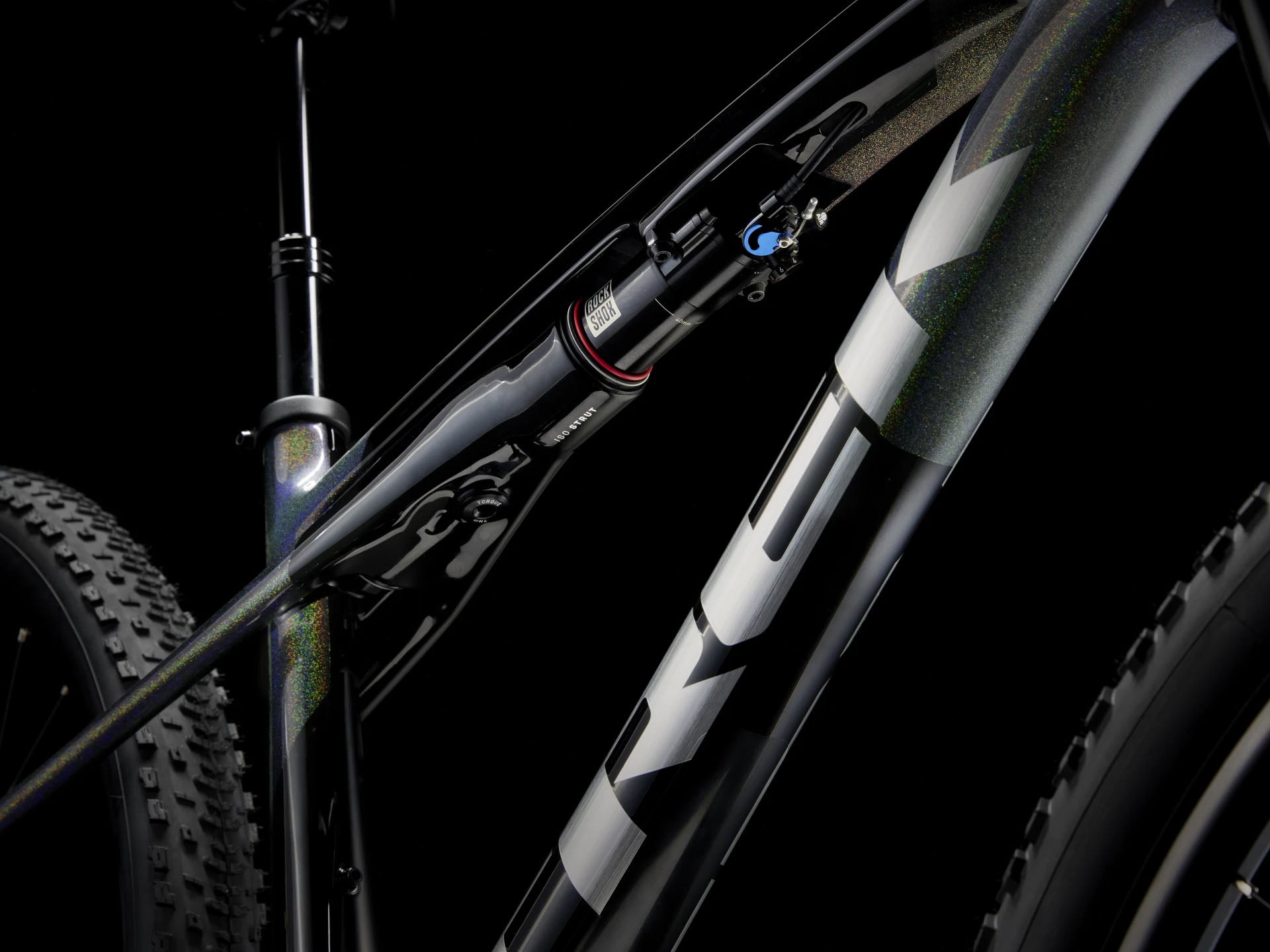

Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
|

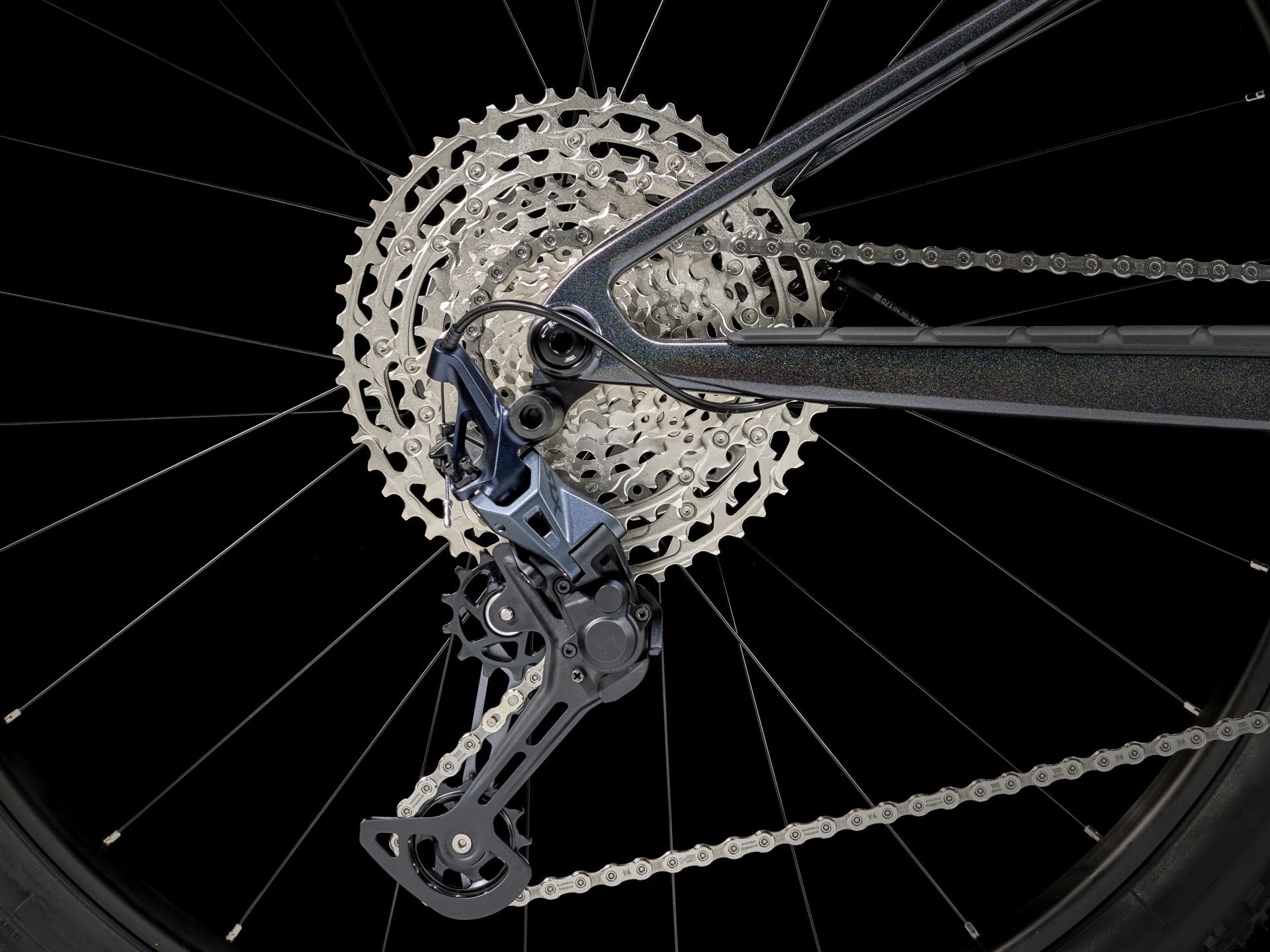

| Drivetrain |
|
Shimano Deore M6100, 12 speed
|
|
Shimano MT512, 32T, 55mm chainline, 170mm
|
|
Shimano MT500, 92mm, PressFit
|
|
None
|
|
Shimano SLX M7100, long cage
|
|
Shimano Deore M6100, 10-51, 12 speed
|
|
Shimano Deore M6100, 12 speed
|
| Brakes |
|
Shimano hydraulic disc, MT501 lever, MT500 caliper
|
|
Shimano hydraulic disc, MT501 lever, MT500 caliper
|
|
Shimano RT54, centerlock, 160mm, 180 mm
|
| Wheels and Tires |
|
Pirelli Scorpion XC RC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.40''
|
|
Shimano TC500 alloy, centerlock, 110x15mm thru axle
|
|
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
|
|
Pirelli Scorpion XC RC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.40''
|
|
Shimano TC500 alloy, centerlock, 148x12mm thru axle
|
|
Bontrager Switch thru axle, removable lever
|
|
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
|
|
Presta
|

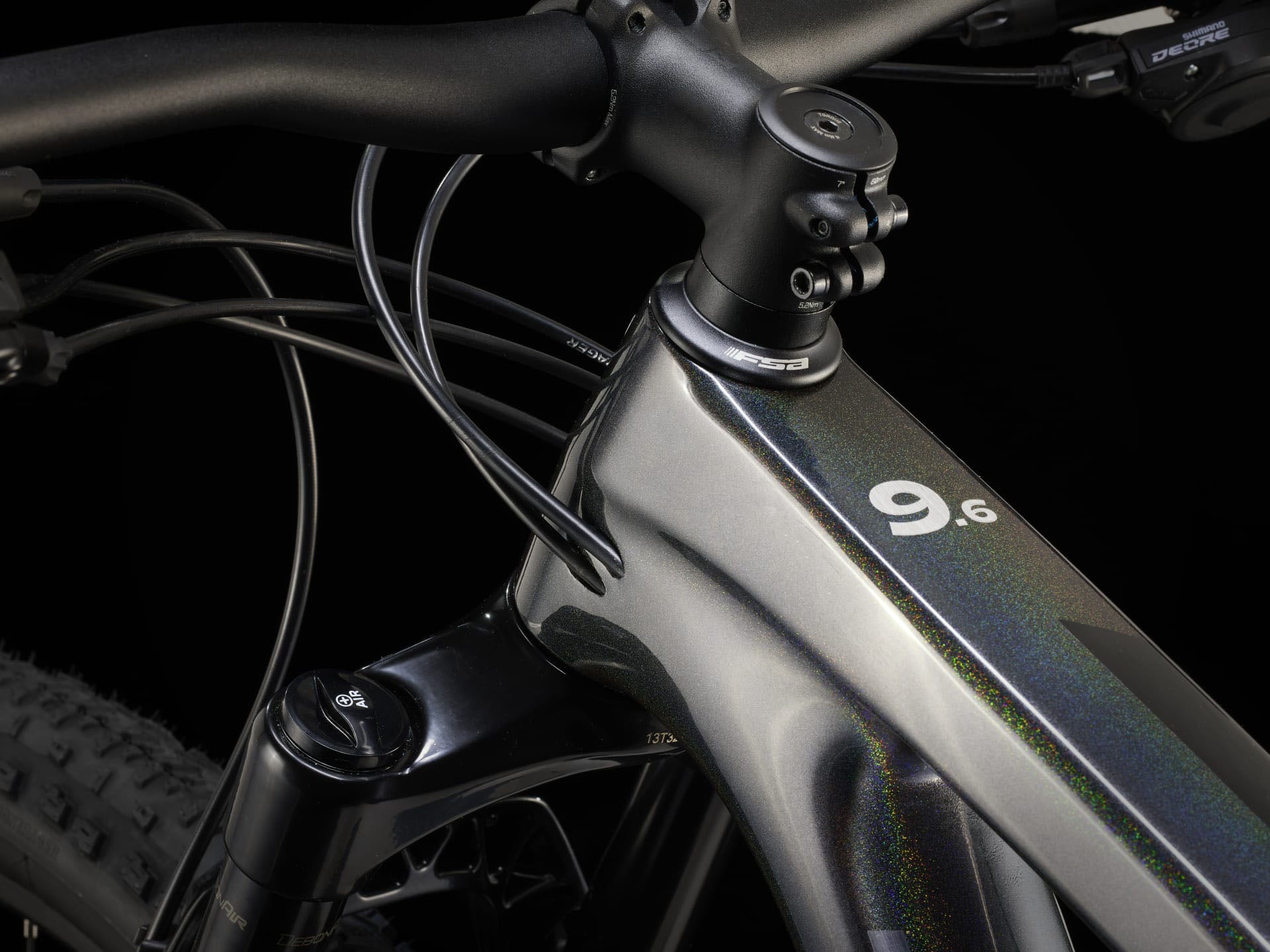

| Cockpit |
|
Verse Short Comp, steel rails, 145mm width
|
|
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length
|
|
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
|
|
Bontrager XR Trail Comp, nylon lock-on
|
|
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
|
|
FSA IS-2, 1-1/8'' top, 1.5'' bottom
|
|
None
|
| Weights |
|
Medium: 13.28 kg / 29.28 lbs (with TLR sealant, no tubes)
|
|
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
|
