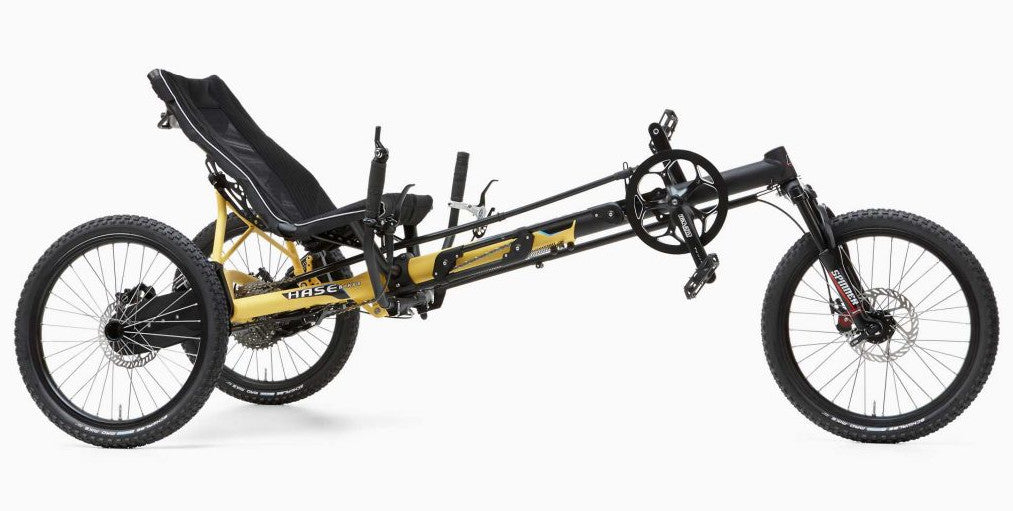

Hase Kettwiesel Cross Yellow Recumbent Trike
The KETTWIESEL CROSS: the delta trike for up and down and whoopee!The recumbent all-terrain trike, the off-road delta, or the daredevil of the HASE BIKES family – this is the CROSS. The KETTWIESEL CROSS.
Recumbent trike with a license for off-roadThe yellow bullet with the knobby treads sails serenely over roots and rocks, carves up the tightest corners, and keeps the squirrels watching safely from the trees. Be it off-road thrills in the forest or insane challenges at the bike park, one thing is clear: the fun-seeking CROSS has a nose for the road less traveled!
Also typical KETTWIESEL: for riders with special needs and/or off-road genes, there are all kinds of special pedals and accessories! As a delta trike, the CROSS is also perfect for turning on a dime, parking upright, and hitching up for tandem fun.
Downhill with special derailleur and suspensionBombing downhill, leaning into corners, testing your limits: this is the off-roader’s raison d’être. And good equipment is everything. The CROSS has an extremely sporty chassis and keeps its cool on the gnarliest stretches – thanks to the independent wheel suspension with sway bar and special air shocks.
Bottoming on jump landings? Ouch. This is why we custom-developed our own HASE BIKES linear derailleur for the CROSS. It has more ground clearance than standard derailleur cages. The 11-speed system made from CNC-machined aluminum is sophisticated, but not finicky. It’s also very forgiving of shifting mistakes. Sound good? It’s out of this world!
Uphill with differential and top tractionSurrender to that steep, pebbly slope? Not this trike! Every CROSS comes with a differential, which transmits power to both rear wheels. And the tires almost never lose traction, because – with a delta – the rider’s weight is over the rear axle.

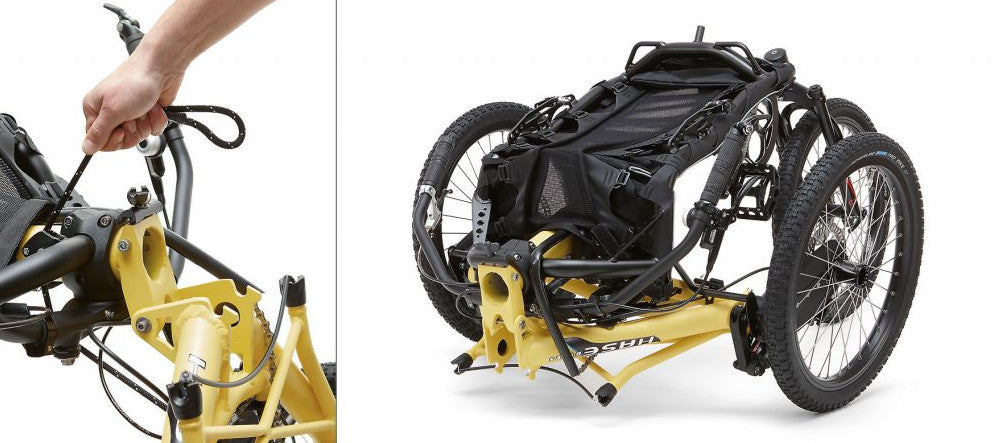

Easy transport with foldable frameSure, you can ride your CROSS over asphalt. But if that’s not exciting enough, the station wagon will also take you and your CROSS from challenge to challenge. Thanks to the ingenious folding mechanism, three quick steps is all it takes to transform the trike into a compact unit measuring a maximum of 38 inches (96 cm) that fits easily into the trunk. Awesome, isn’t it?
Now available with the optional HASE XXL Seat for added comfort. Ask about availability and price.
Recumbent Tricycle Name: Hase Kettwiesel Cross Yellow Recumbent Trike
X-Seam Range: 34" to 49"
Electric Assist: No
Parking Brake: Yes, Lever actuated
Rear Suspension: Hase Air 16 shocks
Front Suspension: Spinner 300 shock fork
Weight Limit: 309 lbs
Manufacturer’s X-seam Range: 34 - 49" *
Total Weight: 48 lbs
Seat Height: 19"
Overall Length: 63"- 81"
Overall Width: 34"
Overall Height: 31"
Folded Length: 37 3/4"
Folded Width: 35 1/2"
Folded Height: 19 1/4"
BB Height: 21"
Seat Angle: Adjustable
Seat Type & Size: Mesh (Hase standard)
Wheelbase: 52" - 70"
Pedals: VP Platform w/pins
Gear Range: 23 - 88 Gear Inches
Brakes: Avid BB7 front, Tektro hydraulic rear
Brake Levers: Avid front, Tektro TDK77 hydraulic rear
Rear Derailleur: Hase 1165 Linear Derailleur
Front Derailleur: N/A
Shift Levers: Shimano bar-end
Crankset: Truvativ Touro 52 tooth, 170mm crankarms
Bottom Bracket: Square taper
Cassette / Cog: 11 speed, 11-42t
Front Hub: Hase Disc, w/quick release
Rear Hub: Hase Disc, with Differential
Front Tire: Schwalbe Little Joe 20" x 2.0" (50-406)
Rear Tire: Schwalbe Little Joe 20" x 2.0" (50-406)
Tube Type: Presta (standard)
Chain: 11 speed
Last Update: 07/2021
Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.
