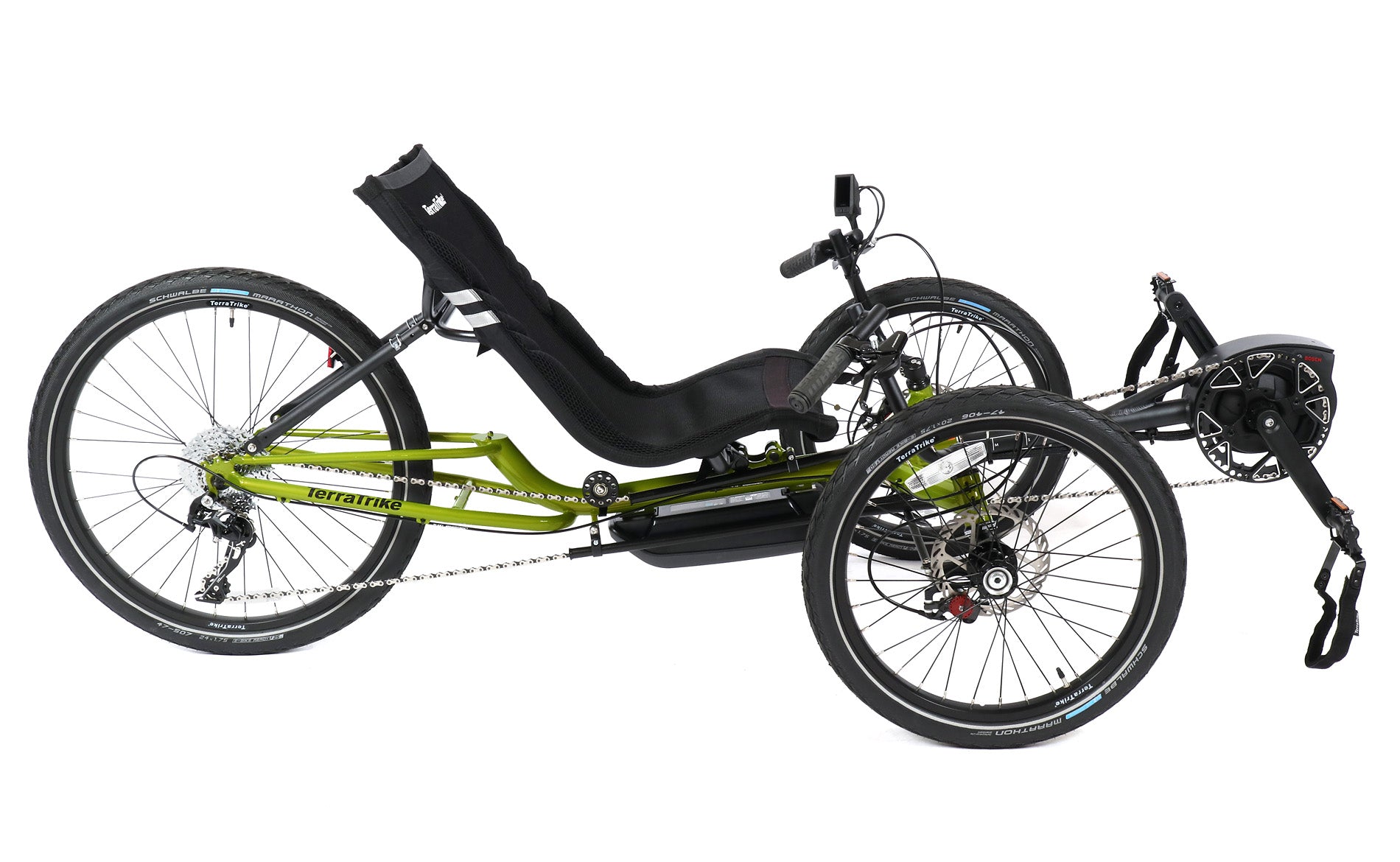

TerraTrike EVO Electric Green Recumbent Trike

TerraTrike’s latest Electric Vehicle Option, the E.V.O., is powered by the powerful Bosch Performance Line Cruise motor and the PowerPack 400Wh battery. With a whisper quiet motor capable of 65Nm of torque, this system is wickedly fun. Go from the “all-day ride” Eco mode to an exhilarating Turbo mode with a few clicks of a button. All controlled by the sleek, full color Bosch Kiox display, which puts control and riding information right at your fingertips.

Add in how lightweight the Bosch unit is and the strategically placed frame mounted battery, and you’ll find the trike is so well balanced you’ll forget it’s even there. The E.V.O. was designed with premium features packed into a tried-and-true platform so it can drift into the background and you can simply enjoy the ride.

Features:

• Performance Line Cruise motor
• PowerPack 400Wh battery
• 4 modes of assist
• Kiox Display
• Headlight and Taillight expandable

Specifications:

Recumbent Tricycle Name: E.V.O.
Electric Assist: Yes
Parking Brake: Yes
Rear Suspension: none
Front Suspension: none
Folding: no
Weight Limit:  300 lbs
Manufacturer’s X-seam Range:  35 - 44" *
Total Weight:  57.4 lbs
Seat Height:  16"
Overall Length:  73 1/2" - 78 1/2"
Overall Width:  33"
Overall Height:  33.5"
Folded Length:  N/A
Folded Width:  N/A
Folded Height:  N/A
BB Height:  14"
Seat Angle:  40 - 65 degrees
Seat Type & Size:  Mesh Seat
Wheelbase: 43"
Pedals:  Comfort Pedal Platform with Velcro Heelslings
Gear Range:  26 - 100 Gear Inches
Brakes:  Avid BB7 Mechanical Disc 160mm Rotors
Brake Levers:  Promax
Rear Derailleur:  MicroSHIFT XCD 10 Speed
Front Derailleur:  None
Shift Levers:  MicroSHIFT XCD 10 Speed Trigger
Crankset:  Lasco 170mm Crankarms, 46t Chainring
Bottom Bracket:  Bosch
Cassette / Cog:  MicroSHIFT 10 Speed 11-36t
Front Hub:  TerraTrike Disc
Rear Hub:  TerraTrikeQuick Release
Front Tire:  Schwalbe Marathon 20 x 1.75" (47-406)
Rear Tire:  Schwalbe Marathon 24 x 1.75" (47-507)
Tube Type:  Presta (standard)
Chain:  KMC 10 Speed
Headset:  FSA
Steering:  Direct
Last Update:  Oct 2021

Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.
