Azub Ti-Fly X Bosch Performance CX Rohloff E14 Neon Yellow Recumbent Trike With Dual 800 Wh Battery

Cutting-edge technology meets stunning shape and excellent riding properties.  The AZUB Ti-Fly is the one!  With a wide range of gearing and extreme compact folding, the Ti-Fly can take you anywhere your heart desires. Not only does the frame fold in half but the handlebars fold as well. Here is a video for reference: Folding the Azub Ti-Fly

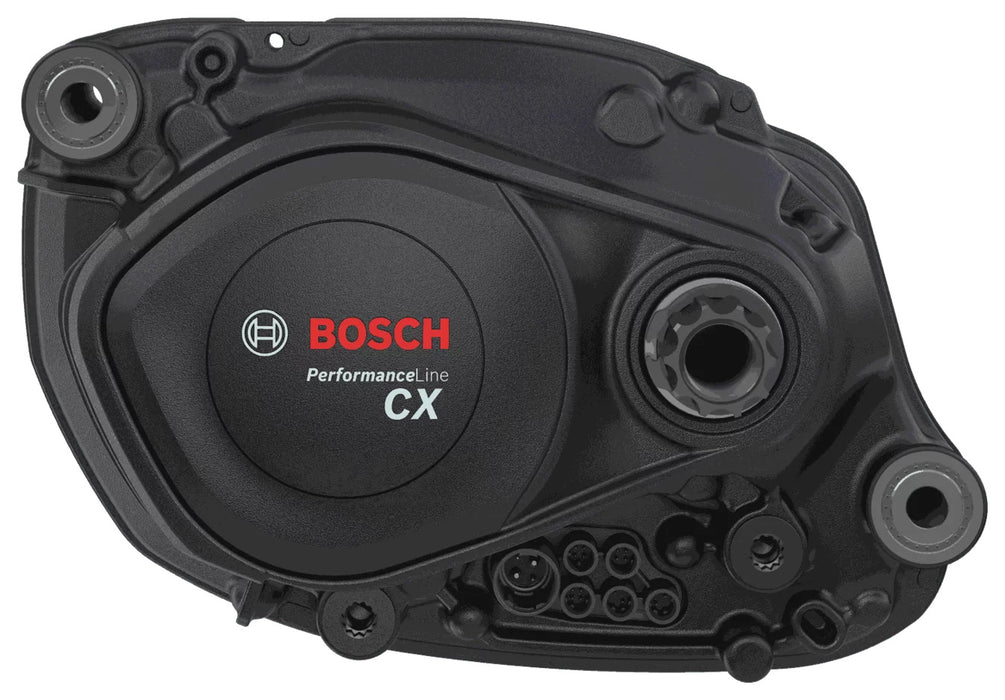

The Bosch Performance Line CX takes riding dynamics and agility to a new level. It is powerful, lightweight, and quiet.

Bosch Electric Assist:

• Bosch is the world’s best-known manufacturer of bike drives
• Performance CX is Bosch’s top model
• 250W nominal / 600W maximum power
• 85 Nm Torque
• Large-capacity 800 Wh battery is standard
• Dual Battery System by Bosch allowing for 1600Wh and 200 mile range on ECO Mode
• Rohloff E-14 14-speed internal hub with electronic push-button shifting
• Purion 200 color display mounted on the handlebars
• Bosch’s latest Smart System - Bluetooth pairing with smartphone for lots of useful functions
• Practical Range Control and Hill Start functions

Ti-Fly Features:

• Grade 5 aerospace titanium front suspension with 40mm travel
• Ergonomic Dream Seat - Designed with the human back in mind, this seat will keep riders super comfortable and helps prevent slipping
• Ergonomic mounting of the shifters and brake levers gives the ability to brake and change gears at the same time
• IPS- Ideal Position System allows riders to be seated comfortably at the angle of their choice
• Low maintenance
• Self stabilization

Included Accessories:

• Ergonomic Dream Seat - Designed with the human back in mind, this seat will keep riders super comfortable and helps prevent slipping
• Dual batteries (two 800 Wh batteries)
• Bosch Electronic Push-button Shifting
• Azub Head Rest
• Son Edelux front light and B&M TopLight rear light (both run off of main battery power)
• Mid Size Carrier (luggage rack)
• Flag

Sizing Notes:

• This trike fits x-seams from 37 - 49"
• Riders should call us with their height, weight and X-seam for sizing assistance.
• To find how to measure x-seam, go to our Help Guides.
• Modifications may be needed for shorter or taller riders.
• If you are near either end of the stated X-seam range, please contact us about fitting.
• Rider weight Limit 275 lbs

Specifications:

Recumbent Tricycle Name: Azub Ti-Fly X Bosch CX Rohloff Neon Yellow
Electric Assist: Bosch Performance CX with dual 800 Wh Batteries
Parking Brake: Yes, rear disc brake
Rear Suspension: Fox Evol Air Shock
Front Suspension: Titanium suspension 40mm travel
Folding: Yes
Weight Limit:  275 lbs
Manufacturer’s X-seam Range: 37 - 49"
Total Weight: 88 lbs
Seat Height: 15"
Overall Length: 80"- 89"
Overall Width:  36"
Overall Height: 38" - 42" (with Head Rest)
Folded Length:  49"
Folded Width:  37"
Folded Height: 27"
BB Height: 21 - 24"
Seat Angle:  34 – 52 degrees
Seat Type & Size:  Ergonomic Dream Seat
Wheelbase:  49"
Pedals:  N/A
Gear Range:  15 - 80 Gear Inches
Brakes:  Shimano Cues disc
Brake Levers:  Shimano Cues
Rear Derailleur: Rohloff chain tensioner
Front Derailleur:  N/A
Shift Levers:  Rohloff electronic push-button shifting
Crankset:  Samox 38t, 150mm Crankarms
Bottom Bracket:  Bosch
Cassette / Cog:  Rohloff
Front Hub:  Bitex Disc Hub
Rear Hub:  Rohloff Speedhub 14-speed internal hub
Front Tire:  Continental Double Fighter 26 x 1.9 (50-406mm)
Rear Tire:  Continental Double Fighter 26 x 1.9 (50-406mm)
Tube Type:  Schrader
Chain:  KMC
Headset:  Azub
Steering:  Indirect
Last Update:  May 2025
