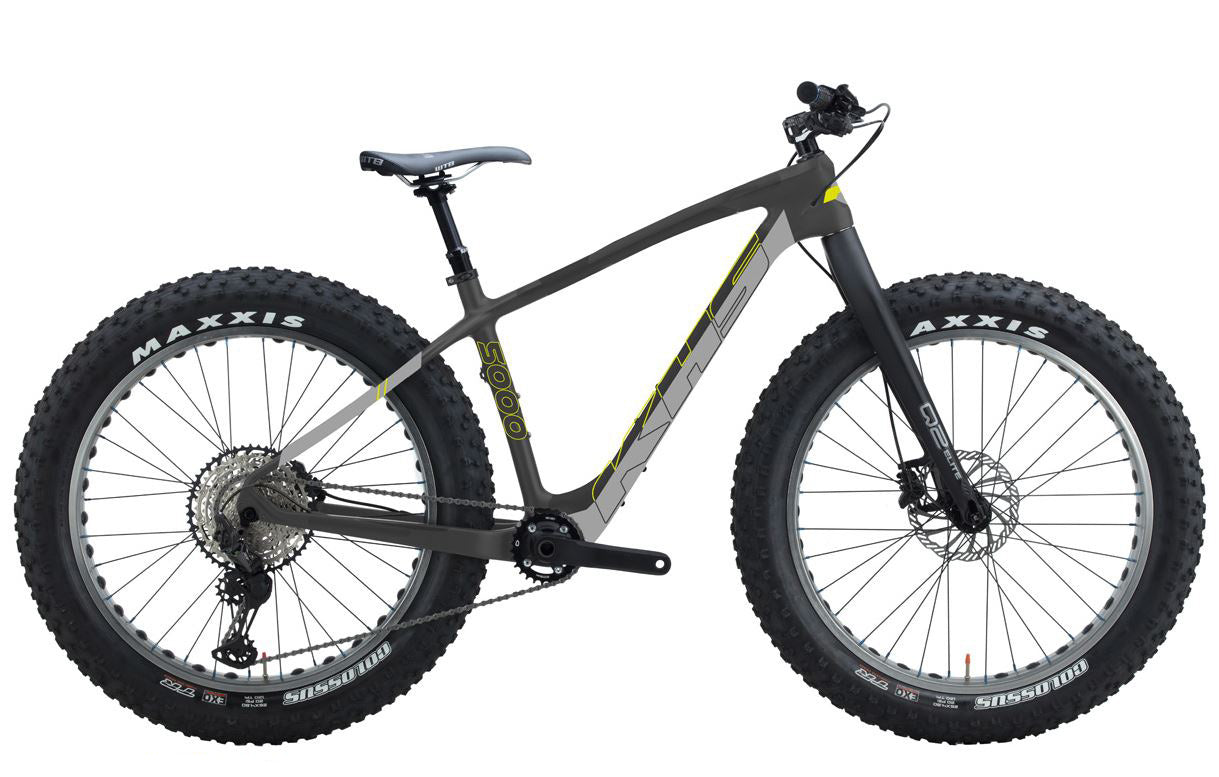

KHS 4 Season 5000 Fat Bike with Carbon Fork Dark Grey

KHS 4 Season 5000 Fat Bike with Carbon Fork Dark Grey

210000012922

$2,227.30 USD
$3,039.00 USD $2,227.30 USD
Sale Sold out
Shipping calculated at checkout.

Fat bikes feature ultra-wide tires that allow riders to take on snow, sand, rocks, trails, and just about any other obstacle. There is no season they can’t ride in. They are easy to pedal, lighter than you’d expect, and just plain fun to take out and ride.

The KHS 4 SEASON 5000 features a KHS High Modulus MSD Full Carbon Frame, with a 1.5" Tapered Head Tube.  Also featured are a Replaceable Derailleur Hanger (12x197mm), and Internal Cable Routing for a practical and clean look.

The Fork is a High Modulus Full Carbon Fiber Straight Blade Fork, paired with an Aluminum Alloy Tubeless-Ready (90mm) Wheelset with 15mm (front) and 12x197mm (rear) Thru-Axles, and rounded out with a set of Maxxis Colossus 26 x 4.8" 120 TPI travel-the-world Tires.

Providing the go-juice is a Shimano XT 10-51t 12-Speed Drivetrain coupled with an FSA Comet 2-piece MegaExo Crankset and 30t Mega Tooth Chainring.  Stopping power is handled by Shimano MT420 4-Piston Hydraulic Disc Brakes with 180/160mm Rotors, and Shimano I-Spec EV Brake Levers.

Stay on the level with the Kind Shock Rage-i Integra w/Remote Travel Adjust Dropper Post, and WTB Volt Medium SL Saddle.

Visit KHS Bicycles for complete specifications.

2 in stock

Size

Have a question about this product?

View full details
Description
Features
Specifications

Fat bikes feature ultra-wide tires that allow riders to take on snow, sand, rocks, trails, and just about any other obstacle. There is no season they can’t ride in. They are easy to pedal, lighter than you’d expect, and just plain fun to take out and ride.

The KHS 4 SEASON 5000 features a KHS High Modulus MSD Full Carbon Frame, with a 1.5" Tapered Head Tube.  Also featured are a Replaceable Derailleur Hanger (12x197mm), and Internal Cable Routing for a practical and clean look.

The Fork is a High Modulus Full Carbon Fiber Straight Blade Fork, paired with an Aluminum Alloy Tubeless-Ready (90mm) Wheelset with 15mm (front) and 12x197mm (rear) Thru-Axles, and rounded out with a set of Maxxis Colossus 26 x 4.8" 120 TPI travel-the-world Tires.

Providing the go-juice is a Shimano XT 10-51t 12-Speed Drivetrain coupled with an FSA Comet 2-piece MegaExo Crankset and 30t Mega Tooth Chainring.  Stopping power is handled by Shimano MT420 4-Piston Hydraulic Disc Brakes with 180/160mm Rotors, and Shimano I-Spec EV Brake Levers.

Stay on the level with the Kind Shock Rage-i Integra w/Remote Travel Adjust Dropper Post, and WTB Volt Medium SL Saddle.

Frame: KHS High Modulus MSD Full Carbon w/1.5 Taper Headtube, Disc Only, Internal Cable Routing

Rear Shock: n/a

Fork: High Modulus Full Carbon Straight Blade, w/1.5 Taper 15QR, or Manitou Mastodon Pro 100mm or Wren Fork Option

Headset: FSA Orbit 1.5E, Zero Stack, 1-1/8”~1.5

Rims: Aluminum 90mm w/Rectangular holes, Tubeless-Ready, 26x32H

Hubs, Front: Aluminum Disc, Full CNC, Sealed Bearing, 15mm Thru-Axle

Hubs, Rear: Powerway Aluminum Disc, Forged, Sealed Bearing, Cassette, 12x197mm Thru-Axle

Tires: Maxxis Colossus, 26 x 4.8”, 120TPI, Folding

Spokes: 14G Black Stainless, 32x32, w/Aluminum Nipples

Derailleur, Front: n/a

Derailleur, Rear: Shimano New XT, RD-M8100

Shifters: Shimano New XT, SL-M8100, 12s, Trigger, Right Only

Chain: Shimano CN-M7100

Crankset: FSA Comet 2-pc w/MegaExo, 30T Mega Tooth, S:170, M-L:175

BB: FSA MegaExo Outboard Cartridge Bearing

Cassette: Shimano CS-M7100, 10-51T, 12-Speed

Pedals: n/a

Seatpost: Kind Shock Rage-i, Integra w/Remote, Travel Adjust

Saddle: WTB Volt Medium SL

Handlebar: FSA Grid 35mm, 760mm x 20mm

Stem: FSA Grid 3D Forged

Grips: Q2 Lock-on

Brake Levers: Shimano M4100, I-Spec EV

Brakes: Shimano MT420, 4-Piston Hydraulic Disc, 180/160mm Rotors, Wave 12
