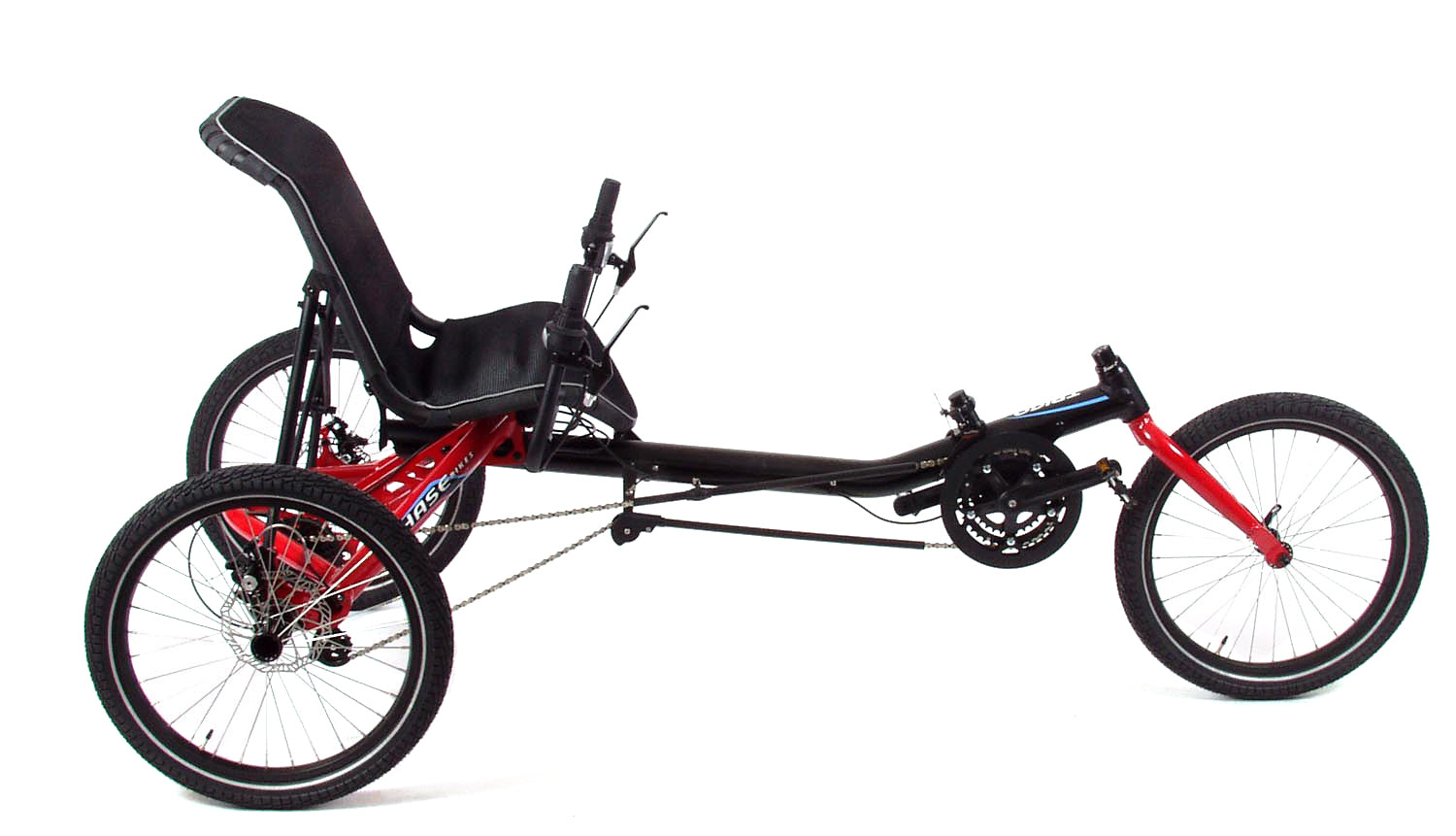

Hase Trigo USS 24 Speed w/Chainguard Red Recumbent Trike

SKU 210000000316
Sold out
Original price $2,892.00 - Original price $2,892.00
Original price $2,892.00
$2,892.00 - $2,892.00
Current price $2,892.00

Recumbent plus delta trike = safety, stability, and agility all rolled into FUN.
Like its KETTWIESEL cousin, the TRIGO has a low seat between its rear wheels for extreme stability, and a single wheel in front for outstanding agility. In short: the perfect recumbent trike for confident cornering. If you’re so inclined. With 24 gears, you can also enjoy speeding down the straightaway. Or downhill. Or uphill. Or anywhere the road takes you.

Guide rails along the boom mean lightning-fast adjustments.
“Can I try?” On the TRIGO, you’ll hear this question a lot, and it’s a great chance to show off the trike’s flexibility. The seat modules of the delta trike move along guide rails and are infinitely adjustable without tools. As a result, the recumbent TRIGO can be quickly adjusted to a new rider. Provided that the rider is between 4’7” (1.40 m) and 6’7” (2 m) in height. And provided that you’re willing to share.  For the length adjustment, all you have to do is open a lever and slide the seat into the appropriate position. No need for tools and no need to shorten or lengthen the chain!

The TRIGO even has adjustable handlebars: both the angle and width are adjustable, ensuring that every rider can enjoy the perfect hand position for steering, grip-shifting, and braking. And last but not least, the seat tilt can be set to your preferred position using a quick-release mechanism.

The extras: accessories for everyday use!
Once you’ve experienced how sporty you can be in a comfy, recumbent seat, you’ll be hooked. And if you plan on using the TRIGO for more than simply sports and fun, then be sure to check out the wide range of recumbent-trike accessories. For example, the ROLLER RACK, ROLLER BAG, and FOLDABLE FAIRING are all extremely practical for everyday use. The same applies to the SHIMANO STEPS mid-motor, which can be retrofitted to the TRIGO in a few simple steps!


Recumbent Tricycle Name: Trigo USS 24-speed

X-Seam Range: 34" to 49"
Electric Assist: no
Parking Brake: yes
Rear Suspension: none
Front Suspension: none
Folding: no
Weight Limit:  309 lbs
Manufacturer’s X-seam Range:  34 - 49" *
Total Weight:  47.4 lbs
Seat Height:  23"
Overall Length:  70.5 - 82"
Overall Width:  32"
Overall Height:  38"
Folded Length:  N/A
Folded Width:  N/A
Folded Height:  N/A
BB Height:  12.5"
Seat Angle:  38 - 46 degrees
Seat Type & Size:  Mesh (Hase standard)
Wheelbase: 50 - 63"
Pedals:  Platforms
Gear Range:  17 - 86"
Brakes:  Mechanical Disc
Brake Levers:  Promax
Rear Derailleur:  Shimano Altus 8 speed
Front Derailleur:  Shimano Tourney
Shift Levers:  MicroSHIIFT Twist Shifter
Crankset:  155mm Crankarms 30, 39, 50t Chainrings
Bottom Bracket:  Square Taper
Cassette / Cog:  8 speed 11-34t
Front Hub:  Quick Release Alloy
Rear Hub:  Hase Quickstick Disc
Front Tire:  Kenda Kontact 20 x 2.25" (58 - 406)
Rear Tire:  Kenda Kontact 20 x 2.25" (58 - 406)
Tube Type:  Presta (standard)
Chain:  KMC 8-speed
Headset:  Integrated
Steering:  Indirect
Last Update:  Aug 2022

 Notes: Riders should call us with their height, weight and X-seam for sizing assistance. Modifications may be needed for shorter or taller riders. For detailed X-seam measuring instructions go to Recumbent Sizing.
