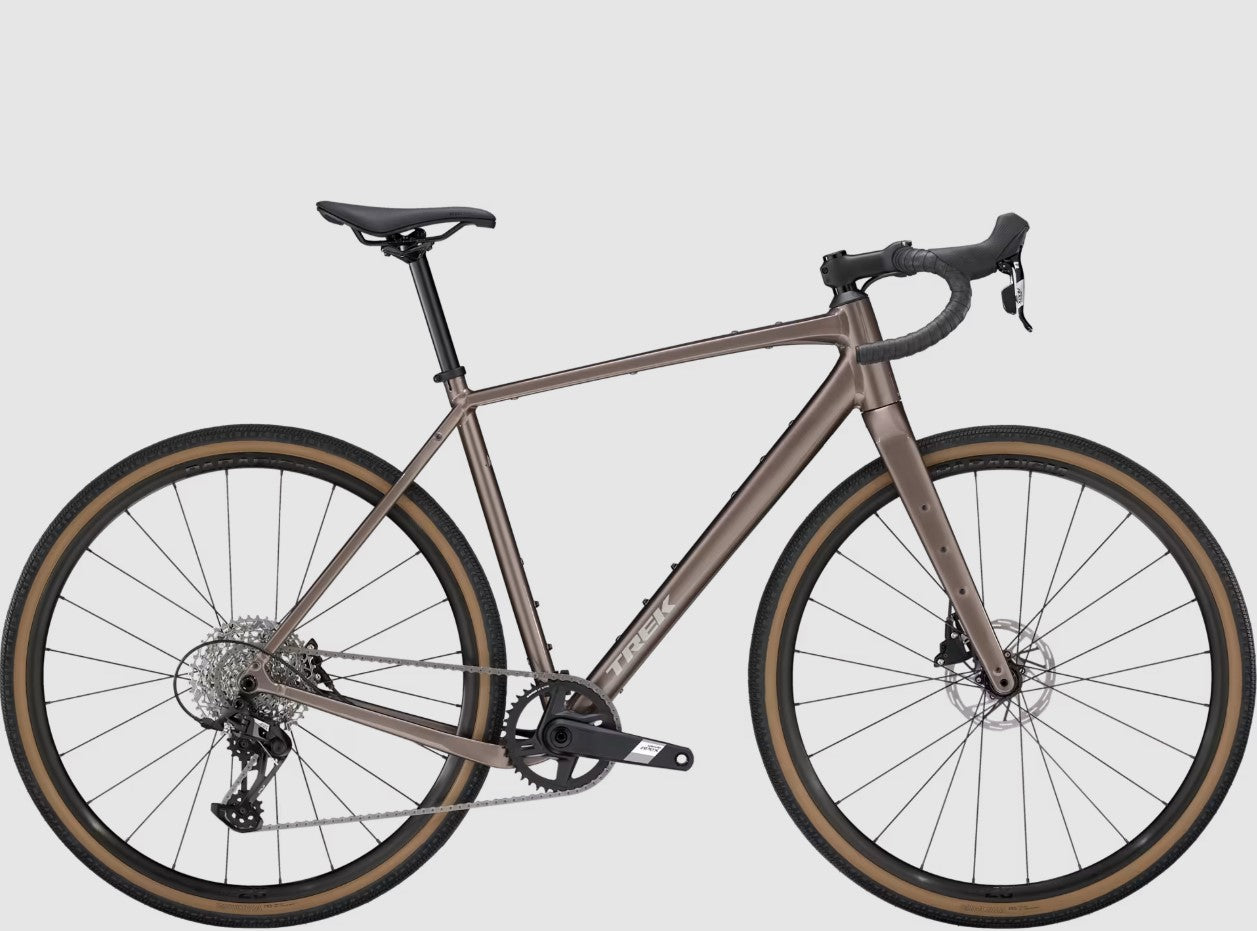

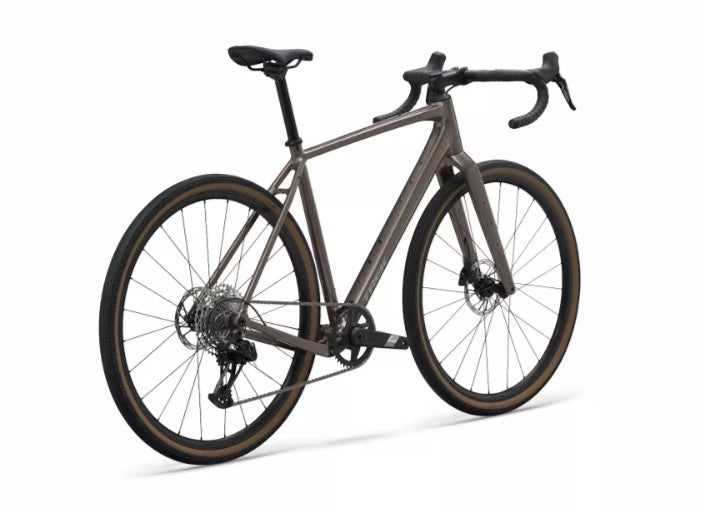

Trek Checkpoint ALR 5 Bronze Age

SKU:210000020213

$2,299.99 USD

~~$2,299.99 USD~~ $2,299.99 USD

Sale Sold out

Shipping calculated at checkout.

Checkpoint ALR 5 is an aluminum gravel bike built for venturing anywhere. It pairs modern endurance geometry with a carbon fork for road-smoothing comfort, while 50mm of tire clearance gives you room for tons of grip.

Size MD ML LG

Low stock: 1 left

Quantity

Pre-Order Cancellation Policy

Have a question about this product?

View full details

Description

Features

The Trek Checkpoint ALR 5 comes equipped with SRAM Apex XPLR 12-speed shifting, hydraulic disc brakes, Tubeless Ready Bontrager Paradigm wheels, and tons of mounts for bags and gear.

Mounts Galore
Gravel Endurance Geometry
Big 'ol Tire Clearance
Suspension Fork and Dropper Post Compatible

Specifications
Bike Name	Trek Checkpoint ALR 5
Electric Assist
Electric Assist	No
Frameset
Frame	300 Series Alpha Aluminum
Fork	Full Carbon
Rear Shock	None

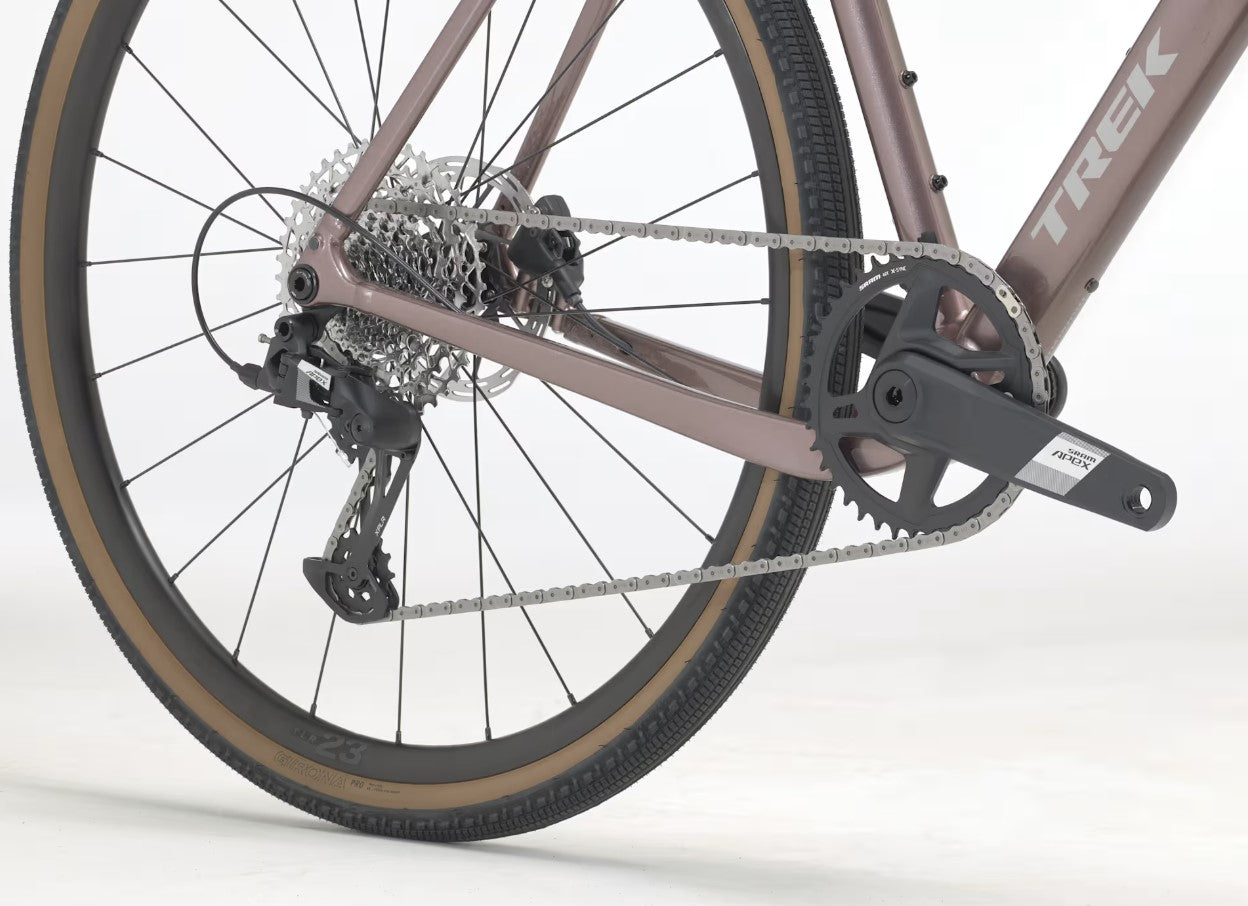

Drivetrain
Shift Levers	SRAM Apex, 12 speed
Crankset	SRAM Apex 1
Bottom Bracket	SRAM DUB Wide, T47 threaded, internal bearing
Front Derailleur	None
Rear Derailleur	SRAM Apex XPLR, 44T max cog
Cassette or Cog	SRAM XPLR PG-1231, 11-44, 12 speed
Chain	SRAM Apex, 12 speed
Brakes
Front Brake	SRAM Apex D1 hydraulic disc, flat mount
Rear Brake	SRAM Apex D1 hydraulic disc, flat mount
Rotors	SRAM Paceline, rounded, centerlock, 160mm
Brake Levers	SRAM Apex, 12 speed
Wheels and Tires
Front Tire	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Front Hub	Bontrager alloy, sealed bearing, centerlock disc
Front Axle	100x12mm thru axle
Front Rim	Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width
Rear Tire	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Rear Hub	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub
Rear Axle	142x12mm thru axle
Rear Rim	Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width
Spokes	14g stainless steel, black
Tube Type	Presta
Cockpit
Saddle	Verse Short Comp, steel rails, 145mm width
Seatpost	Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Handlebars	Bontrager Elite Gravel Alloy
Grips/Bar Tape	Bontrager Supertack Perf tape
Stem	Bontrager Elite 31. mm Blendr Compatible 7 degree
Headset	Not Listed
Pedals	None
