| Frameset |
|
Alpha Platinum Aluminum, tapered head tube, internal routing
|
|

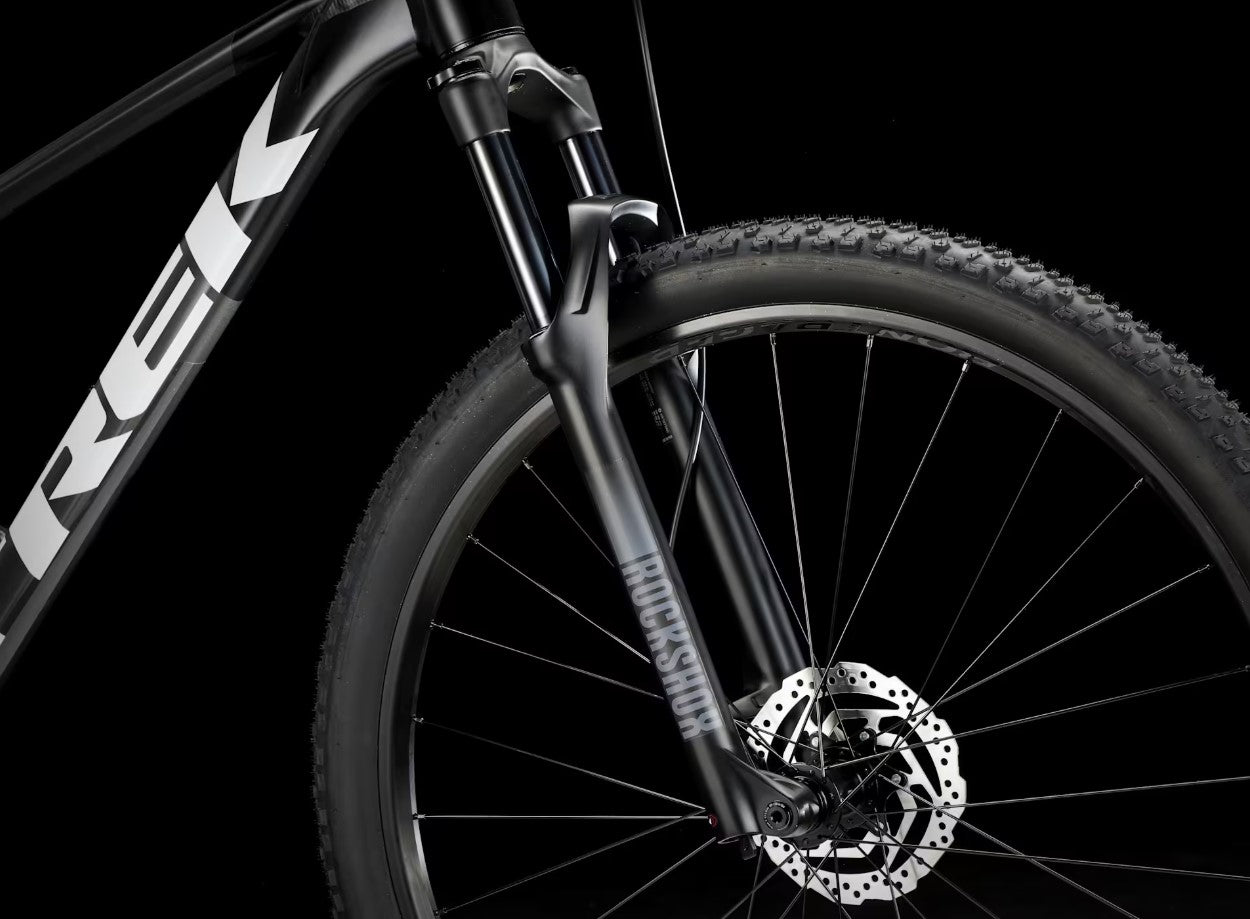

RockShox Judy Silver, Solo Air spring, TurnKey lockout
|
|
None
|
| Drivetrain |
|
Shimano Deore M6100, 12 speed
|
|
Shimano MT512, 30T ring, 55mm chainline
|
|
Shimano BB-MT501 BSA
|
|
None
|
|

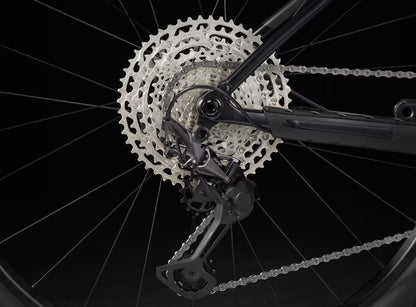

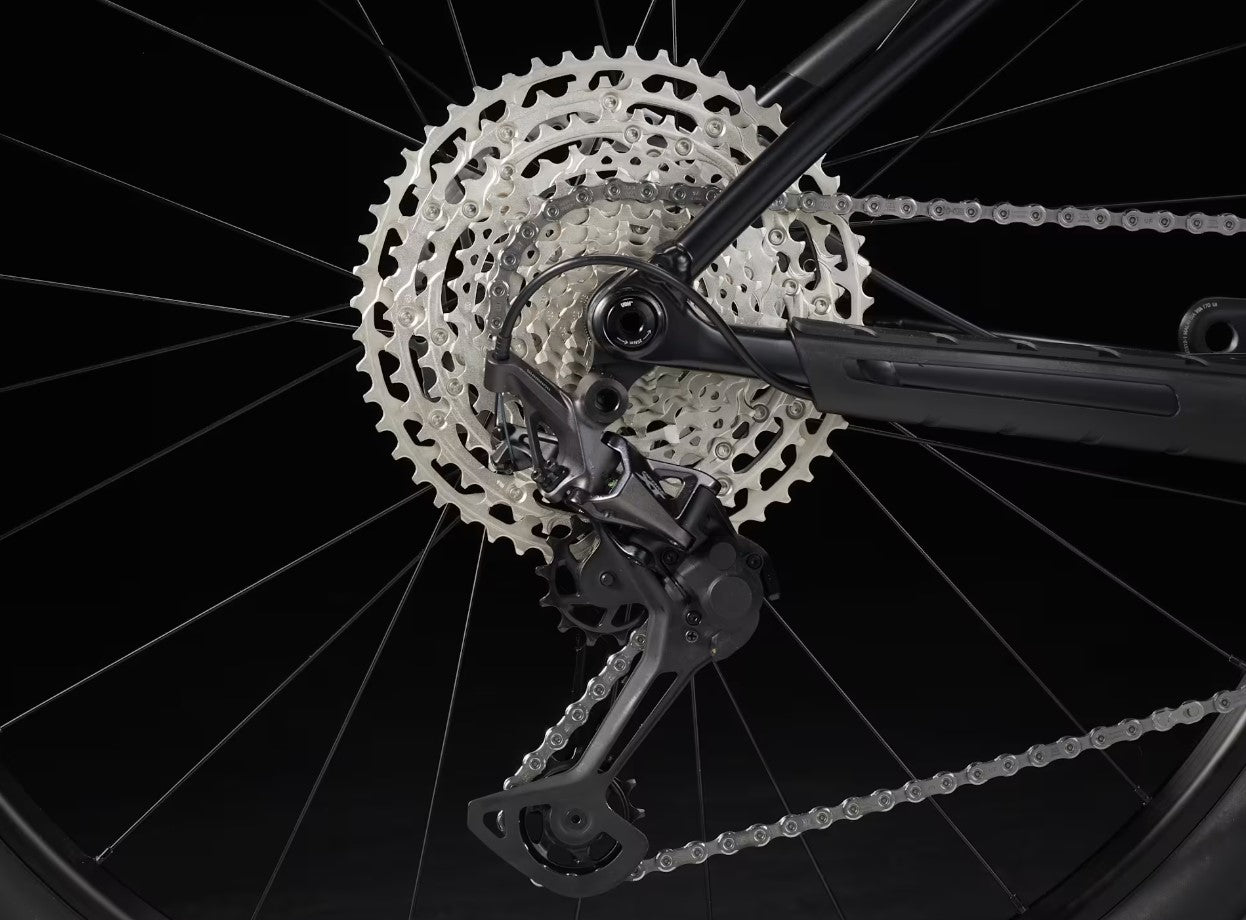

Shimano XT M8100, long cage
|
|
Shimano Deore M6100, 10-51, 12 speed
|
|
Shimano Deore M6100, 12 speed
|
| Brakes |
|
Shimano MT200 hydraulic disc
|
|
Shimano MT200 hydraulic disc
|
|
Shimano RT10, centerlock, 160mm front, 180mm rear
|
|
Not listed
|
| Wheels and Tires |
|
Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40'' OR Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20''
|
|
Shimano TC500 alloy, centerlock
|
|
110x15mm thru axle
|
|
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
|
|
Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40'' OR Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20''
|
|
Shimano TC500 alloy, centerlock
|
|
148x12mm thru axle
|
|
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
|
|
Not listed
|
|
Presta valve, tubeless ready
|
| Cockpit |
|
Verse Short, steel rails, 145mm width
|
|
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length
|
|

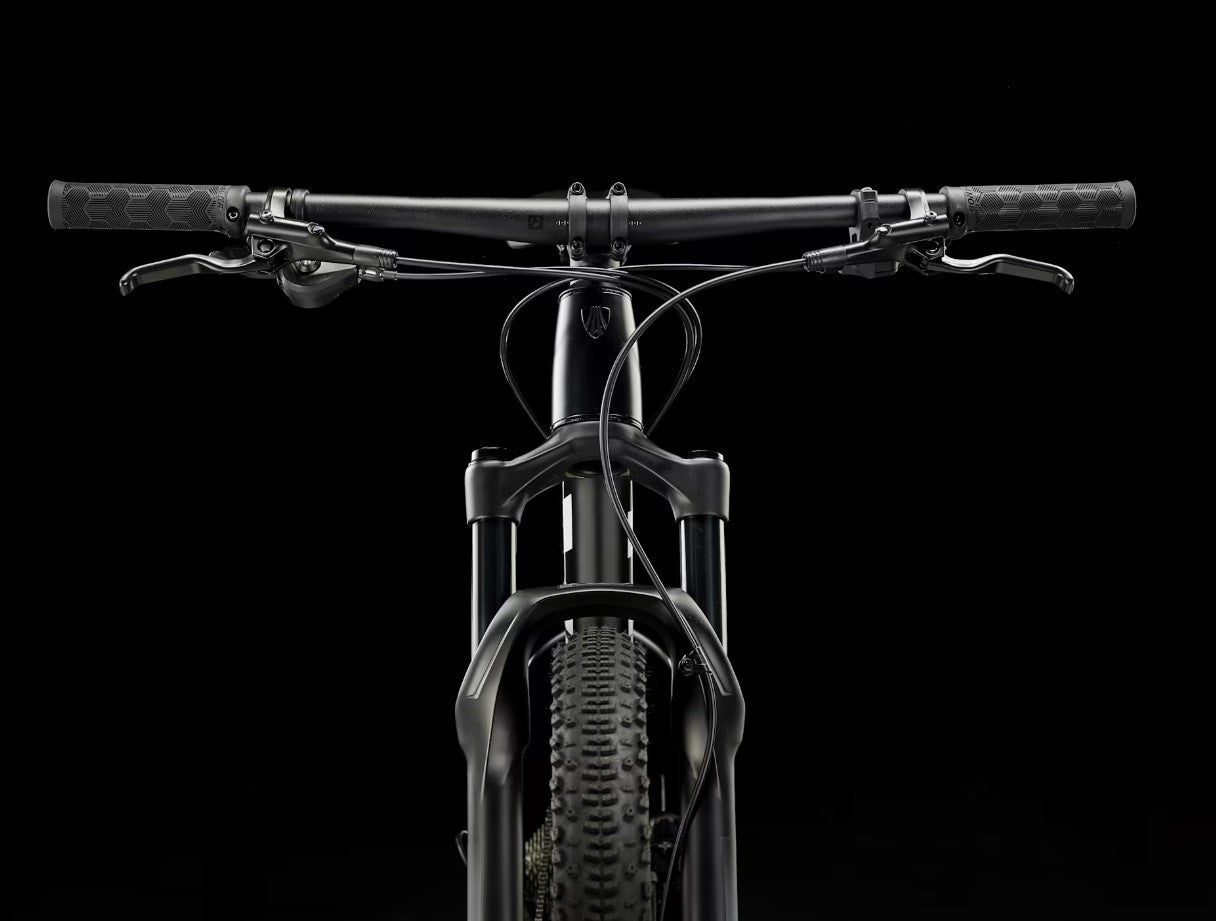

Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width
|
|
Bontrager XR Trail Comp, nylon lock-on
|
|
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree
|
|
Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom
|
|
VP-536 nylon platform
|
| Weights |
|
M - 13.56 kg / 29.9 lbs (with TLR sealant, no tubes)
|
|
his bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
|
